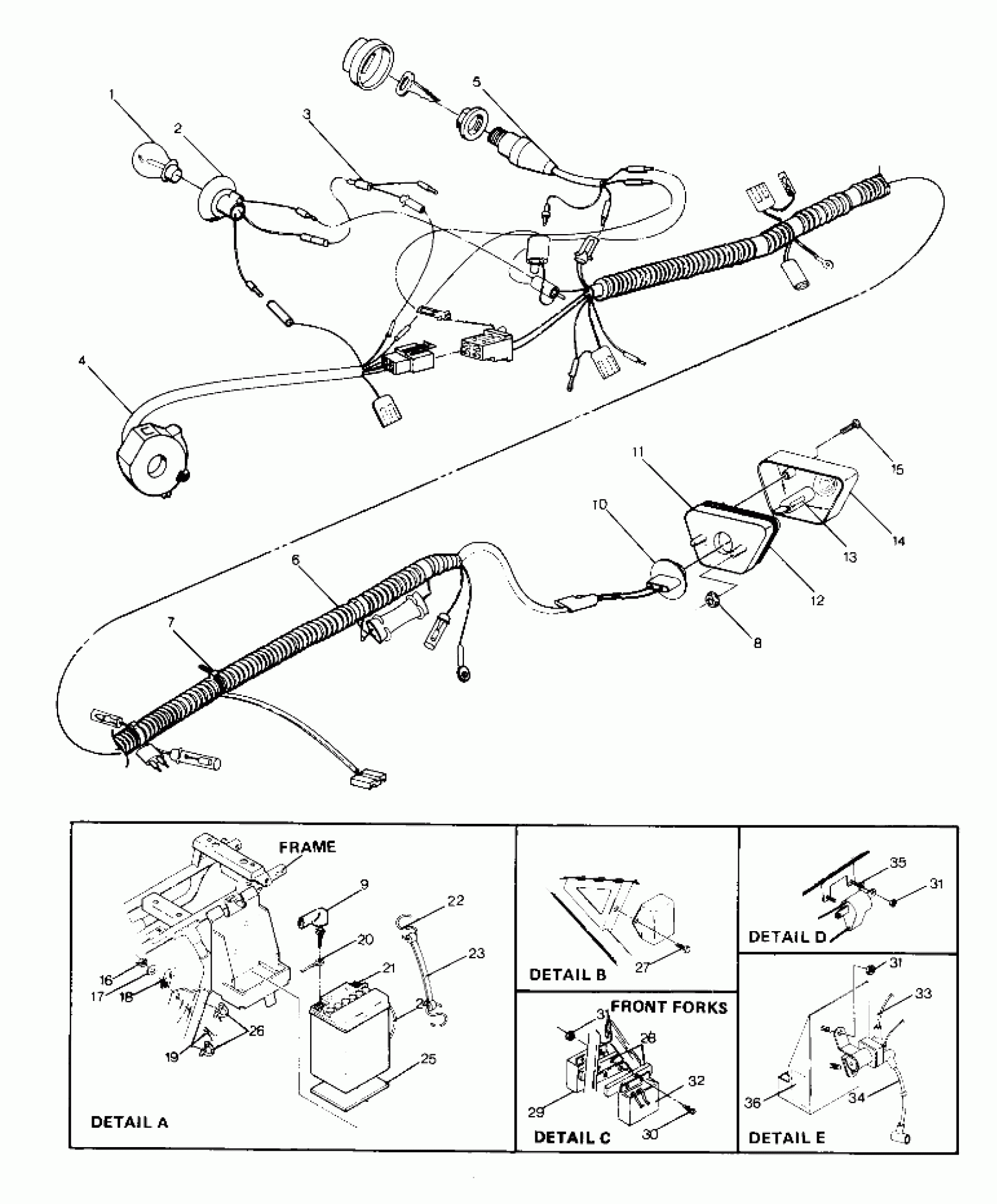

Polaris TRAIL BOSS - W877527 Wire Harness (4913491349027A) Diagram

#

Description
Price

1

BULB, HEADLIGHT

4032007

Unavailable

2

SOCKET CORD ASM.

4032011

Unavailable

3

HARNESS,HI-BEAM INDIC.

2460248

Unavailable

4

SWITCH,HI-LO/START

4110063

Unavailable

5

SWITCH,IGNITION,MODIFIED

4110065

Unavailable

6

HARNESS,MAIN WIRE

2460250

Unavailable

7

STRAP, BLK

7080272

Unavailable

8

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

9

INSULATOR-CABLE

5410346

$6.39

10

SOCKET,TAILLIGHT ASM.

4032033

Unavailable

11

BACKING,TAILLIGHT

4032036

Unavailable

12

GASKET,TAILLIGHT

4032031

Unavailable

13

BULB,TAILLIGHT,(10)

4030040

$8.79

14

LENS, TAILLIGHT Substituted by 4032046

4032030

Unavailable

15

Screw, Taillight

4032029

$4.79

16

NUT-LOCK(10)

7542439

$1.49

17

WASHER(10) Substituted by 7555806

7555720

$0.79

18

CLAMP, CABLE

7080326

Unavailable

19

BOLT(10) Substituted by 7512457

7512491

Unavailable

20

CABLE,BATTERY/ENGINE

4010066

Unavailable

21

Battery

4140006

$99.99

22

HOOK-BATT.H/D(10)

7010032

$1.59

23

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

24

FUEL LINE3/16ID-2FT. Substituted by 8450037-600

5521133

$79.99

25

PAD-BATTERY

5810290

$7.27

26

CLAMP, POLY

7080303

Unavailable

27

BOLT(10)

7512232

$1.49

28

HEAT SINK

5210650

Unavailable

29

REGULATOR/RECTIFIER

4060077

Unavailable

30

SCREW(10)

7512007

$3.99

31

NUT(10)

7541925

$1.49

31

NUT(10)

7541925

$1.49

31

NUT(10)

7541925

$1.49

32

REGULATOR,SPEED LIMIT.

4060079

$109.11

33

CABLE,BATTERY/SOLENOID *

4010065

Unavailable

34

CABLE,SOLENOID/STARTER *

4010064

Unavailable

35

WASHER(10)

7571602

$4.79

36

DECAL,BATTERY BOX [No Longer Available] *Cables include boots

7072245

Unavailable
