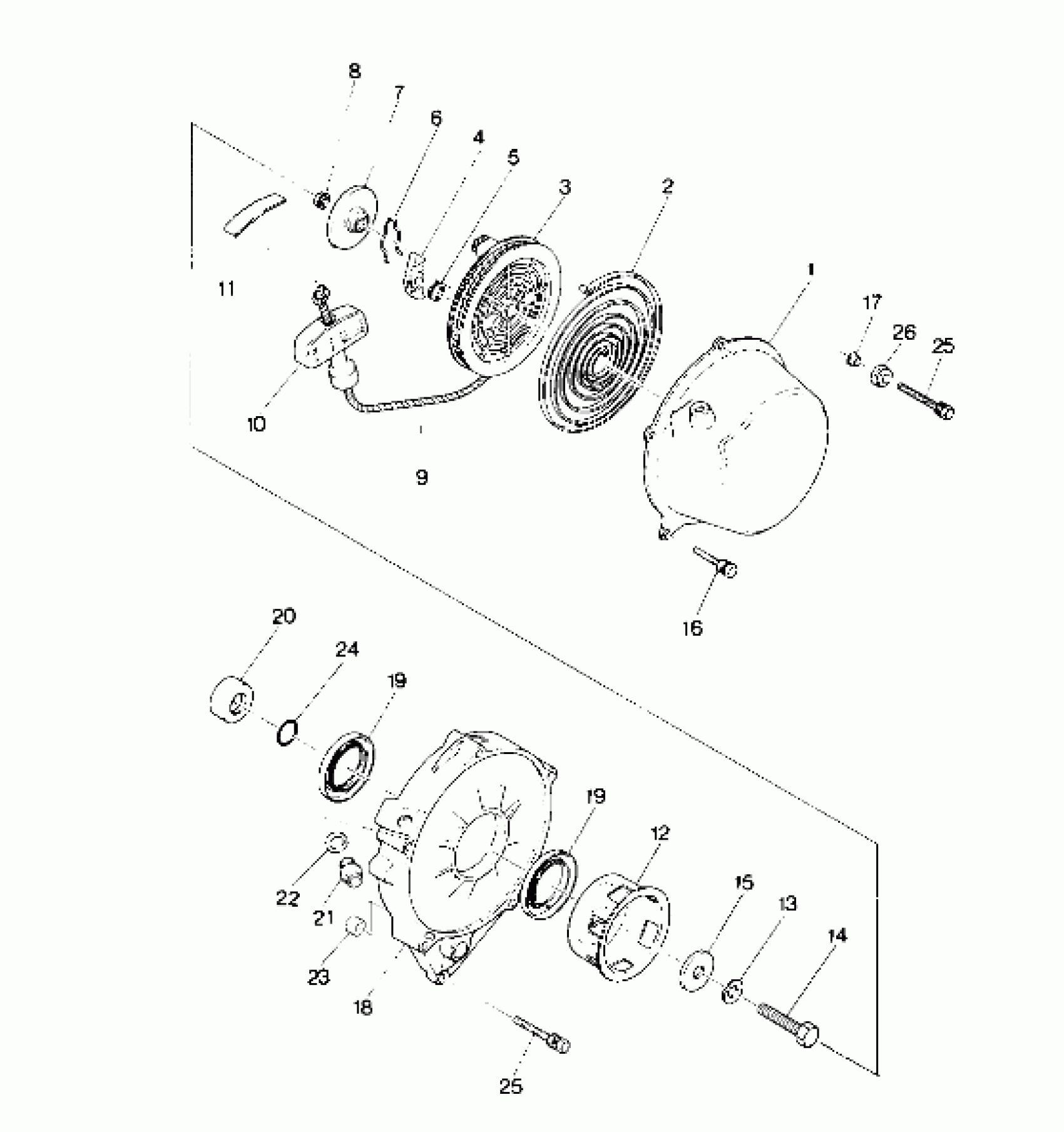

Polaris TRAIL BOSS - W877527 Recoil Starter Assembly (4913491349037A) Diagram

#

Description
Price

-

RECOIL STARTER Substituted by 3083924 (Incl. 1-11)

3083653

Unavailable

1

CASE, STARTER [No Longer Available]

3083654

Unavailable

2

Spring, Spiral

3083376

$179.11

3

REEL, REWIND

3083377

$56.65

4

Ratchet

3083378

$20.22

5

Spring, Return

3083463

$4.03

6

Spring, Friction

3083379

$24.27

7

Plate, Friction

3083464

$28.32

8

NUT, FLANGE ,(10)

3083381

$2.99

8

ROPE ASM. [Item NotAvailable] (Incl. 9-11)

3083657

Unavailable

9

ROPE, STARTER Substituted by 2870621

3083658

Unavailable

10

Knob, Starter

3083659

Unavailable

11

Cap, Knob

3083660

Unavailable

12

PULLEY, STARTING [No Longer Available]

3083661

Unavailable

13

WASHER, SPRING(10)

3080281

$0.79

14

BOLT

3083662

Unavailable

15

Washer

3083663

Unavailable

16

BOLT&WASHER ASSY.

3083664

Unavailable

17

COLLAR

3083732

Unavailable

18

HOUSING [No Longer Available] (Incl. 19, 23)(Magneto)

3083764

Unavailable

19

SEAL, OIL

3083742

Unavailable

19

SEAL, OIL

3083742

Unavailable

20

COLLAR

3083765

Unavailable

21

PLUG Substituted by 3086749

3083453

Unavailable

22

GASKET (Aluminum)

3082956

$4.84

23

BUSHING, STARTER (Starter)

3083669

Unavailable

24

O RING

3083744

Unavailable

25

BOLT&WASHER Substituted by 3083729

3083217

Unavailable

25

BOLT&WASHER Substituted by 3083729

3083217

Unavailable

26

MOUNTING,RUBBER

3083731

$4.95
