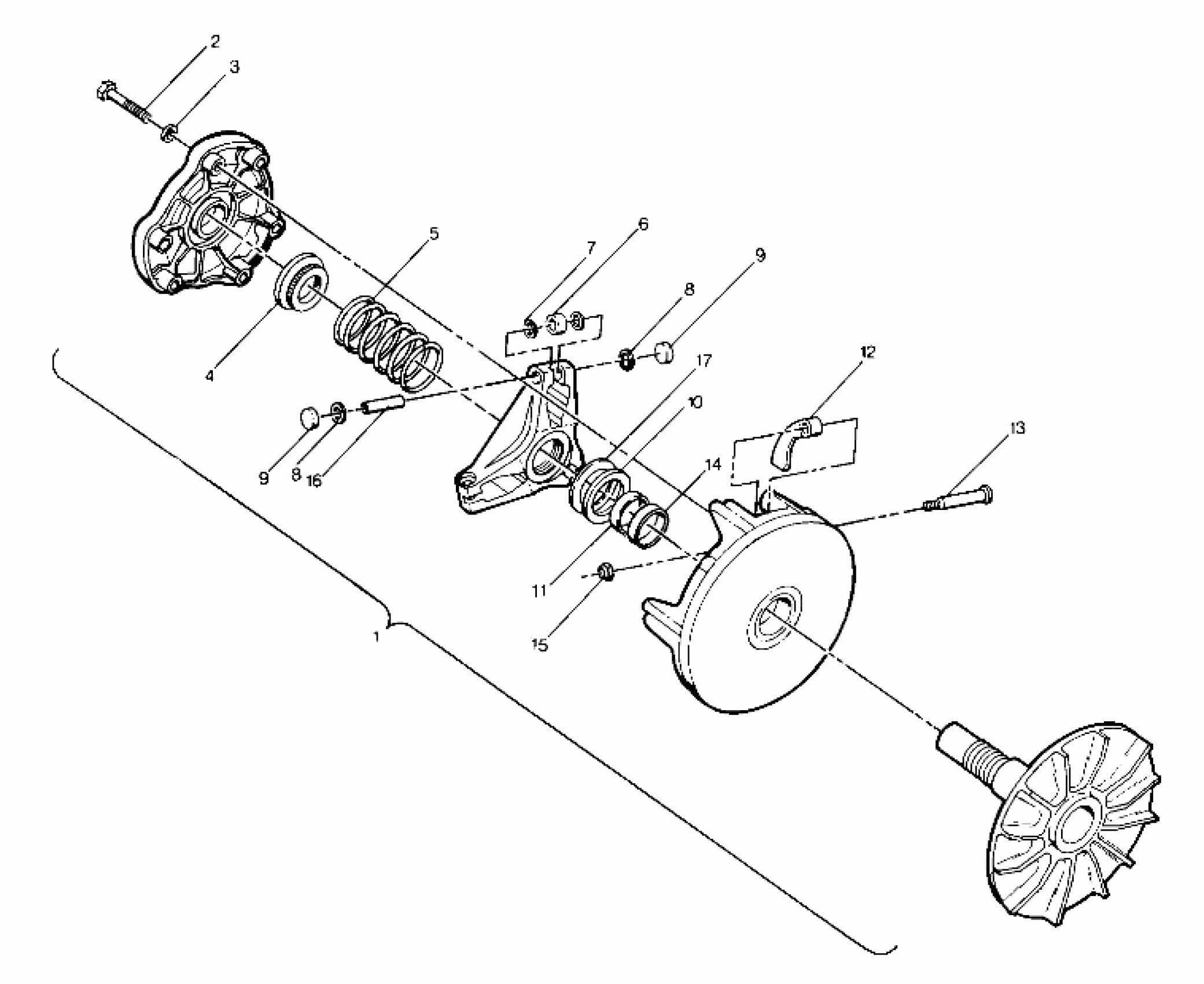

Polaris TRAIL BOSS - W877527 Drive Clutch Assembly (4913491349023A) Diagram

#

Description
Price

1

CLUTCH,DRIVE,ATV Substituted by 1321497

1321476

$697.13

2

BOLT,(10)

7512265

$3.99

3

LOCK WASHER(10)

7552801

$1.59

4

BUSHING,CLUTCH COVER

5010189

Unavailable

5

SPRING,CLUTCH

7041157

$47.99

6

ASM-ROLLER AND BUSHING

1321457

$40.46

7

WASHER Substituted by 5430945

5430702

Unavailable

8

SEAL, O RING,(10)

5410374

$1.83

8

SEAL, O RING,(10)

5410374

$1.83

9

BUTTON, GUIDE(10)

5430768

$10.39

9

BUTTON, GUIDE(10)

5430768

$10.39

10

SPACER(10)

5210754

$3.19

11

INSERT,MOVEABLE

5010218

$15.67

12

WT.,CLUTCH,16(6)

5630279

$31.99

13

BOLT,SPECIAL(10)

7512266

$3.19

14

BEARING, SLEEVE

5430748

Unavailable

15

NUT FLEX LOC(10)

7541906

$3.19

16

PIN, SPIDER Substituted by 5020795

5020436

$23.81

17

SPACER(10)

5210752

$1.59

17

TOOL,CLUTCH OFFSET [No Longer Available]

2870654

Unavailable
