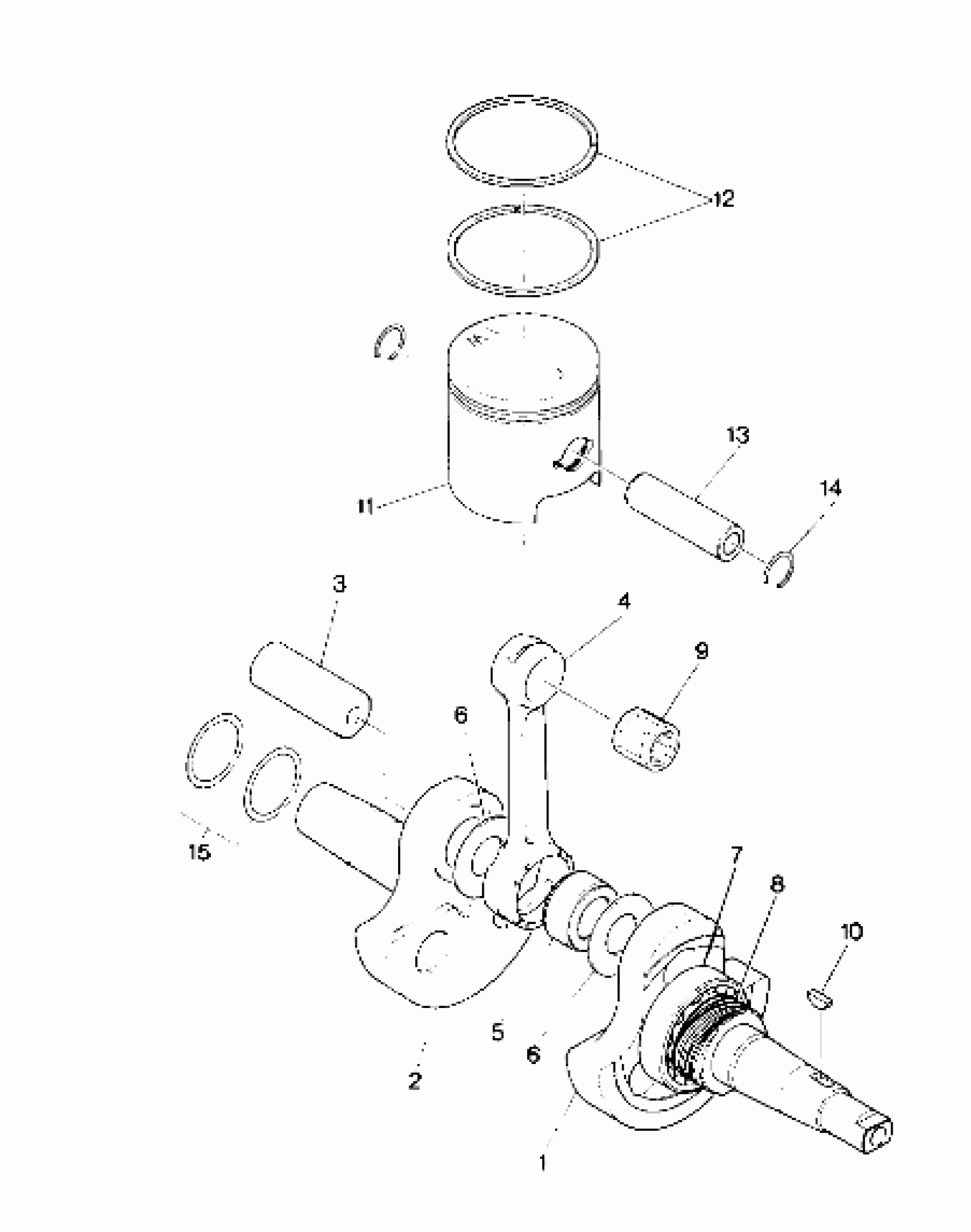

Polaris TRAIL BOSS - W877527 Crankshaft and Piston Assembly (4913491349032A) Diagram

#

Description
Price

-

CRANKSHAFT (Incl. 1-8)

3083799

Unavailable

1

CRANKSHAFT,#1 [No Longer Available]

3083801

Unavailable

2

CRANKSHAFT,#2

3083802

Unavailable

3

CRANK PIN PTO

3082796

$36.41

4

ROD CONNECTING

3082790

Unavailable

5

BEARING,LGE.END

3083803

Unavailable

6

Spacer

3083804

$19.99

6

Spacer

3083804

$19.99

7

BEARING,BALL

3083805

Unavailable

8

GEAR, CRANKSHAFT Substituted by 3083745

3083414

Unavailable

9

BEARING, SMALL END

3083626

Unavailable

10

KEY WOODRUFF

3081543

$12.94

11

PISTON, .010 Substituted by 3083943

3083677

Unavailable

11

PISTON, .020 Substituted by 3083944

3083679

Unavailable

11

PISTON Substituted by 3083942

3083771

Unavailable

12

RING, PISTON

3083546

Unavailable

12

RING,.010 O/S

3083678

Unavailable

12

RING, .020 Substituted by 3083717

3083680

$28.56

13

PIN, PISTON

3083512

$16.47

14

CLIP, PISTON PIN(10) Substituted by 3083839

3083628

Unavailable

15

SPACER #1

3083629

Unavailable

15

SPACER #3

3083630

Unavailable
