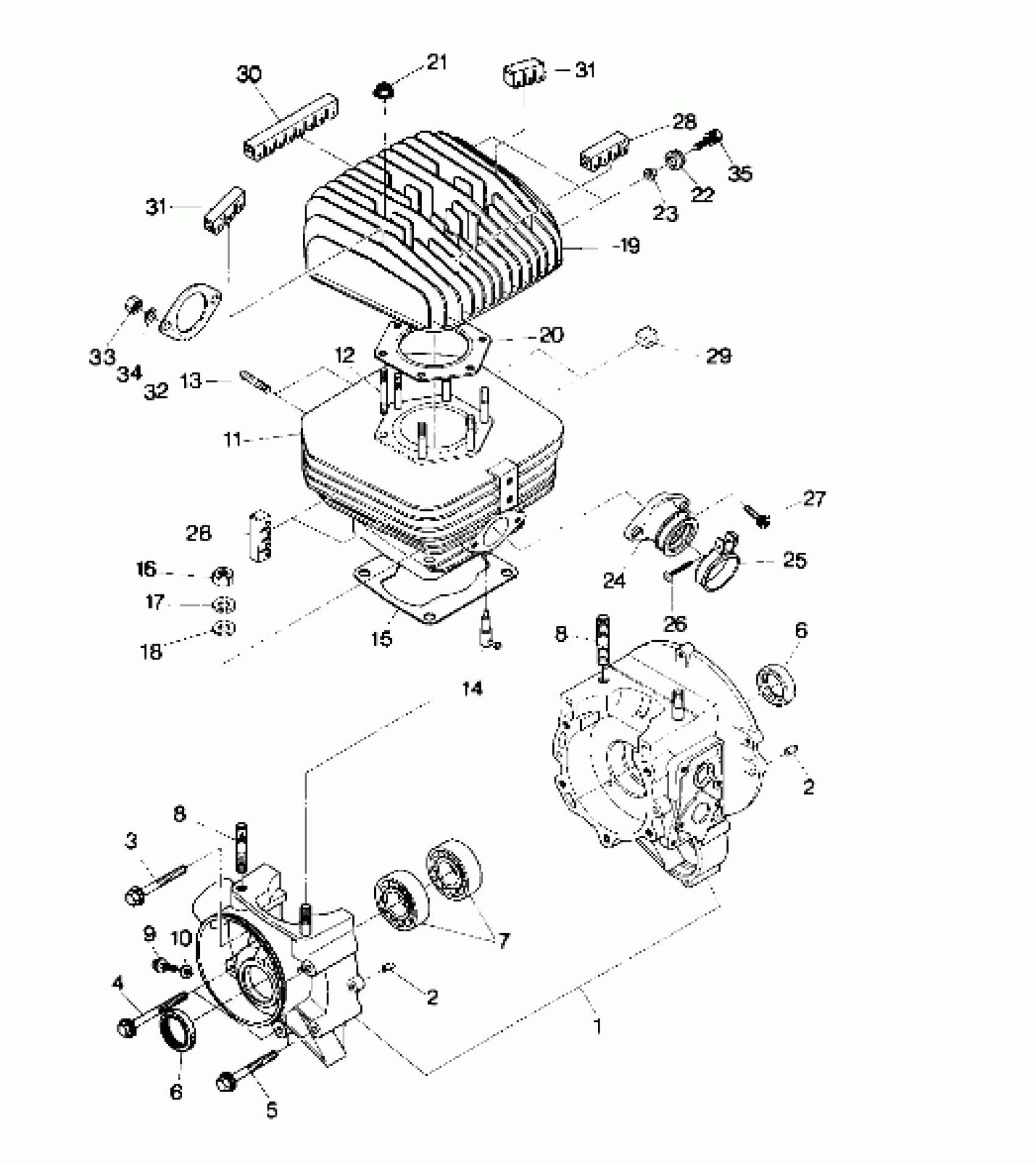

Polaris TRAIL BOSS - W877527 Crankcase and Cylinder Assembly (4913491349031A) Diagram

#

Description
Price

1

CRANKCASE (Incl. 2-10)

3083614

Unavailable

2

PIN, DOWEL Substituted by 3086838

3080103

$7.14

2

PIN, DOWEL Substituted by 3086838

3080103

$7.14

3

BOLT AND WASHER ASSY.

3082096

$1.49

4

BOLT&WASHER ASSY.

3083615

Unavailable

5

BOLT W/WASHER

3080739

$6.39

6

SEAL,OIL

3082162

$39.99

6

SEAL,OIL

3082162

$39.99

7

BEARING,BALL Substituted by 3083805

3080004

Unavailable

8

STUD Substituted by 3085713

3080746

Unavailable

8

STUD Substituted by 3085713

3080746

Unavailable

9

PLUG, DRAIN

3083767

Unavailable

10

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

11

CYLINDER Substituted by 3085541 (Incl. 12-14)

3083769

Unavailable

12

STUD

3083618

Unavailable

13

STUD (10)

3080016

$5.75

14

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

15

GASKET,CYLINDER

3083733

$40.46

16

NUT Substituted by 3082911

3080047

Unavailable

17

WASHER, SPRING(10)

3080281

$0.79

18

WASHER(10)

3080356

$2.99

19

HEAD, CYLINDER Substituted by 3086841

3083620

Unavailable

20

GASKET, HEAD

3083768

Unavailable

21

NUT-FLANGE(10)

3082910

$2.39

22

MOUNTING,RUBBER

3083731

$4.95

23

COLLAR

3083732

Unavailable

24

ADAPTER, CARB. Substituted by 3085013

3083412

$100.38

25

BAND-CARB MTG. (Incl. 26)

3082257

Unavailable

26

SCREW,(10)

3081497

$2.39

27

Bolt, Allen

3081330

$3.99

28

FIN DAMPER #1 Substituted by 3083929

3083621

Unavailable

28

FIN DAMPER #1 Substituted by 3083929

3083621

Unavailable

29

FIN DAMPER #2 Substituted by 3083930

3083622

Unavailable

30

FIN DAMPER #3 [No Longer Available]

3083623

Unavailable

31

FIN DAMPER #4 [No Longer Available]

3083624

Unavailable

31

FIN DAMPER #4 [No Longer Available]

3083624

Unavailable

32

GASKET, EXHAUST

3083770

Unavailable

33

NUT(10)

3080285

Unavailable

34

WASHER LOCK ,(10)

3080530

$3.19

35

BOLT&WASHER

3083730

$4.79
