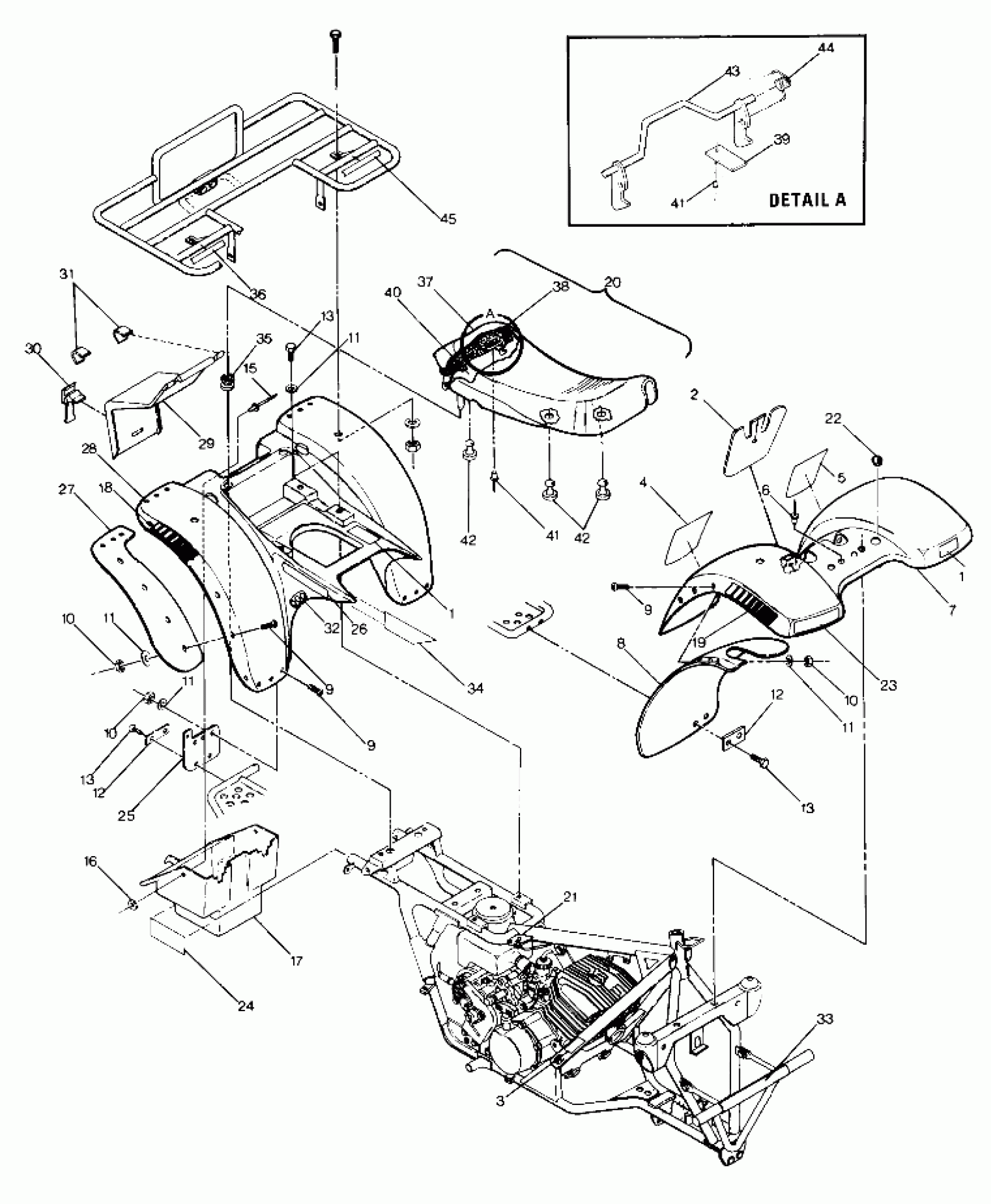

Polaris TRAIL BOSS - W877527 Body Assembly (4913491349001A) Diagram

#

Description
Price

1

DECAL,FILTER ELEMENT [No Longer Available]

7072403

Unavailable

1

DECAL,FILTER ELEMENT [No Longer Available]

7072403

Unavailable

2

FLAP,SPLASHGUARD

5850070

Unavailable

3

DECAL [No Longer Available]

7072238

Unavailable

4

DECAL,WARNING(ENG.) [No Longer Available] (English)

7072434

Unavailable

5

DECAL,WARNING(FR.) [No Longer Available] (French)

7072433

Unavailable

6

RIVET(50)

7621457

$1.49

7

CAB,FRONT,LT.BLUE Substituted by 5430990-107

5430835

Unavailable

8

MUDFLAP,FRONT,LH

5850071

Unavailable

8

MUDFLAP,FRONT,RH

5850072

Unavailable

9

BOLT, BLACK(10)

7512282

$1.49

9

BOLT, BLACK(10)

7512282

$1.49

9

BOLT, BLACK(10)

7512282

$1.49

10

NUT-LOCK(10)

7542122

$1.49

10

NUT-LOCK(10)

7542122

$1.49

10

NUT-LOCK(10)

7542122

$1.49

11

WASHER(10)

7558301

$1.49

11

WASHER(10)

7558301

$1.49

11

WASHER(10)

7558301

$1.49

11

WASHER(10)

7558301

$1.49

12

BRACKET,MUD FLAP Substituted by 5211020-067

5211020

Unavailable

12

BRACKET,MUD FLAP Substituted by 5211020-067

5211020

Unavailable

13

BOLT(10)

7512232

$1.49

13

BOLT(10)

7512232

$1.49

13

BOLT(10)

7512232

$1.49

15

RIVET(50)

7621462

$1.49

16

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

17

BOX,TOOL COMP.

5430882

Unavailable

18

DECAL,LH,R.FDR,STROBE [No Longer Available]

7072399

Unavailable

18

DECAL,RH,R.FDR,STROBE [No Longer Available]

7072401

Unavailable

19

DECAL,LH,F.FDR,STROBE [No Longer Available]

7072397

Unavailable

19

DECAL,RH,F.FDR,STROBE [No Longer Available]

7072398

Unavailable

20

SEAT ASM, (ATV) (Incl. 38-45)

2681240

Unavailable

21

STRAP, BLK

7080272

Unavailable

22

PLUG, RACK HOLE

5430887

$2.99

23

DECAL [No Longer Available]

7072287

Unavailable

24

TAPE, FOIL

5810310

Unavailable

25

FLAP,MUD,LH REAR

5850062

Unavailable

25

FLAP,MUD,RH REAR

5850066

Unavailable

26

DECAL,LH,TRAIL BOSS [No Longer Available]

7072394

Unavailable

26

DECAL,RH,TRAIL BOSS [No Longer Available]

7072395

Unavailable

27

FLAP,MUD,LH REAR

5850060

Unavailable

27

FLAP,MUD,RH REAR

5850061

Unavailable

28

CAB,REAR,LT.BLUE Substituted by 5430991-107

5430837

Unavailable

29

LID, TOOL BOX Substituted by 5430769-1013

5430909

Unavailable

30

STRAP,TOOL COMPARTMENT

5410425

Unavailable

31

CLIP, LID HINGE(10)

7670050

Unavailable

32

DECAL,SHIFT,BLUE [No Longer Available]

7072315

Unavailable

33

DECAL,FR.SUSP. [No Longer Available]

7072393

Unavailable

34

TAPE, FOIL

5810349

Unavailable

35

GROMMET

5410413

Unavailable

36

DECAL [No Longer Available]

7072237

Unavailable

37

COVER,SEAT,(ATV)

2681241

Unavailable

38

FOAM BUN, SEAT [No Longer Available]

5430803

Unavailable

39

BRACKET,LEVER RETAINER

5211033

$29.25

40

BASE, SEAT Substituted by 2681288

5430773

Unavailable

41

BLIND RIVET(50)

7621403

$1.49

41

BLIND RIVET(50)

7621403

$1.49

42

Bumper, Rubber

5410414

$3.19

42

Bumper, Rubber

5410414

$3.19

43

LATCH,SEAT

1011558

Unavailable

44

SPRING, LATCH

7041158

Unavailable

45

DECAL [No Longer Available]

7072238

Unavailable
