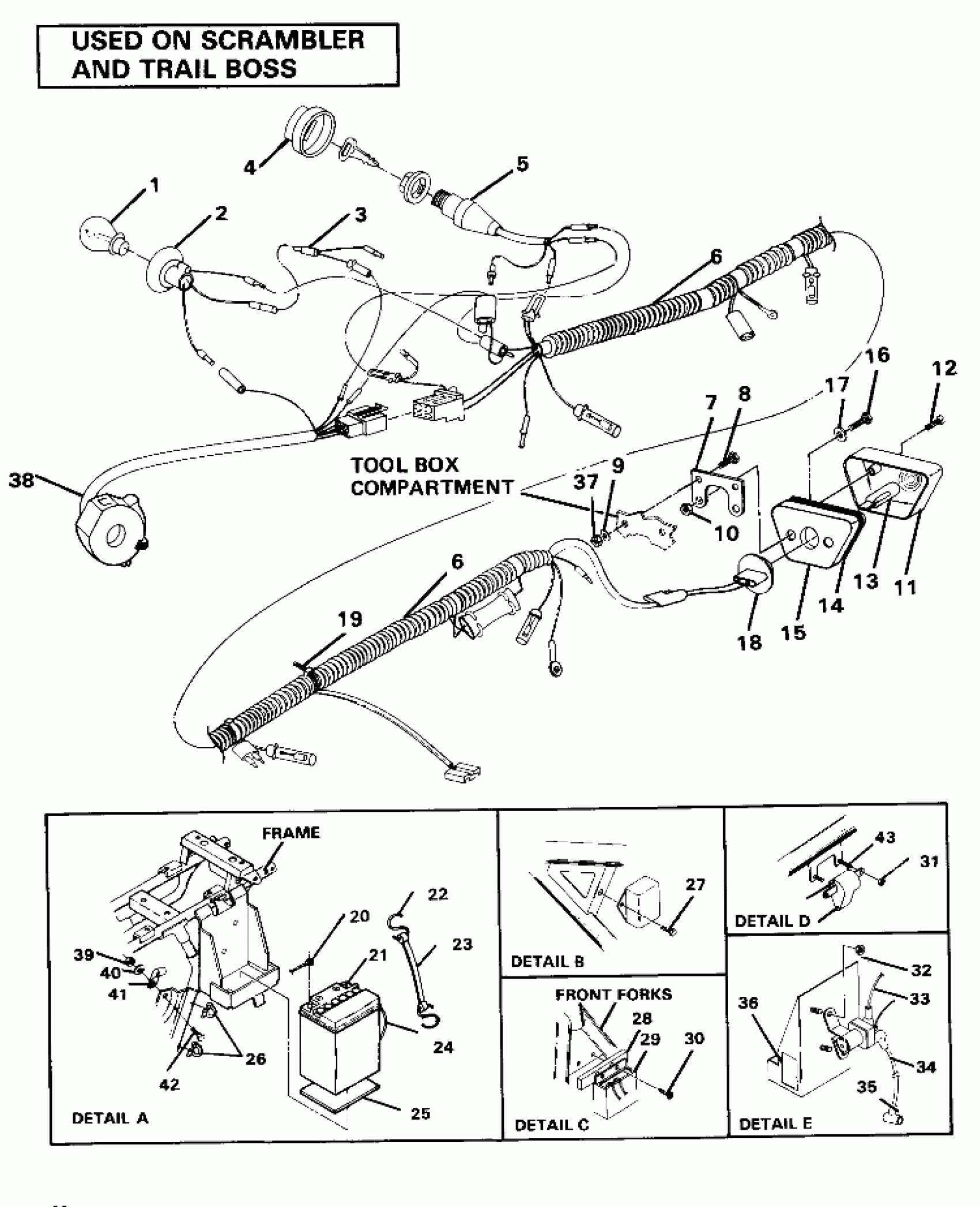

Polaris TRAIL BOSS - W867527 Wire Harness (4911701170040A) Diagram

#

Description
Price

1

BULB, HEADLIGHT

4032007

Unavailable

2

SOCKET CORD ASM.

4032011

Unavailable

3

HARNESS,HI-BEAM INDIC.

2460248

Unavailable

4

COVER, IGNITION KEY [No Longer Available]

5410433

Unavailable

5

SWITCH,IGNITION,MODIFIED

4110065

Unavailable

6

HARNESS,MAIN WIRE

2460236

Unavailable

6

HARNESS,MAIN WIRE

2460236

Unavailable

7

BRACKET,TAILLIGHT

5210985

Unavailable

8

BOLT(10)

7512261

$4.99

9

WASHER(10)

7558301

$1.49

10

NUT(10)

7541925

$1.49

11

LENS, TAILLIGHT Substituted by 4032046

4032030

Unavailable

12

Screw, Taillight

4032029

$4.79

13

BULB,TAILLIGHT,(10)

4030040

$8.79

14

GASKET,TAILLIGHT

4032031

Unavailable

15

BACKING,TAILLIGHT

4032032

$2.25

16

SCREW(10)

7511930

$2.39

17

WASHER(10)

7558203

$3.19

18

SOCKET,TAILLIGHT ASM.

4032033

Unavailable

19

STRAP, BLK

7080272

Unavailable

20

CABLE,BATTERY/ENGINE

4010066

Unavailable

21

Battery

4140006

$99.99

22

HOOK-BATT.H/D(10)

7010032

$1.59

23

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

24

FUEL LINE3/16ID-2FT. Substituted by 8450037-600

5521133

$79.99

25

PAD-BATTERY

5810290

$7.27

26

CLAMP, POLY

7080303

Unavailable

27

BOLT(10)

7512232

$1.49

28

HEAT SINK

5210650

Unavailable

29

REGULATOR/RECTIFIER

4060077

Unavailable

30

SCREW

7522015

Unavailable

33

CABLE,BATTERY/SOLENOID

4010065

Unavailable

34

CABLE,SOLENOID/STARTER

4010064

Unavailable

35

INSULATOR-CABLE

5410346

$6.39

36

DECAL,BATTERY BOX [No Longer Available]

7072245

Unavailable

37

NUT-LOCK(10)

7542122

$1.49

38

SWITCH,HI-LO/START

4110063

Unavailable

39

NUT-LOCK(10)

7542439

$1.49

40

WASHER(10) Substituted by 7555806

7555720

$0.79

41

CLAMP, CABLE

7080326

Unavailable

42

BOLT(10) Substituted by 7512457

7512491

Unavailable

43

WASHER(10)

7571602

$4.79
