- TRAIL BOSS - W867527
Swing Arm Weldment and Rear Shock Assembly (4911701170032A)

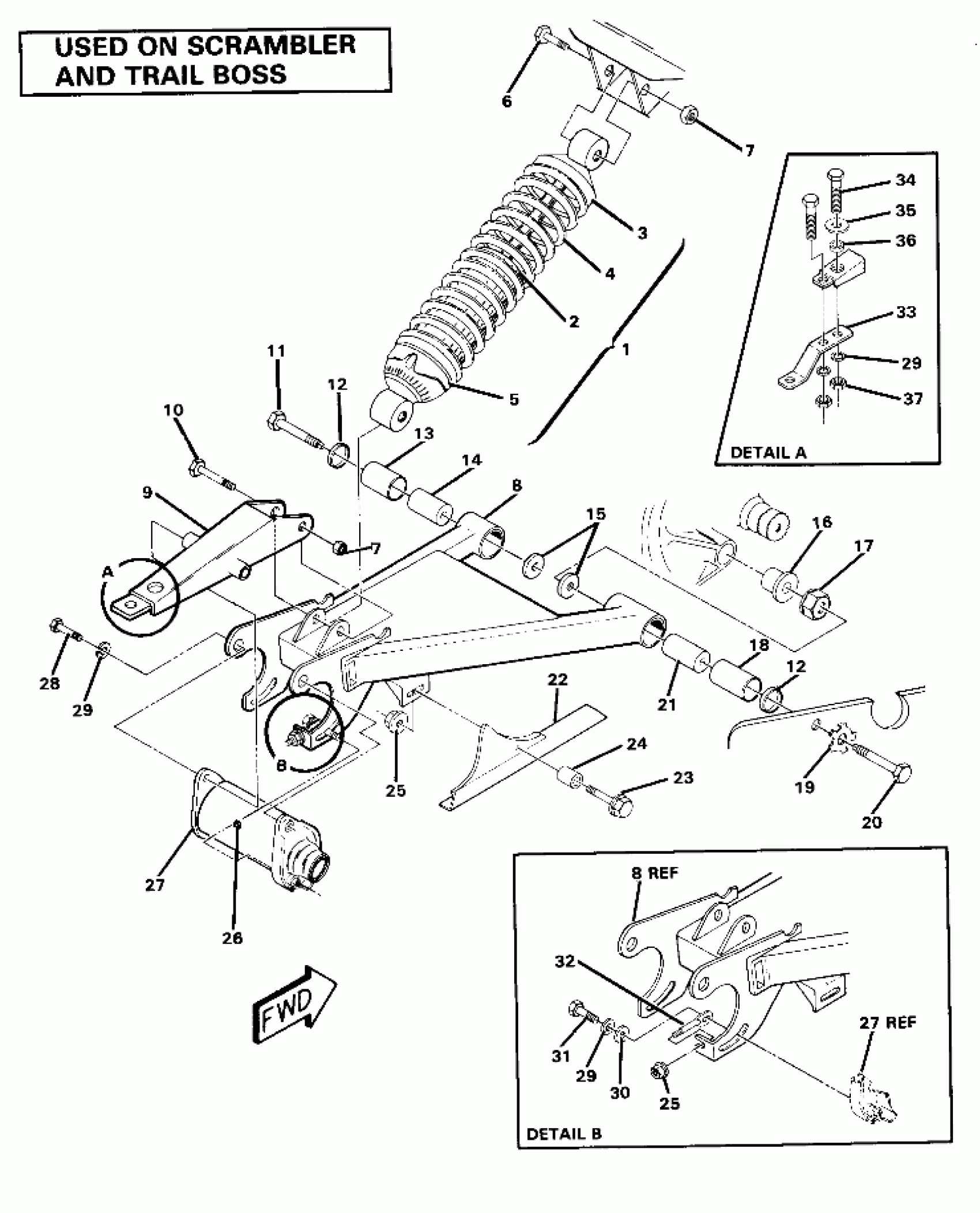

Polaris TRAIL BOSS - W867527 Swing Arm Weldment and Rear Shock Assembly (4911701170032A) Diagram
#
-
Desc not available [No Longer Available]
2870675
Unavailable
1
SHOCK ASM,REAR [Item NotAvailable] (Incl. 2-5)
1580004
Unavailable
2
SHOCK,REAR SUSP.
7041156
Unavailable
3
RETAINER, UPPER
5220631
Unavailable
4
SPRING,COIL(SHOCK)
7041159
Unavailable
5
CAM,ADJUSTING SPRING Substituted by 5630334
5610092
Unavailable
6
BOLT(10)
7515415
$1.49
7
NUT-LOCK(10)
7542439
$1.49
7
NUT-LOCK(10)
7542439
$1.49
8
ARM, SWING, WELD Substituted by 1580003-067
1580003
Unavailable
8
ARM, SWING, WELD Substituted by 1580003-067
1580003
Unavailable
9
HITCH WELD. Substituted by 1040108-067
1040108
Unavailable
10
BOLT(10)
7515417
$4.79
11
BOLT, SPECIAL
7512664
Unavailable
12
BUSHING, MACH.(10)
7555752
Unavailable
12
BUSHING, MACH.(10)
7555752
Unavailable
13
BEARING, LH PIVOT
3576505
Unavailable
14
BUSHING,SWING ARM,LH
5010207
Unavailable
15
WASHER(10)
7555749
$1.49
16
BUSHING,SWING ARM MT.
5630267
Unavailable
17
NUT FLEX,(10)
7542703
Unavailable
18
BEARING, RH PIVOT
3576506
Unavailable
19
PLATE,BOLT LOCK
5220611
Unavailable
20
BOLT, SPECIAL
7512665
Unavailable
21
BUSHING,SWING ARM,RH
5010208
Unavailable
22
GUARD, CHAIN
5430776
$35.99
23
SCREW-FLANGED(10)
7515304
$5.59
24
Bushing
5332828
$9.59
25
NUT LOCK(10)
7542321
$1.49
25
NUT LOCK(10)
7542321
$1.49
26
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
27
HOUSING,AXLE, WELD Substituted by 1011657-067
1011556
Unavailable
27
HOUSING,AXLE, WELD Substituted by 1011657-067
1011556
Unavailable
28
BOLT(10) Substituted by 7512670
7512661
Unavailable
29
LOCK WASHER(10)
7553201
$3.99
29
LOCK WASHER(10)
7553201
$3.99
29
LOCK WASHER(10)
7553201
$3.99
30
WASHER(10)
7555721
$1.49
31
BOLT Substituted by 7512669
7512662
Unavailable
32
BOLT, ADJUSTMENT Substituted by 7080293
1011583
Unavailable
32
Desc not available [No Longer Available] 47
2870657
Unavailable
33
PLATE,HITCH KIT [No Longer Available]
5220650
Unavailable
35
WASHER(10)
7555721
$1.49
36
SPACER,HITCH KIT
5332840
Unavailable
37
NUT-JAM(10)
7542711
$2.39
