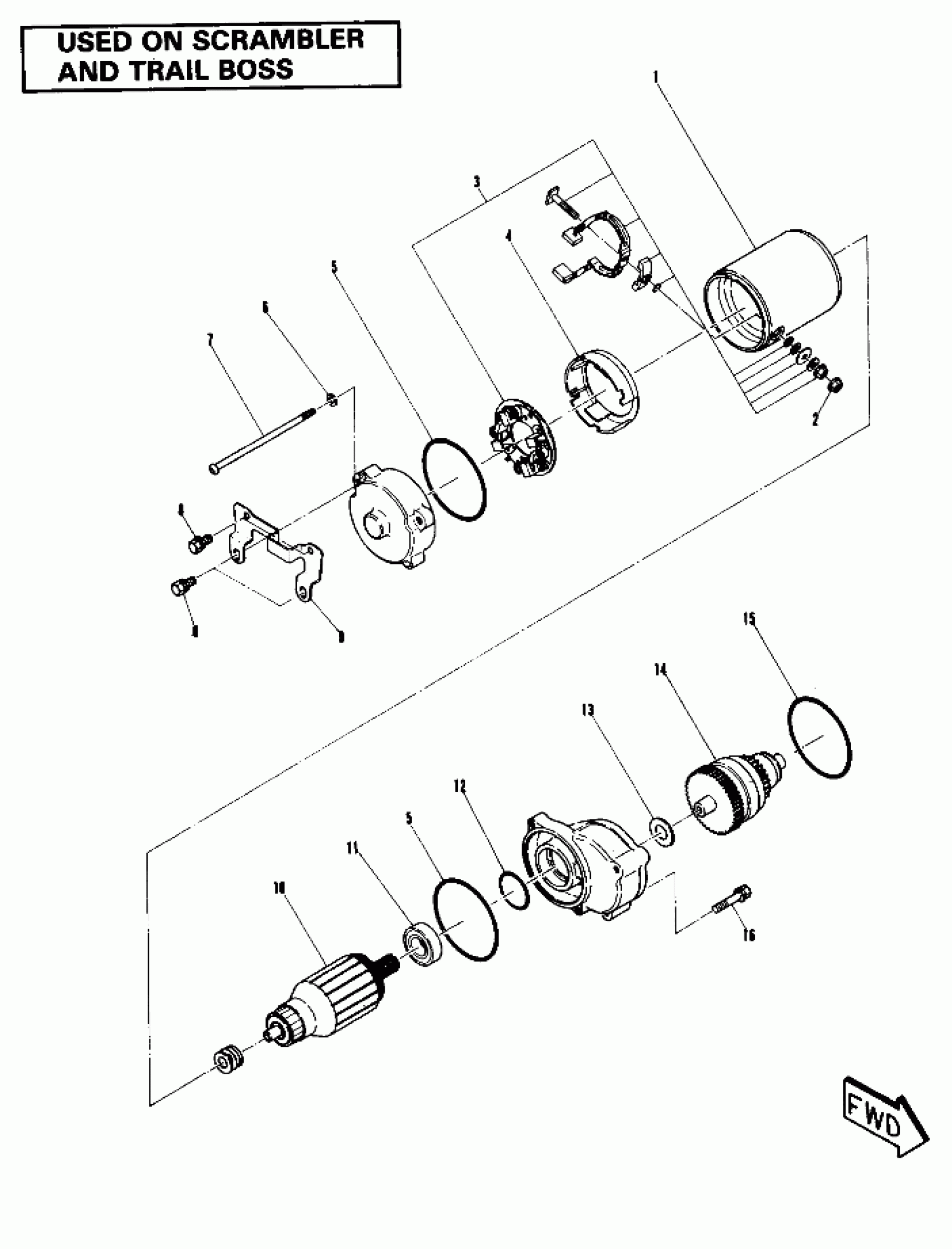

Polaris TRAIL BOSS - W867527 Starting Motor Assembly (4911701170050A) Diagram

#

Description
Price

1

STARTER ASM. Substituted by 3083760 (Incl. 3-7, 10-12)

3083748

Unavailable

2

NUT, FLANGE(10)

3083649

$3.97

3

BRUSH ASM.

3083728

Unavailable

4

HOLDER,BRUSH

3083740

Unavailable

5

RING, RUBBER

3083738

$1.83

5

RING, RUBBER

3083738

$1.83

6

WASHER SPRING(10)

3083133

Unavailable

7

BOLT,THROUGH

3083739

$0.62

8

BOLT&WASHER

3083651

Unavailable

8

BOLT&WASHER

3083651

Unavailable

9

Bracket

3083650

Unavailable

10

ARMATURE ASM. Substituted by 3083776 (Incl. 11)

3083749

$190.48

11

BEARING, BALL Substituted by 3083777

3513505

$31.75

12

O RING

3083741

$9.37

13

WASHER, GEARSHAFT Substituted by 7555908 (Gear Shaft)

3083737

$3.17

14

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 13)

3083647

$271.10

15

O RING

3083648

$1.98

16

BOLT & WASHER

3081663

$1.19
