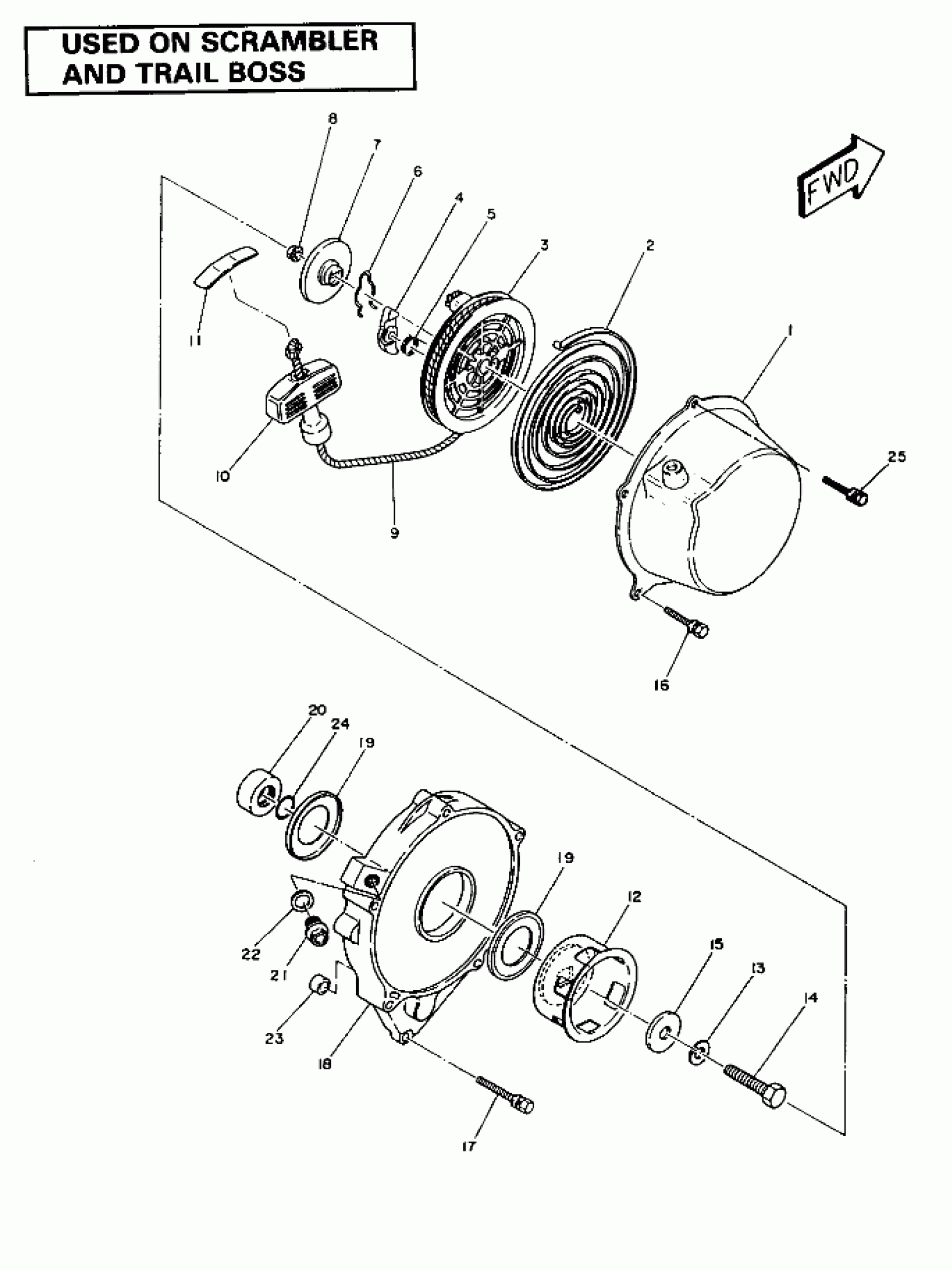

Polaris TRAIL BOSS - W867527 Recoil Starter Assembly (4911701170054A) Diagram

#

Description
Price

-

RECOIL STARTER Substituted by 3083924 (Incl. 1-11)

3083653

Unavailable

1

CASE, STARTER [No Longer Available]

3083654

Unavailable

2

Spring, Spiral

3083376

$179.11

3

REEL, REWIND

3083377

$56.65

4

Ratchet

3083378

$20.22

5

Spring, Return

3083463

$4.03

6

Spring, Friction

3083379

$24.27

7

Plate, Friction

3083464

$28.32

8

NUT, FLANGE ,(10)

3083381

$2.99

8

ROPE ASM. [Item NotAvailable] (Incl. 9-11)

3083657

Unavailable

9

ROPE, STARTER Substituted by 2870621

3083658

Unavailable

10

Knob, Starter

3083659

Unavailable

11

Cap, Knob

3083660

Unavailable

12

PULLEY, STARTING [No Longer Available]

3083661

Unavailable

13

WASHER, SPRING(10)

3080281

$0.79

14

BOLT

3083662

Unavailable

15

Washer

3083663

Unavailable

16

BOLT&WASHER ASSY.

3083664

Unavailable

17

BOLT&WASHER ASSY. [No Longer Available]

3083665

Unavailable

18

HOUSING,MAGNETO,COMPL. Substituted by 3083764 (Incl. 19,23) (Magneto)

3083752

Unavailable

19

SEAL, OIL

3083742

Unavailable

19

SEAL, OIL

3083742

Unavailable

20

COLLAR Substituted by 3083765

3083743

Unavailable

21

PLUG Substituted by 3086749

3083453

Unavailable

22

GASKET-ALUM(10) (Aluminum)

3082717

Unavailable

23

BUSHING, STARTER (Starter)

3083669

Unavailable

24

O RING

3083744

Unavailable

25

BOLT&WASHER

3083729

$3.49
