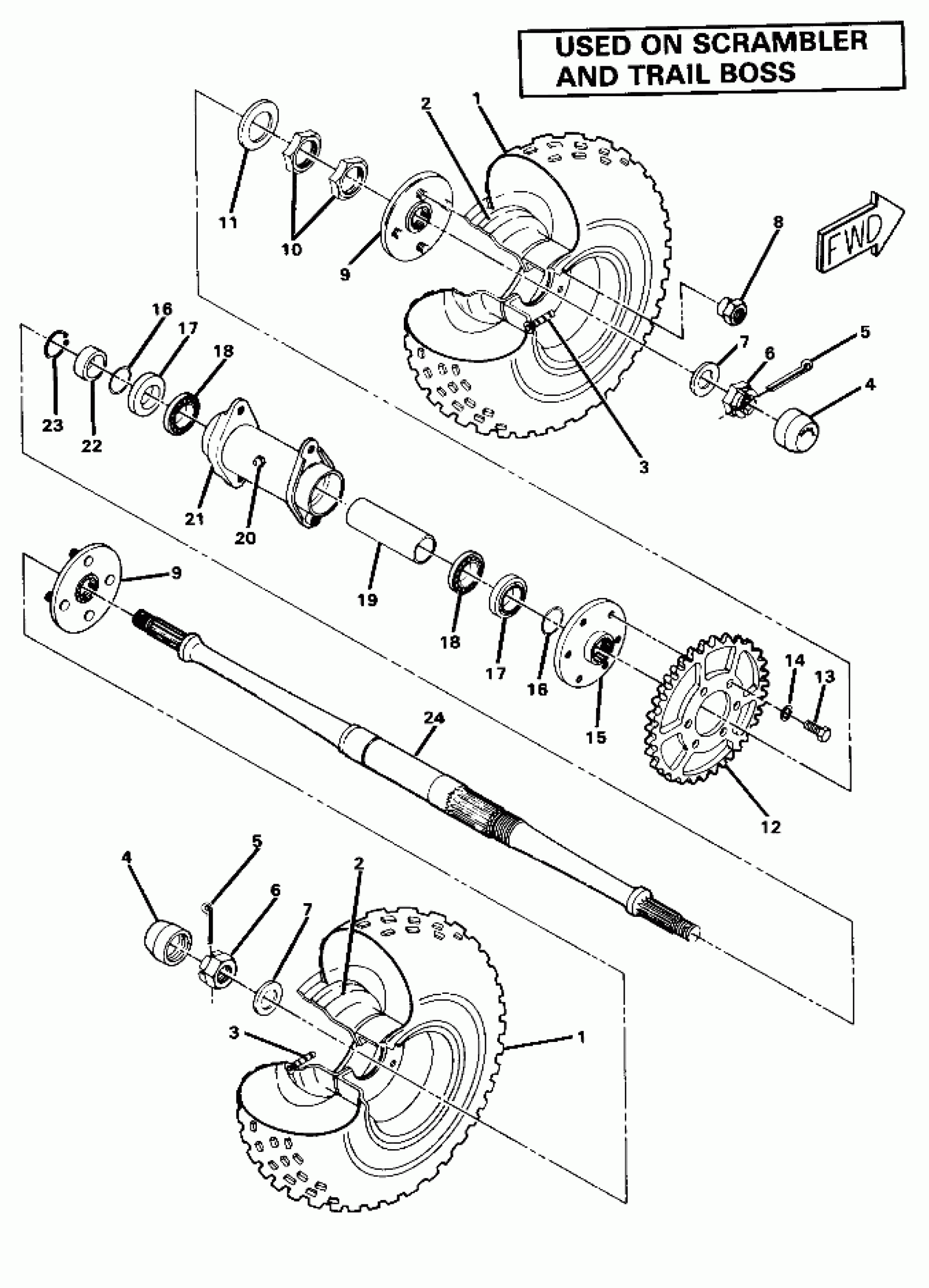

Polaris TRAIL BOSS - W867527 Rear Wheel Drive Assembly (4911701170028A) Diagram

#

Description
Price

1

TIRE,R(22X11-10) [No Longer Available]

5410406

Unavailable

1

TIRE,R(22X11-10) [No Longer Available]

5410406

Unavailable

2

RIM, REAR Substituted by 1520114

1520103

Unavailable

2

RIM, REAR Substituted by 1520114

1520103

Unavailable

3

VALVE-RIM

1525017

$5.59

3

VALVE-RIM

1525017

$5.59

4

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

4

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

5

PIN, COTTER(10)

7661404

$4.79

5

PIN, COTTER(10)

7661404

$4.79

6

NUT, CASTLE(10)

7543005

Unavailable

6

NUT, CASTLE(10)

7543005

Unavailable

7

WASHER(10)

7555745

$7.19

7

WASHER(10)

7555745

$7.19

8

NUT, WHEEL(10)

7542714

$1.59

9

HUB, REAR Substituted by 1520102-067

1520102

Unavailable

9

HUB, REAR Substituted by 1520102-067

1520102

Unavailable

10

NUT, JAM(10) Substituted by 5020468

7543801

Unavailable

11

WASHER

7555747

Unavailable

12

SPROCKET, 42T Substituted by 3222070

3223009

Unavailable

13

SCREW(10)

7512492

$1.49

14

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

15

HUB,SPROCKET WELD Substituted by 1520170

1011559

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

17

SEAL, REAR AXLE

3610013

$19.99

17

SEAL, REAR AXLE

3610013

$19.99

18

Bearing, Ball

3515501

$27.99

18

Bearing, Ball

3515501

$27.99

18

Bearing, Ball

3515501

$27.99

19

TUBE,BEARING SPACER

5010204

Unavailable

20

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

21

HOUSING,AXLE, WELD Substituted by 1011657-067

1011556

Unavailable

22

SPACER,BEARING

5010206

$35.99

23

RING, SNAP(10)

7710405

$4.79

24

AXLE, REAR Substituted by 5020469

5020434

Unavailable
