Description

Price

-

PLATE ASM.

3083751

$308.99

1

FLYWHEEL,W/RING GEAR

3083632

$354.99

2

Plate, Coil

3083634

$74.39

3

HARNESS, WIRE

3083734

Unavailable

4

COIL, EXCITING

3083636

Unavailable

5

COIL, PULSER

3083637

Unavailable

6

STATOR 1

3083638

Unavailable

7

COLLAR

3083639

Unavailable

7

COLLAR

3083639

Unavailable

8

Clamp

3081146

$1.49

9

SCREW & WASHER

3081588

Unavailable

10

SCREW&WASHER ASM.(10)

3083736

$1.49

11

SCREW&WASHER ASM(10)

3081256

$3.19

12

SCREW&WASHER,(10)

3081260

$3.19

13

COUPLER-3P

3083150

$10.63

14

GROMMET Substituted by 3083773

3083641

Unavailable

15

SCREW&WASHER ASM. Substituted by 3083774

3083558

Unavailable

16

COIL, IGNITION

3083642

Unavailable

17

CAP-SPARK PLUG Substituted by 4020129

3083282

Unavailable

18

CDI SYSTEM Substituted by 3083766

3083643

Unavailable

19

SWITCH-MAGNETIC Substituted by 3085521

3083211

Unavailable

20

COUPLER (2P)

3083644

Unavailable

21

WASHER

3083357

$2.39

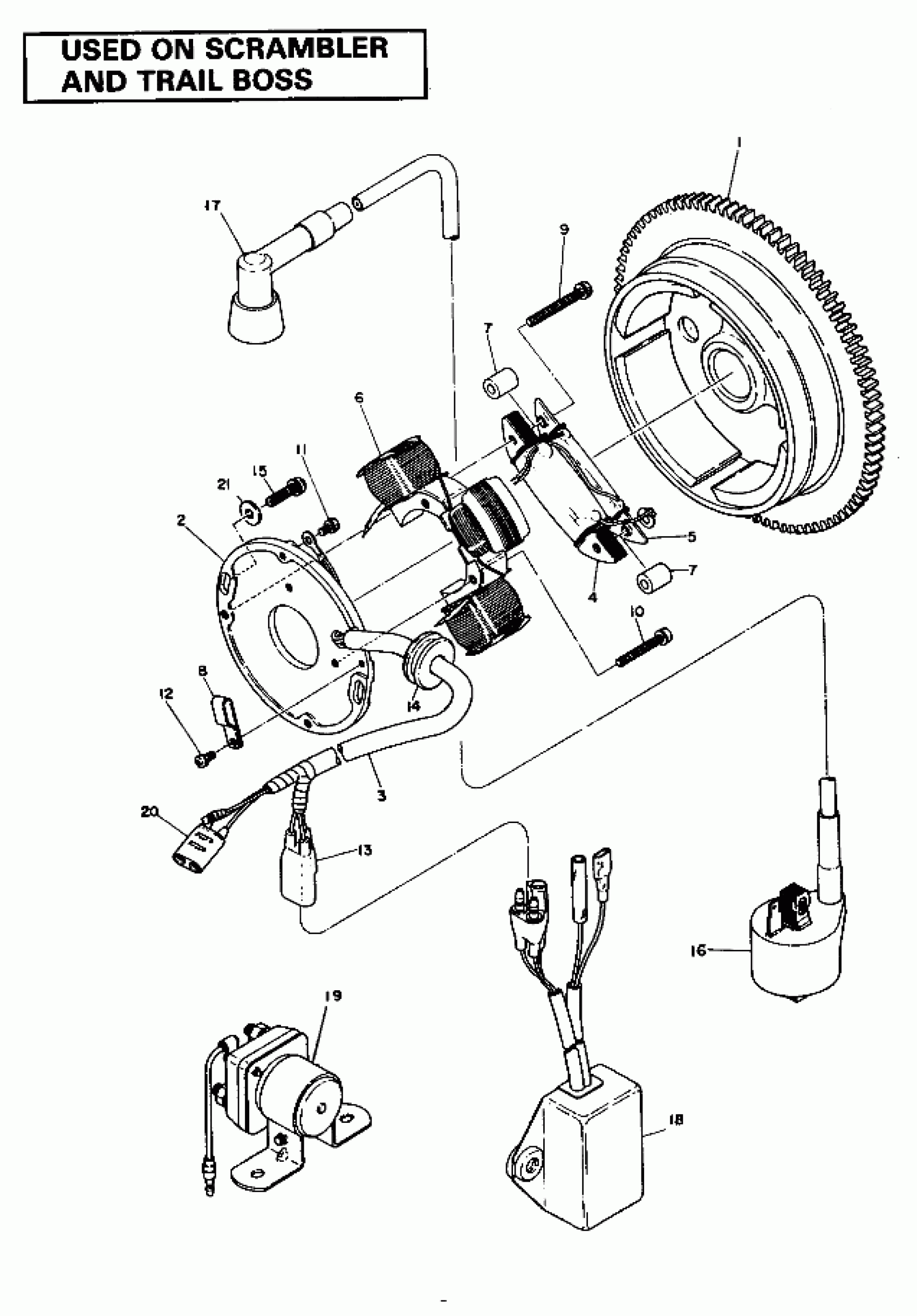

Polaris TRAIL BOSS - W867527 Magneto Assembly (4911701170052A) Diagram

PLATE ASM.

FLYWHEEL,W/RING GEAR

Plate, Coil

HARNESS, WIRE

COIL, EXCITING

COIL, PULSER

STATOR 1

COLLAR

COLLAR

Clamp

SCREW & WASHER

SCREW&WASHER ASM.(10)

SCREW&WASHER ASM(10)

SCREW&WASHER,(10)

COUPLER-3P

GROMMET Substituted by 3083773

SCREW&WASHER ASM. Substituted by 3083774

COIL, IGNITION

CAP-SPARK PLUG Substituted by 4020129

CDI SYSTEM Substituted by 3083766

SWITCH-MAGNETIC Substituted by 3085521

COUPLER (2P)

WASHER
