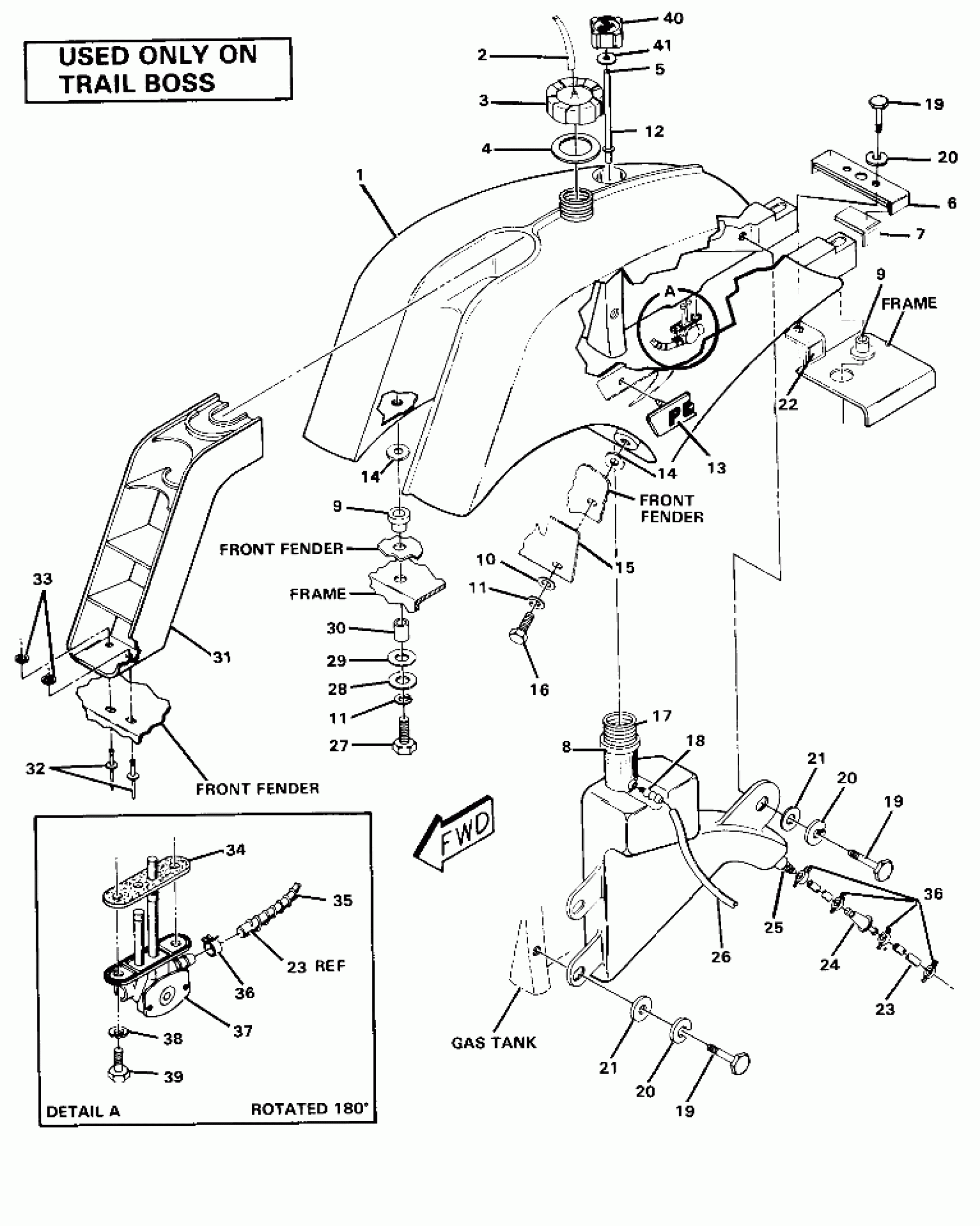

Polaris TRAIL BOSS - W867527 Fuel Tank Assembly-Trail Boss (4911701170012A) Diagram

#

Description
Price

1

TANK,FUEL, 4 WHL. Substituted by 5430898

5430759

Unavailable

1

TANK,GAS,BLUE

5430839

Unavailable

1

TANK,GAS,BLACK Substituted by 5430898

5430840

Unavailable

2

LINE, VENT Substituted by 5521171

5521154

Unavailable

3

CAP, GAS TANK [No Longer Available]

5430799

Unavailable

4

GASKET, GAS CAP

5810288

Unavailable

5

DESC NOT_AVAILABLE

8570027

Unavailable

6

PLATE,REAR TANK MT.

5220674

Unavailable

7

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

8

PAD,SPOUT,OIL [No Longer Available]

5810311

Unavailable

9

GROMMET,FUEL TANK,REAR

5410428

Unavailable

9

GROMMET,FUEL TANK,REAR

5410428

Unavailable

10

WASHER WROUGHT(10)

7558403

$4.79

11

LOCK WASHER(10)

7552901

$1.49

11

LOCK WASHER(10)

7552901

$1.49

12

DIPSTICK, OIL

5430801

Unavailable

13

KIT,LOGO,4/WHL. Substituted by 5430864

2200241

Unavailable

14

WASHER,RUBBER

5410436

$1.59

14

WASHER,RUBBER

5410436

$1.59

15

FLAP,SPLASHGUARD

5850070

Unavailable

16

SCREW(10)

7512310

$2.39

17

TANK,OIL, 3&4 WHL.

5430762

Unavailable

18

VENT-TANK

5430579

Unavailable

19

SCREW(10)

7512113

$3.99

19

SCREW(10)

7512113

$3.99

19

SCREW(10)

7512113

$3.99

20

LOCK WASHER(10)

7552801

$1.59

20

LOCK WASHER(10)

7552801

$1.59

20

LOCK WASHER(10)

7552801

$1.59

21

WASHER,WROUGHT(10)

7558302

$1.59

21

WASHER,WROUGHT(10)

7558302

$1.59

22

PAD, MOUNT [No Longer Available]

5810318

Unavailable

23

BULK-3/16IDX1FT.LINE Substituted by 8450037-600

8450037

Unavailable

23

BULK-3/16IDX1FT.LINE Substituted by 8450037-600

8450037

Unavailable

24

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

25

FITTING - OUTLET(10)

7052023

$24.99

26

KIT-TANK VENT

2200190

Unavailable

27

SCREW(10) Substituted by 5020499

7512317

Unavailable

28

WASHER(10)

7555716

$1.59

29

WASHER, RUBBER

5410430

Unavailable

30

SPACER,MOUNTING

5330161

Unavailable

31

LOUVER,AIR INTAKE

5430765

Unavailable

32

RIVET(50)

7621457

$1.49

33

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

34

GASKET, FUEL VALVE

5810308

Unavailable

35

SPRING

7042030

Unavailable

36

CLAMP-HOSE(10)

7080134

Unavailable

36

CLAMP-HOSE(10)

7080134

Unavailable

37

VALVE,FUEL TANK

7052041

Unavailable

39

BOLT(10)

7512261

$4.99

40

CAP,OIL TANK

5430779

$14.56

41

GASKET-OIL CAP

5810141

$2.39
