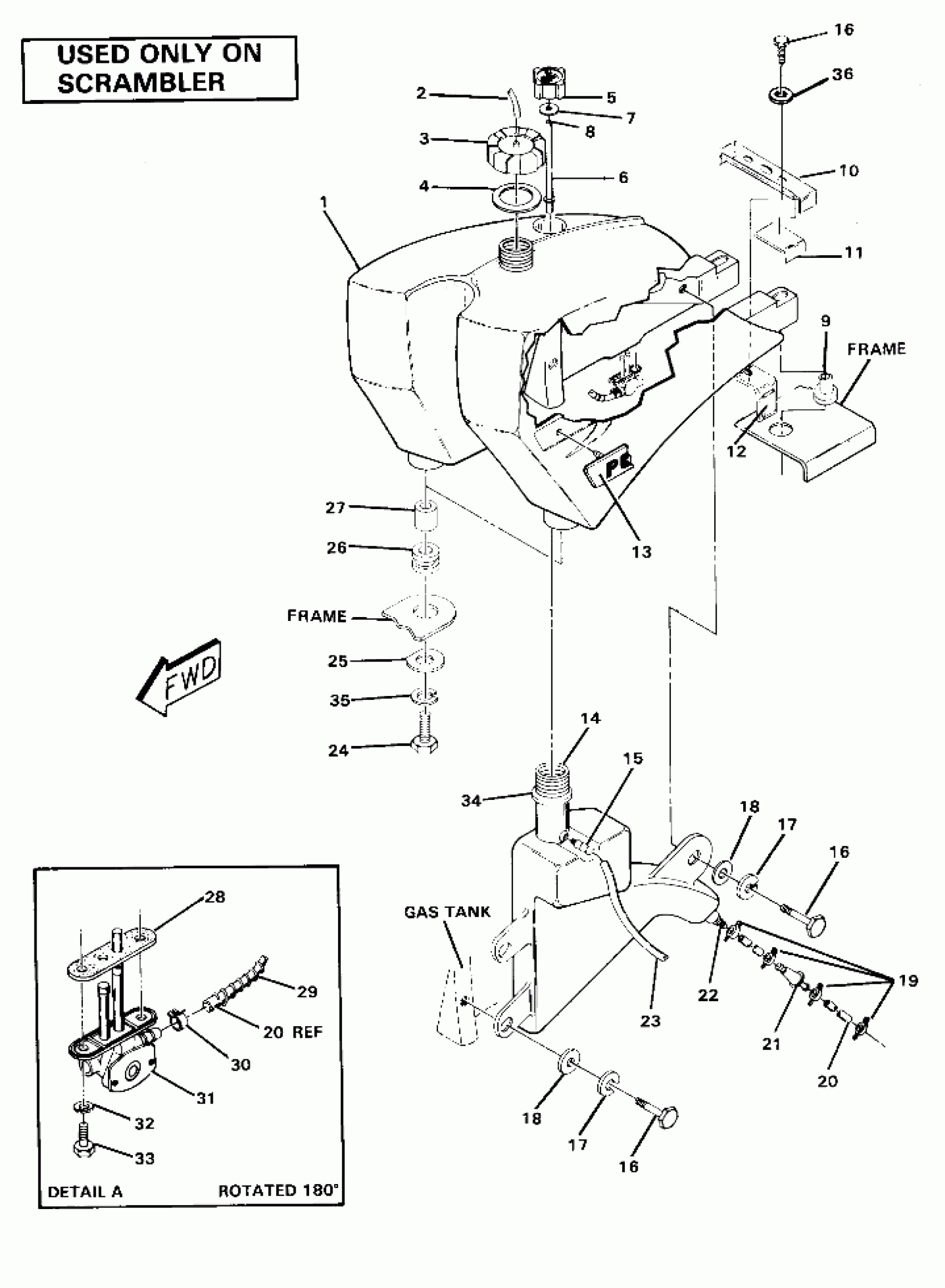

Polaris TRAIL BOSS - W867527 Fuel Tank Assembly-Scrambler (4911701170014A) Diagram

#

Description
Price

1

TANK,FUEL, 3 WHL. [No Longer Available]

5430758

Unavailable

2

LINE, VENT Substituted by 5521171

5521154

Unavailable

3

CAP, GAS TANK [No Longer Available]

5430799

Unavailable

4

GASKET, GAS CAP

5810288

Unavailable

5

CAP,OIL TANK

5430779

$14.56

6

DIPSTICK, OIL

5430801

Unavailable

7

GASKET-OIL CAP

5810141

$2.39

8

DESC NOT_AVAILABLE

8570027

Unavailable

9

GROMMET,FUEL TANK,REAR

5410428

Unavailable

10

PLATE,REAR TANK MT.

5220674

Unavailable

11

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

12

PAD, MOUNT [No Longer Available]

5810318

Unavailable

13

KIT,LOGO,3/WHL. Substituted by 2660001

2200240

Unavailable

14

TANK,OIL, 3&4 WHL.

5430762

Unavailable

15

VENT-TANK

5430579

Unavailable

16

SCREW(10)

7512113

$3.99

16

SCREW(10)

7512113

$3.99

16

SCREW(10)

7512113

$3.99

17

LOCK WASHER(10)

7552801

$1.59

17

LOCK WASHER(10)

7552801

$1.59

18

WASHER,WROUGHT(10)

7558302

$1.59

18

WASHER,WROUGHT(10)

7558302

$1.59

19

CLAMP-HOSE(10)

7080134

Unavailable

20

FUEL LINE3/16ID-2FT. Substituted by 8450037-600

5521133

Unavailable

20

FUEL LINE3/16ID-2FT. Substituted by 8450037-600

5521133

Unavailable

21

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

22

FITTING - OUTLET(10)

7052023

$24.99

23

KIT-TANK VENT

2200190

Unavailable

24

SCREW(10)

7512310

$2.39

25

WASHER(10)

7555716

$1.59

26

GROMMET, RUBBER [No Longer Available]

5410419

Unavailable

27

SPACER, FRONT

5330159

Unavailable

28

GASKET, FUEL VALVE

5810308

Unavailable

29

SPRING,FUEL LINE PROTECTOR [No Longer Available]

7041172

Unavailable

30

CLAMP-HOSE(10)

7080134

Unavailable

31

VALVE,FUEL TANK

7052041

Unavailable

33

BOLT(10)

7512261

$4.99

34

PAD,SPOUT,OIL [No Longer Available]

5810311

Unavailable

35

LOCK WASHER(10)

7552901

$1.49

36

LOCK WASHER(10)

7552801

$1.59
