Frame Assembly with Racks-Scrambler (4911701170006A)

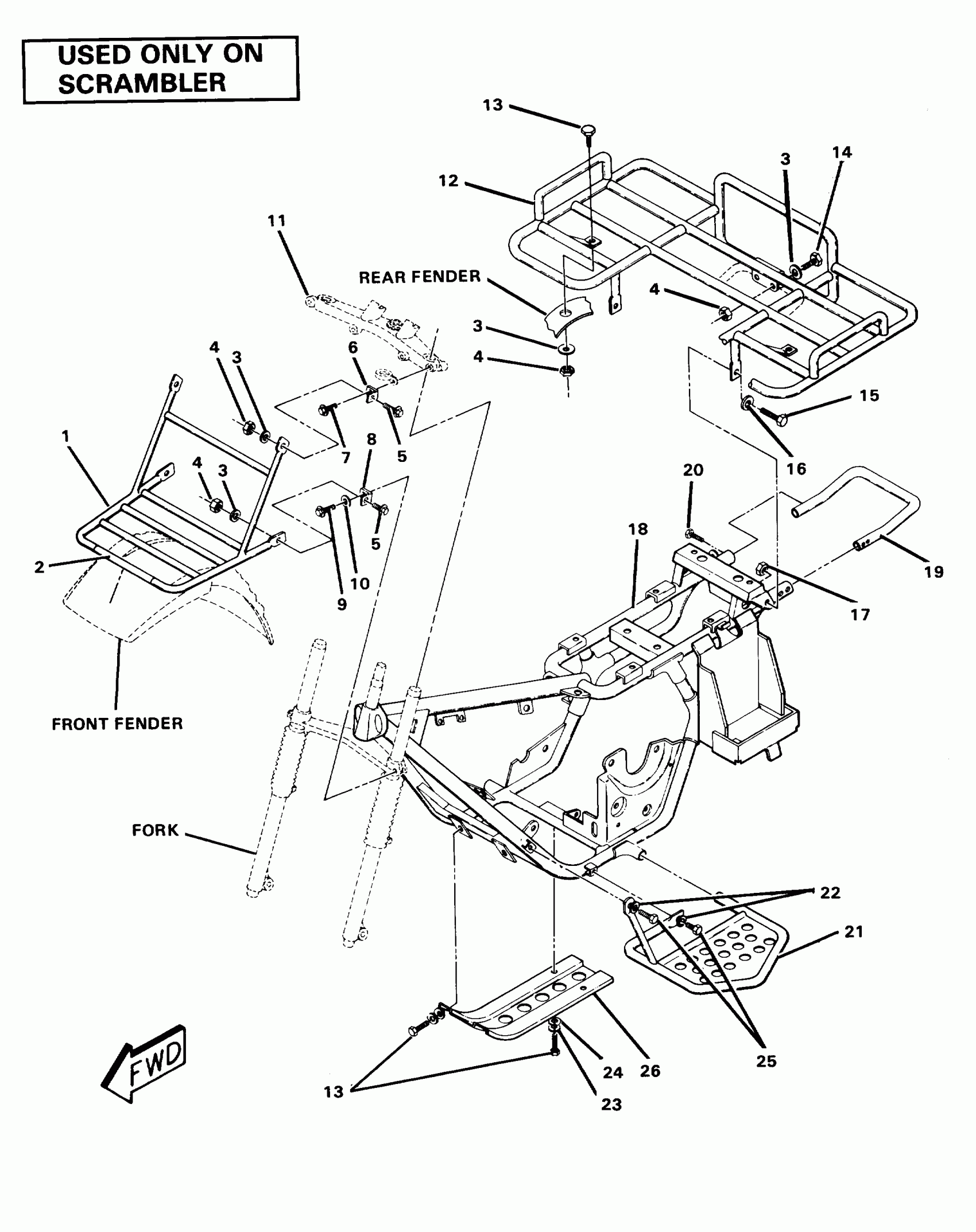

Polaris TRAIL BOSS - W867527 Frame Assembly with Racks-Scrambler (4911701170006A) Diagram
#
Description
Price
1
RACK, FRONT, WELD Substituted by 2670087-067
2670087
Unavailable
2
DECAL [No Longer Available]
7072238
Unavailable
3
WASHER,WROUGHT(10)
7558302
$1.59
3
WASHER,WROUGHT(10)
7558302
$1.59
3
WASHER,WROUGHT(10)
7558302
$1.59
3
WASHER,WROUGHT(10)
7558302
$1.59
4
NUT(10)
7542124
Unavailable
4
NUT(10)
7542124
Unavailable
4
NUT(10)
7542124
Unavailable
4
NUT(10)
7542124
Unavailable
5
SCREW(10) [No Longer Available]
7512216
Unavailable
5
SCREW(10) [No Longer Available]
7512216
Unavailable
6
BRACKET, UPPER
5220473
Unavailable
7
BOLT, FLANGE [No Longer Available]
1844009
Unavailable
8
BRACKET, LOWER
5220465
Unavailable
9
BOLT [No Longer Available]
1844025
Unavailable
10
WASHER,SPRING [No Longer Available]
1844026
Unavailable
11
CROWN, HANDLE [No Longer Available]
1844008
Unavailable
12
RACK, REAR, WELD
2670089
Unavailable
13
BOLT(10)
7512269
Unavailable
13
BOLT(10)
7512269
Unavailable
14
BOLT
7512270
Unavailable
15
SCREW(10)
7512310
$2.39
16
WASHER WROUGHT(10)
7558403
$4.79
17
NUT, NYLOK(10)
7542327
$4.79
18
FRAME WELD. [No Longer Available]
1011561
Unavailable
19
BUMPER, REAR
5224262
Unavailable
20
BOLT-CARRIAGE [No Longer Available]
7512223
Unavailable
21
FOOT REST,LH [No Longer Available]
1040111
Unavailable
21
FOOT REST, RH [No Longer Available]
1040112
Unavailable
22
LOCK WASHER(10)
7552901
$1.49
23
LOCK WASHER(10)
7552801
$1.59
25
BOLT(10)
7512315
$4.79
26
GUARD, ROCK
5220615
Unavailable
