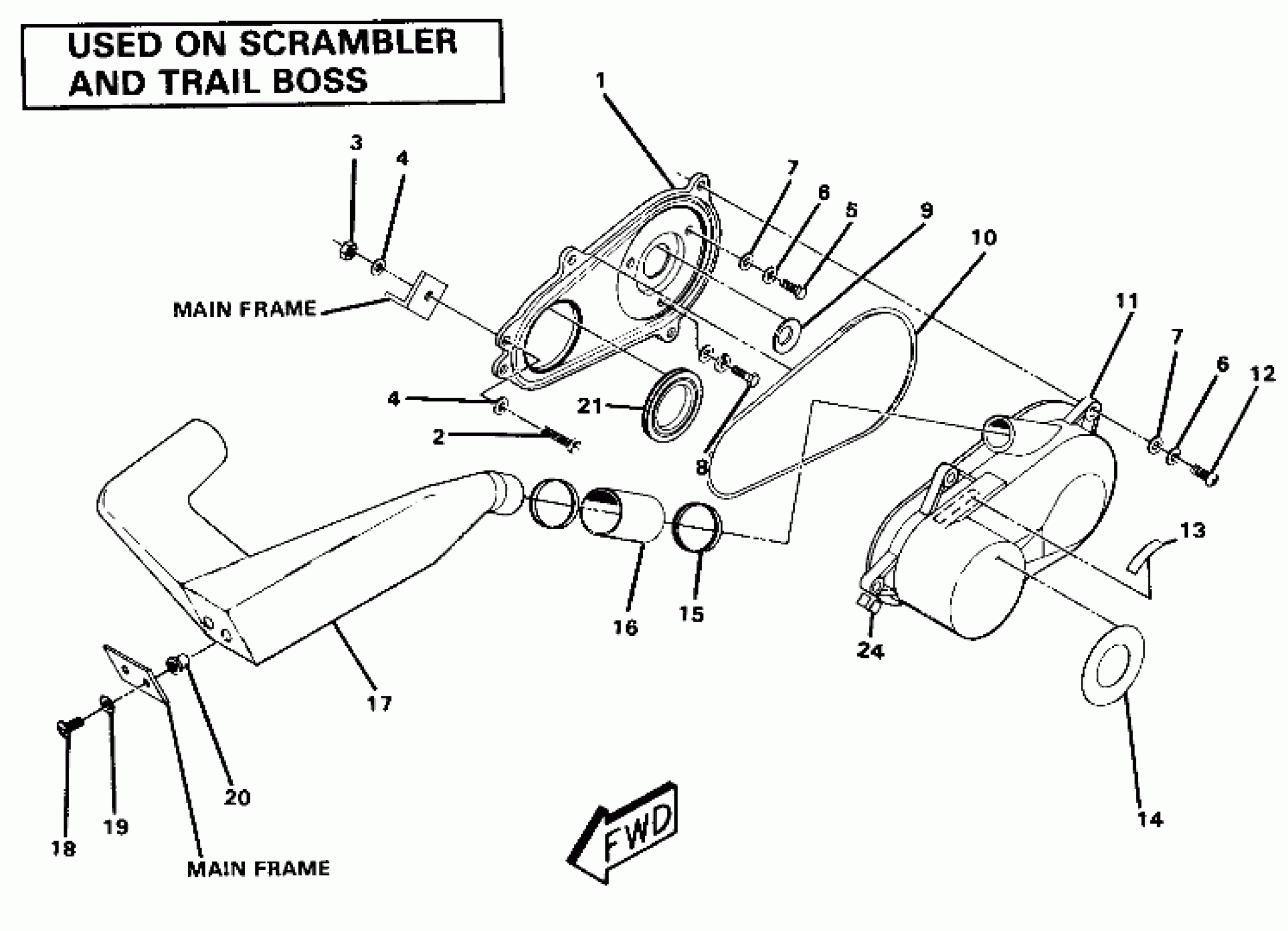

Polaris TRAIL BOSS - W867527 Clutch Cover Assembly. (4911701170034A) Diagram

#

Description
Price

1

COVER, CLUTCH, REAR Substituted by 2200803

5430772

Unavailable

2

SCREW(10)

7512222

$2.39

3

NUT-LOCK(10)

7542122

$1.49

4

WASHER(10)

7558203

$3.19

4

WASHER(10)

7558203

$3.19

5

BOLT(10)

7512277

$4.79

6

WASHER(10)

7552605

$5.27

6

WASHER(10)

7552605

$5.27

7

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

7

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

8

BOLT(10)

7512276

$4.79

9

SEAL, COVER,CASE

5410410

Unavailable

10

SEAL,CLUTCH COVER Substituted by 5521301

5521160

$30.88

11

COVER, CLUTCH,FRONT

5430771

Unavailable

12

BOLT ,(10) Substituted by 7517377

7512239

Unavailable

13

DECAL [No Longer Available]

7072246

Unavailable

14

LOGO

5430829

Unavailable

15

STRAP, BLK

7080272

Unavailable

16

BOOT, INTAKE

5410423

Unavailable

17

DUCT,OUTLET,AIR/ENG. Substituted by 5430914

5430749

Unavailable

18

SCREW(10)

7512279

$1.49

19

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

20

NUT-WELL(10)

7541923

$5.59

21

SEAL,ENG./CLUTCH

5410411

Unavailable

24

CLIP,CLUTCH COVER(10)

7670051

$2.99
