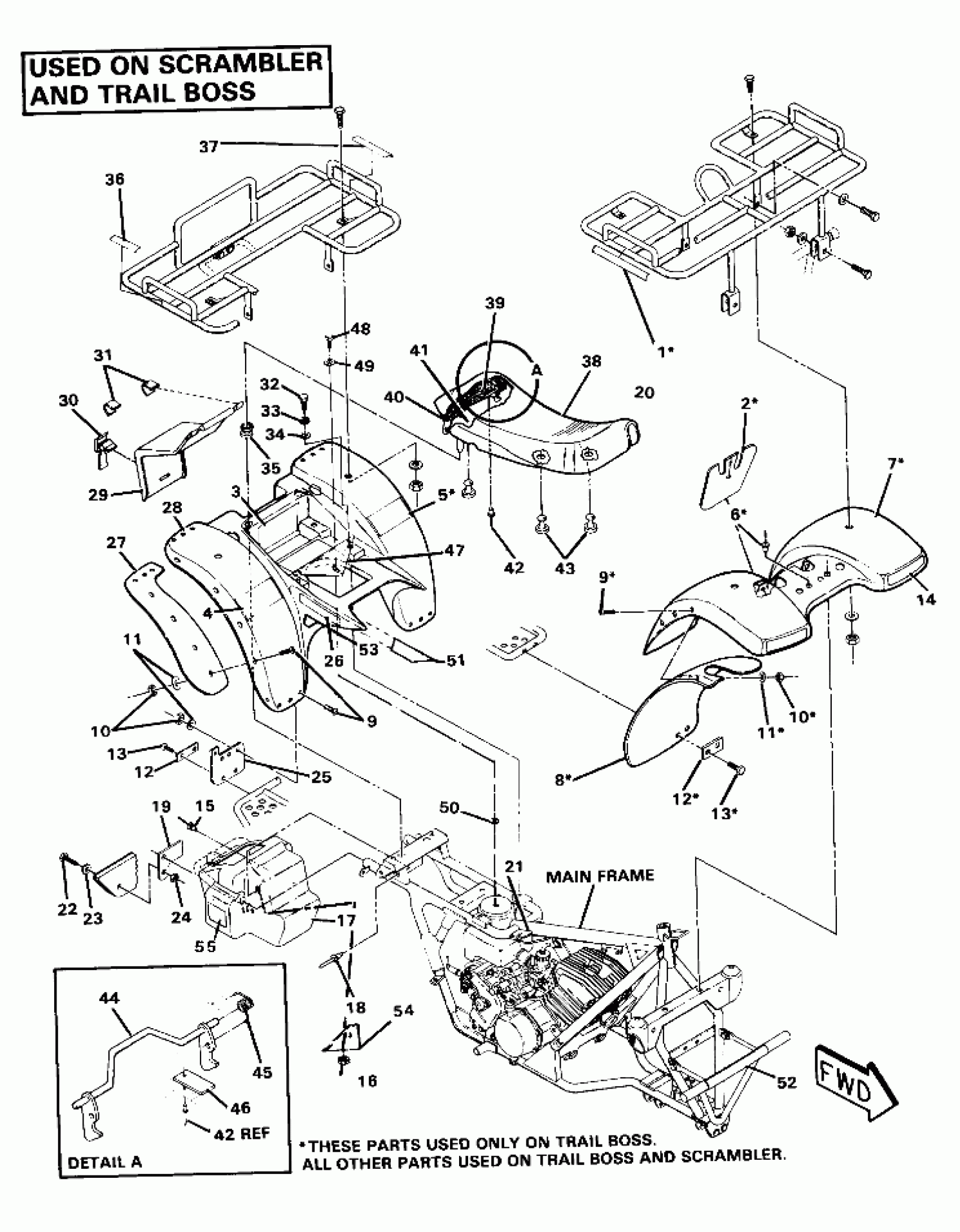

Polaris TRAIL BOSS - W867527 Body Assembly (4911701170002A) Diagram
#
1
DECAL [No Longer Available]
7072238
Unavailable
2
FLAP,SPLASHGUARD
5850070
Unavailable
3
DECAL, SPECS. [No Longer Available] (Scrambler)
7072235
Unavailable
3
DECAL, SPECS. [No Longer Available] (Trail Boss)
7072247
Unavailable
4
DECAL,WARNING(FRENCH) [No Longer Available] (French)
7072276
Unavailable
4
DECAL,WARNING(SPANISH) [No Longer Available] (Spanish)
7072277
Unavailable
4
DECAL,RED,WARN.(FR.) [No Longer Available] (French)
7072281
Unavailable
4
DECAL,BLUE,WARN.(FR.) Substituted by 7072317 (French)
7072282
Unavailable
5
DECAL,WARNING(ENG.) [No Longer Available] (English)
7072275
Unavailable
5
DECAL,RED,WARN.(ENG.) [No Longer Available] (English)
7072283
Unavailable
5
DECAL,BLUE,WARNING Substituted by 7072318 (English)
7072284
Unavailable
6
RIVET(50)
7621457
$1.49
7
CAB,FRONT,LT.BLUE Substituted by 5430990-107
5430835
Unavailable
7
CAB,FRONT,4 WHL. [No Longer Available]
5430756
Unavailable
7
CAB,FRONT,RED [No Longer Available]
5430836
Unavailable
8
MUDFLAP,FRONT,LH
5850071
Unavailable
8
MUDFLAP,FRONT,RH
5850072
Unavailable
9
BOLT(10)
7512273
Unavailable
9
BOLT(10)
7512273
Unavailable
10
NUT-LOCK(10)
7542122
$1.49
10
NUT-LOCK(10)
7542122
$1.49
11
WASHER(10)
7558301
$1.49
11
WASHER(10)
7558301
$1.49
12
BRACKET,MUD FLAP Substituted by 5211020-067
5211020
Unavailable
12
BRACKET,MUD FLAP Substituted by 5211020-067
5211020
Unavailable
13
BOLT(10)
7512232
$1.49
13
BOLT(10)
7512232
$1.49
14
DECAL, 'POLARIS' [No Longer Available]
7072255
Unavailable
15
RIVET(50)
7621462
$1.49
16
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
17
COMPARTMENT,TOOLBOX Substituted by 5430882
5430774
Unavailable
18
RIVET(50)
7621457
$1.49
19
BRACKET,TAILLIGHT
5210985
Unavailable
20
SEAT ASM, (ATV) (lncl. 38-43)
2681240
Unavailable
21
STRAP, BLK
7080272
Unavailable
22
SCREW(10)
7511930
$2.39
23
WASHER(10)
7558203
$3.19
24
NUT(10)
7541925
$1.49
25
FLAP,MUD,LH REAR
5850062
Unavailable
25
FLAP,MUD,RH REAR
5850066
Unavailable
26
DECAL,SCRAMBLER [No Longer Available] (Scrambler)
7072232
Unavailable
26
DECAL,TRAIL BOSS [No Longer Available] (Trail Boss)
7072271
Unavailable
26
DECAL,LT.BLUE(T.B.) [No Longer Available] (Trail Boss) Lt. Blue
7072279
Unavailable
26
DECAL,RED,TRAILBOSS [No Longer Available] (Trail Boss) Red
7072280
Unavailable
27
FLAP,MUD,LH REAR
5850060
Unavailable
27
FLAP,MUD,RH REAR
5850061
Unavailable
28
CAB,REAR,MID.BLUE [No Longer Available]
5430757
Unavailable
28
CAB,REAR,LT.BLUE Substituted by 5430991-107
5430837
Unavailable
28
CAB,REAR,RED [No Longer Available]
5430838
Unavailable
29
LID, TOOLBOX [No Longer Available]
5430769
Unavailable
30
STRAP,TOOL COMPARTMENT
5410425
Unavailable
31
CLIP, LID HINGE(10)
7670050
Unavailable
32
BOLT(10) Substituted by 7512240
7512111
Unavailable
33
LOCK WASHER(10)
7552801
$1.59
35
GROMMET
5410413
Unavailable
36
DECAL [No Longer Available]
7072237
Unavailable
37
DECAL [No Longer Available]
7072238
Unavailable
39
FOAM BUN, SEAT [No Longer Available]
5430803
Unavailable
39
FOAM BUN, SEAT [No Longer Available]
5430803
Unavailable
40
Staple
-------
Unavailable
41
BASE, SEAT Substituted by 2681288
5430773
Unavailable
42
BLIND RIVET(50)
7621403
$1.49
42
BLIND RIVET(50)
7621403
$1.49
43
Bumper, Rubber
5410414
$3.19
44
LATCH,SEAT
1011558
Unavailable
45
SPRING, LATCH
7041158
Unavailable
46
BRACKET,LEVER RETAINER
5211033
$29.25
47
BRACKET, AIR BOX
5220560
Unavailable
48
SCREW(10)
7512307
$3.99
49
LOCK WASHER(10)
7552901
$1.49
50
WASHER(10)
7555716
$1.59
51
TAPE, FOIL [No Longer Available]
5810309
Unavailable
52
DECAL, STRUT [No Longer Available]
7072233
Unavailable
53
DECAL,GEARSHIFT [No Longer Available]
7072229
Unavailable
54
FLAP,TOOL COMPART.
5810314
Unavailable
55
TAPE, FOIL 87
5810310
Unavailable
