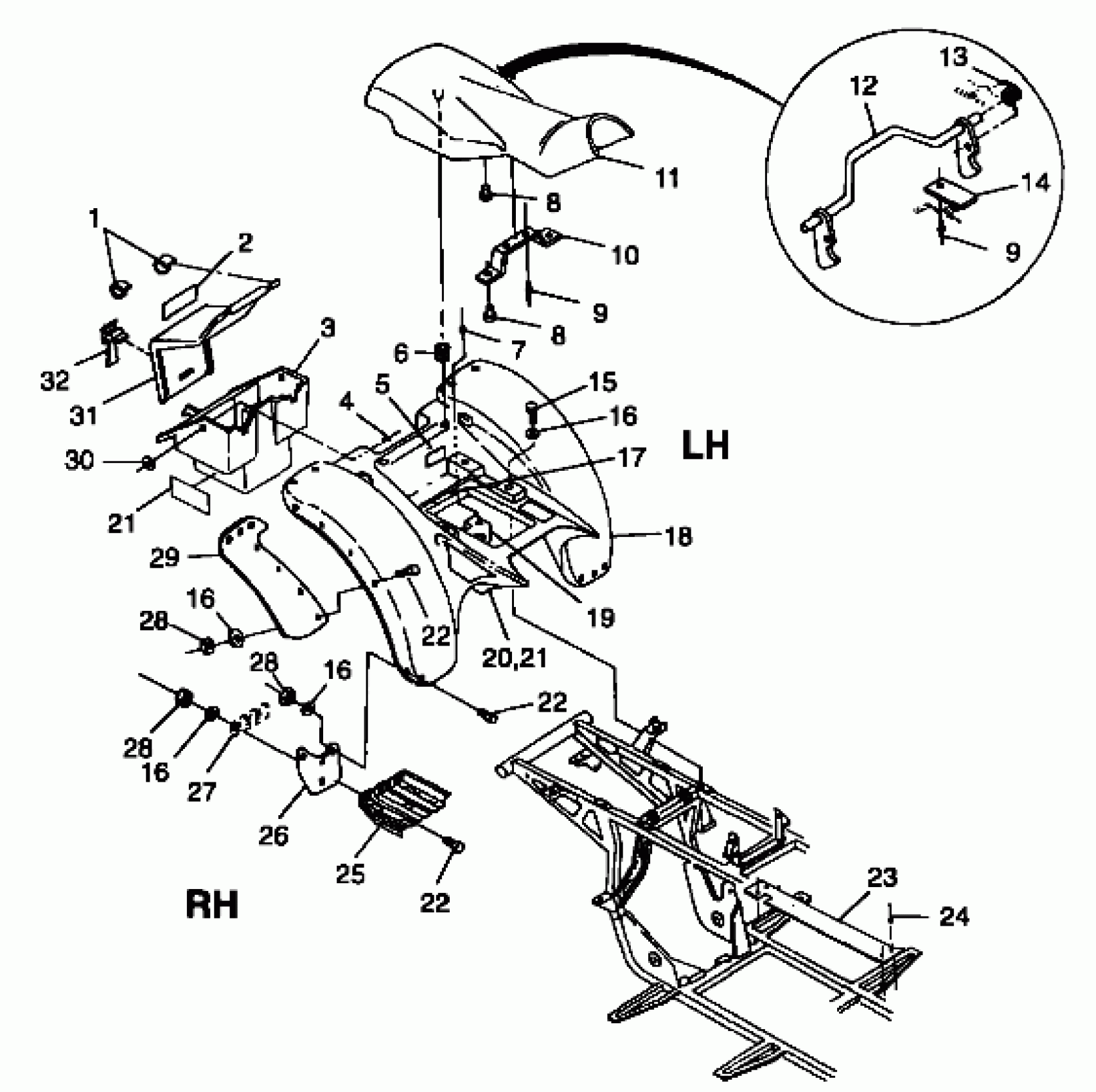

Polaris TRAIL BOSS - A99AA25CA REAR CAB - A99AA25CA (4949594959a006) Diagram

#

Description
Price

1

CLIP, LID HINGE(10)

7670050

Unavailable

2

DECAL,PASS.WARNING

7077920

Unavailable

3

BOX,TOOL COMP.

5430882

Unavailable

4

RIVET(50)

7621462

$1.49

5

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

6

Grommet

5411042

Unavailable

7

RIVET,3/16X.402(50)

7621432

$1.49

8

Bumper, Rubber

5410414

$3.19

8

Bumper, Rubber

5410414

$3.19

9

BLIND RIVET(50)

7621403

$1.49

9

BLIND RIVET(50)

7621403

$1.49

10

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

11

COVER,SEAT,P.RED

2681723-136

Unavailable

11

SEAT ASM,PORSCHE RED (Incl. 8-14)

2682357-136

Unavailable

12

LATCH,SEAT

1011558

Unavailable

13

SPRING, LATCH

7041158

Unavailable

14

BRACKET,LEVER RETAINER

5211033

$29.25

15

SCREW(10)

7512242

$2.39

16

WASHER, FLAT(10)

7555859

$1.49

16

WASHER, FLAT(10)

7555859

$1.49

16

WASHER, FLAT(10)

7555859

$1.49

16

WASHER, FLAT(10)

7555859

$1.49

17

DECAL,CARB.INFO.

7073761

Unavailable

18

CAB,REAR,BR.WHI,GENII

5432532-133

Unavailable

19

BRKT,R.HOLDDOWN

5220880

Unavailable

20

Foil, Rear Cab

5810957

Unavailable

20

Foil, Rear Cab, Small

5810991

Unavailable

21

TAPE, FOIL

5810310

Unavailable

21

TAPE, FOIL

5810310

Unavailable

22

BOLT, BLACK(10)

7512282

$1.49

22

BOLT, BLACK(10)

7512282

$1.49

22

BOLT, BLACK(10)

7512282

$1.49

23

GUARD,CLUTCH,OUTER

5222860-067

$7.06

24

RIVET,INTERLOCK,B(50)

7661638

$1.49

25

Foot Pad (See Bumper and Rack Mounting Pg. A7, Ref. 27)

-------

Unavailable

26

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

26

MUDFLAP,RH,LOW.REAR

5850111

Unavailable

27

BRKT, LH MUD FLAP (LH Only)

5211131-067

Unavailable

28

NUT-LOCK(10)

7542122

$1.49

28

NUT-LOCK(10)

7542122

$1.49

28

NUT-LOCK(10)

7542122

$1.49

29

FLAP,MUD,LH REAR

5850060

Unavailable

29

FLAP,MUD,RH REAR

5850061

Unavailable

30

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

31

LID,TOOLBOX,(WHITE)

5430769-133

$98.79

32

STRAP,TOOL COMPARTMENT

5410425

Unavailable
