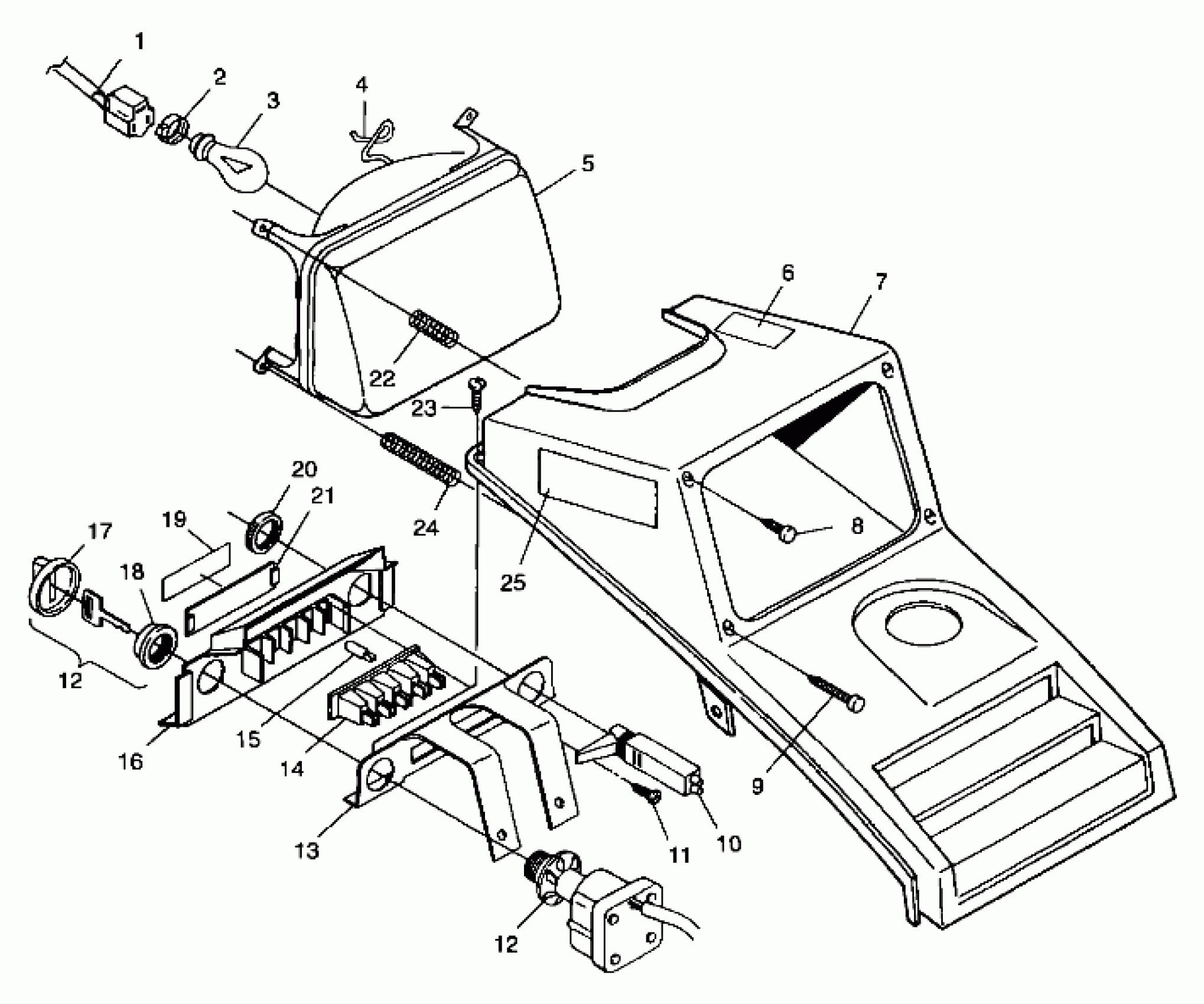

Polaris TRAIL BOSS - A99AA25CA HEADLIGHT - A99AA25CA (4949594959a013) Diagram

#

Description
Price

1

HARNESS,HEADLIGHT

2460427

Unavailable

2

COVER,SOCKET,H/L.

4032066

Unavailable

3

BULB, H/L

4030028

Unavailable

4

RETAINER,H/L BULB

4032063

Unavailable

5

H/L ASM,W/BULBSEAL (Incl. 2-4)

4032065

Unavailable

6

Decal - Override Switch, 2WD (See Decal Pg. A8, Ref. 5)

----

Unavailable

7

COVER,OILTANK&H/L,WHITE

5430973-133

Unavailable

8

SCREW, ADJ.(10)

4032003

$5.99

9

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

10

KIT-CHOKE CONTROL

2200188

$28.32

10

CABLE, CHOKE

7080371

$97.13

11

SCREW, SEM(10)

7511862

Unavailable

12

SWITCH, IGNITION (Incl. 17,18) (See Footnote) NOTE: Ignition Key may be ordered by using the 4 digit number on the key.

4110194

Unavailable

12

SWITCH, IGNITION (Incl. 17,18) (See Footnote) NOTE: Ignition Key may be ordered by using the 4 digit number on the key.

4110194

Unavailable

13

BRKT, IGN. PANEL

5220965-067

Unavailable

14

STRIP, SOCKET

4032037

$26.98

15

BULB

4030042

$8.08

16

PANEL, IGNITION

5430995

Unavailable

17

COVER, KEY Substituted by 5433534

5431964

$13.75

18

NUT,IGN.SWITCH

5432090

Unavailable

19

DECAL, PANEL [No Longer Available]

7072528

Unavailable

20

Nut

7080229

$19.84

21

LENS ASM,PILOT LIGHT (Incl. 19)

2652049

Unavailable

22

SPRING-ADJ

4032002

Unavailable

23

SCREW(10)

7512017

$4.76

24

SPRING,ADJ.

4032041

Unavailable

25

REFLECTOR ASM,AMBER

2670134

$10.51
