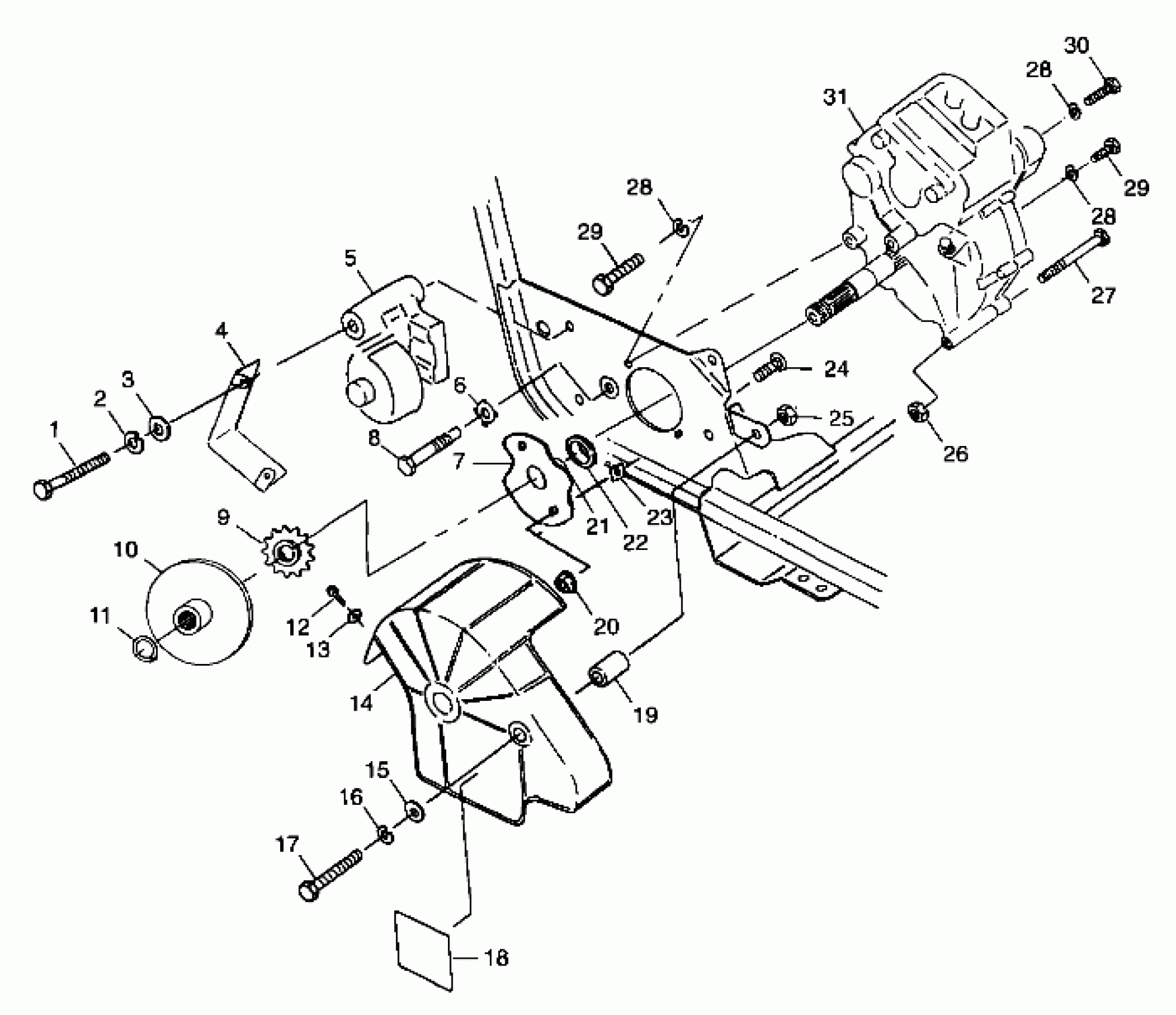

Polaris TRAIL BOSS - A99AA25CA GEARCASE/BRAKE MOUNTING - A99AA25CA (4949594959b013) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.59

2

LOCK WASHER(10)

7552901

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

SHIELD,R.CALIPER,BLK.

5241018-067

Unavailable

5

CALIPER ASM,R.BRAKE

1910224

Unavailable

6

PLATE,BOLT LOCK

5220958

$35.99

7

BRG.ASM,O/P SHAFT (Incl. 21,22)

1590237

$84.99

8

BOLT, SHOULDER

7512702

Unavailable

9

SPKT, 12T

3221044

$43.99

10

DISC ASM,BRAKE

1910177

Unavailable

11

RING,SNAP(10)

7710434

$3.99

12

SCREW(10)

7512252

Unavailable

13

WASHER(10)

7558301

$1.49

14

GUARD, BRAKE DISC

5431766

Unavailable

15

WASHER(10) Substituted by 7558402

7555770

Unavailable

16

WASHER(10)

7552606

$4.79

17

BOLT(10) Substituted by 7515339

7515328

Unavailable

18

DECAL,BRAKE SHIELD

7075339

Unavailable

19

SPACER,BRAKE DISC GUARD

5333255

$5.03

20

NUT,FLANGE LOCK(10)

7542449

$3.99

21

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

22

SEAL, BRAKE

3610026

$7.99

23

SPACER,(10) (.020)

5210764

Unavailable

23

SHIM,.010,GEARCASE (.010)

5211065

Unavailable

23

SHIM,(.030) (.030)

5211517

Unavailable

24

BOLT,CARRIAGE(10)

7515484

Unavailable

25

NUT, (SPECIAL)(10)

7542330

$5.43

26

NUT LOCK(10)

7542403

$3.99

27

BOLT(10)

7515472

$2.39

28

WASHER(10)

7552603

$1.49

28

WASHER(10)

7552603

$1.49

28

WASHER(10)

7552603

$1.49

29

BOLT(10)

7515522

$3.99

29

BOLT(10)

7515522

$3.99

30

BOLT, SHOULDER

7512701

$23.99

31

Asm., Gearcase (See Gearcase Pg. C4 for Details)

-------

Unavailable
