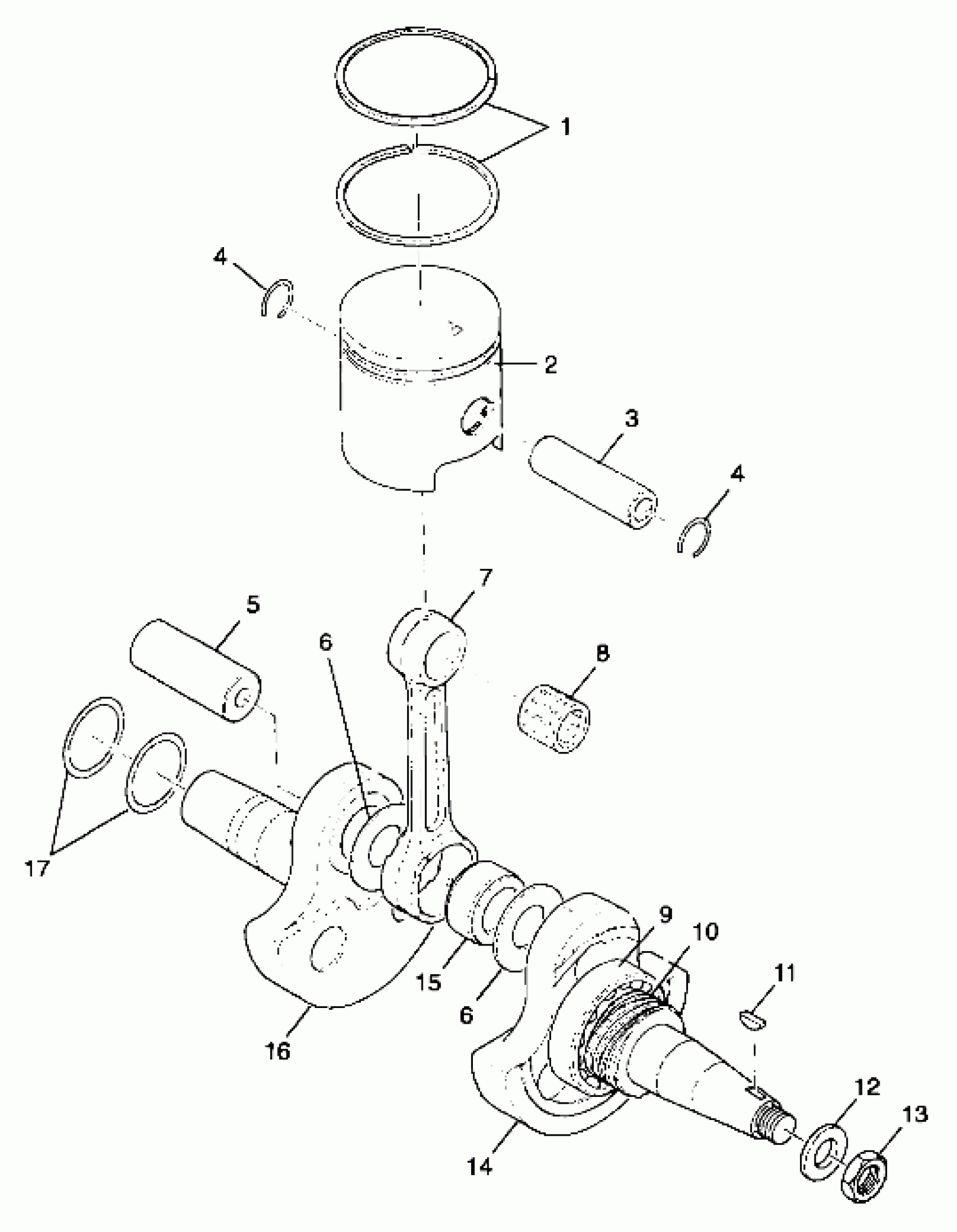

Polaris TRAIL BOSS - A99AA25CA CRANKSHAFT and PISTON - A99AA25CA (4949594959c008) Diagram

#

Description
Price

1

RING, PISTON (Std.)

3083546

Unavailable

1

RING,.020 O/S (0.50mm/.020, O/S)

3083717

$28.56

1

RING,PISTON(O/S,1.0MM) (1.00mm/.040, O/S)

3083974

$31.99

1

RING,.010 O/S (0.25mm/.010, O/S)

3083678

Unavailable

2

SET,PISTON,.040"/1.00MM O/S* (1.00mm/.040, O/S)

3083972

Unavailable

2

PISTON * (Std.)

3083942

Unavailable

2

PISTON,.020 O/S (0.50mm/.020, O/S)

3083944

Unavailable

2

PISTON,.010 O/S (0.25mm/.010, O/S)

3083943

Unavailable

3

Pin, Piston

3083838

$27.99

4

CLIP,PISTON PIN,(10)

3083839

$4.75

4

CLIP,PISTON PIN,(10)

3083839

$4.75

5

CRANK PIN PTO

3082796

$36.41

6

Spacer

3083804

$19.99

6

Spacer

3083804

$19.99

7

ROD CONNECTING

3082790

Unavailable

8

BEARING, SMALL END

3083626

Unavailable

9

Bearing, Ball

3084580

$31.99

10

GEAR,CRANKSHAFT (O/I)

3083745

Unavailable

11

KEY Substituted by 3081543

3080130

Unavailable

12

WASHER Substituted by 3086767

3083904

Unavailable

13

LOCKNUT

3083905

Unavailable

14

CRANKSHAFT #1

3083899

$329.99

14

CRANKSHAFT Substituted by 3087056 (Incl. 5-7,9,10,14-16)

3085893

$782.99

15

BEARING,LGE.END

3083803

Unavailable

16

Crankshaft 2

3085891

$233.95

17

SPACER 3 (0.1mm)

3085892

Unavailable

17

SPACER #1 Substituted by 3086765 (0.2mm)

3084778

Unavailable
