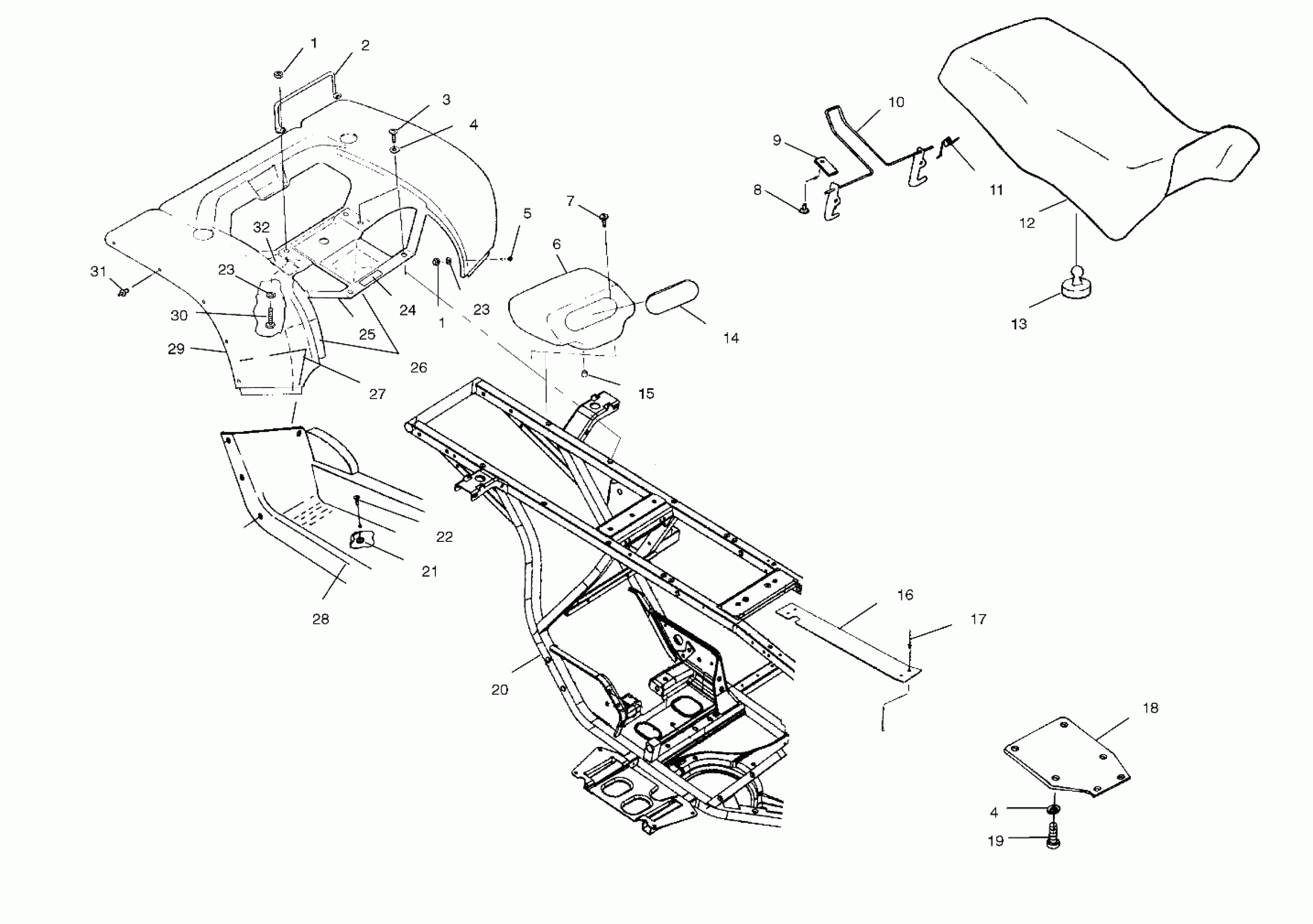

Polaris TRAIL BOSS - A02CA32AA/AB REAR CAB and SEAT - A02CA32AA/AB (4969816981A04) Diagram

#

Description
Price

1

Nut, Nylok

7541925

$0.79

1

Nut, Nylok

7541925

$0.79

2

Retainer, Seat Latch

5246091

$10.63

3

SCREW

7512242

$2.38

4

Washer, Flat

7555859

$1.19

4

Washer, Flat

7555859

$1.19

5

Screw

7512085

Unavailable

6

Box, Tool

5434040

$32.70

7

Screw

7517375

$1.19

8

RIVET

7621403

$1.19

9

BRACKET, LEVER RETAINER

5211033

$34.99

10

LATCH, SEAT

1040387

$48.56

11

SPRING, LATCH

7041370

$9.52

12

Covering, Seat (AB)

2682958-070

$149.75

12

Asm., Seat, Black [Incl. 8-13](AB)

2682957-070

$445.22

12

Asm., Seat, Silver [Incl. 8-13](AA)

2682907-320

$445.22

12

Covering, Seat [AA)

2683023-320

$149.75

13

BUMPER-RUBBER

5412067

$3.97

14

Cover, Tool Box

5431787

Unavailable

15

Cap, Drain

5410896

$5.65

16

Guard, Clutch

5241403-067

$5.71

17

Rivet

7661638

$1.19

18

Guard, Rock

5432763

$109.99

19

Screw

7515179

$2.38

20

Frame

1013644-067

Unavailable

21

Nut, Nylok

7542122

$1.19

22

Screw

7517376

$0.79

23

WASHER

7555792

$4.76

23

WASHER

7555792

$4.76

24

Decal, Carb/Filter Information

7170007

Unavailable

25

Foil

5811087

Unavailable

26

Foil, Rear Cab, Front

5811106

Unavailable

27

Foil, Rear Fender

5811111

Unavailable

28

Footwell, Black, RH

5434417-070

$230.70

28

Footwell, Black, LH

5431771-070

$230.70

29

Cab, Rear (AB)

5432117-053

Unavailable

29

Cab, Rear (AA)

5432117-157

Unavailable

30

Bolt

7511930

$2.38

31

Rivet

7081040

$1.19

32

Foil, Rear Cab, Rear

5811107

Unavailable
