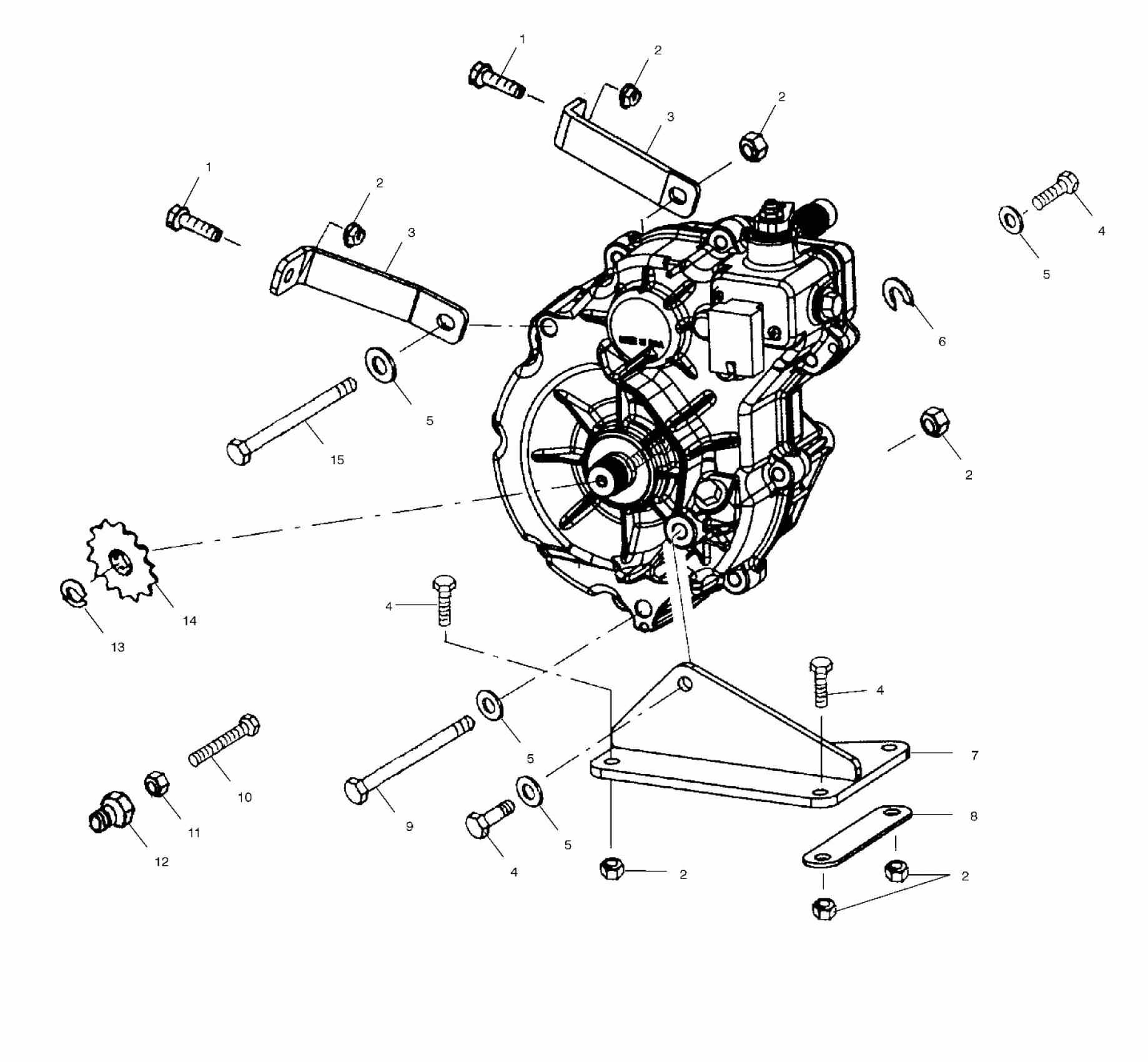

Polaris TRAIL BOSS - A02CA32AA/AB GEARCASE MOUNTING - A02CA32AA/AB (4969816981C02) Diagram

#

Description
Price

1

SCREW

7517632

$5.59

1

SCREW

7517632

$5.59

2

Nut, Flange

7547089

$4.79

2

Nut, Flange

7547089

$4.79

2

Nut, Flange

7547089

$4.79

2

Nut, Flange

7547089

$4.79

2

Nut, Flange

7547089

$4.79

2

Nut, Flange

7547089

$4.79

3

Bracket, Transmission Mount

5242456-067

Unavailable

3

Bracket, Transmission Mount

5242456-067

Unavailable

4

Screw

7512492

$1.49

4

Screw

7512492

$1.49

4

Screw

7512492

$1.49

4

Screw

7512492

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

6

Shim [.020]

5210764

Unavailable

6

Shim [.010]

5211065

Unavailable

6

Shim [.030]

5211517

Unavailable

7

Mount, Transmission

1012886-067

Unavailable

8

Spacer

5243296-067

$5.91

9

SCREW

7517646

$7.19

10

Screw

7517631

$5.59

11

Nut

7542440

Unavailable

12

PLUG, DRAIN [SEE GEARCASE PG. C4, REF. 36]

-------

Unavailable

13

RING, RETAINING

7710434

$3.99

14

Sprocket, 11T

3221043

$39.99

15

Screw

7517640

$10.39
