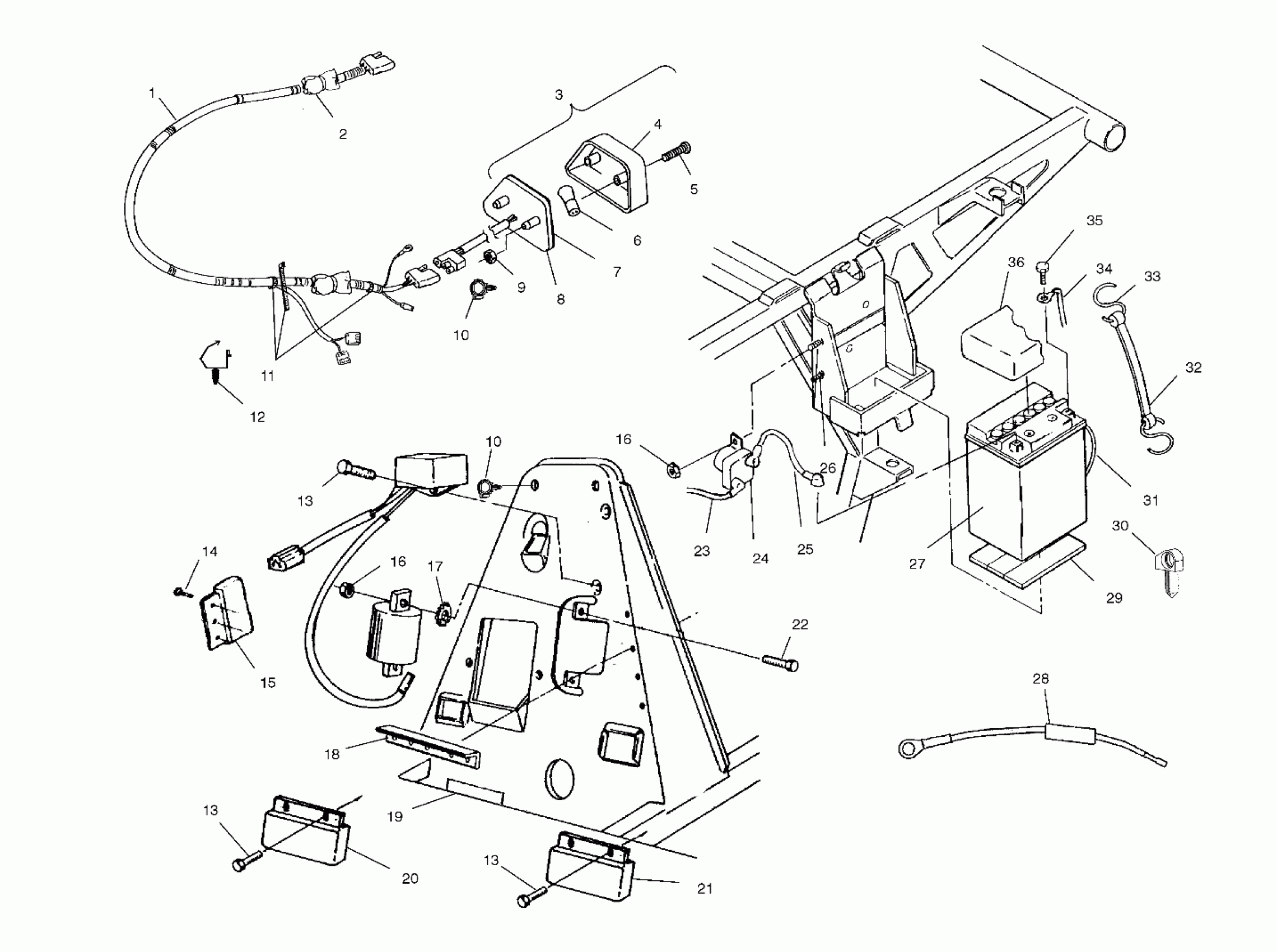

Polaris TRAIL BOSS - A02CA32AA/AB ELECTRICAL/TAILLIGHT - A02CA32AA/AB (4969816981C01) Diagram

#

Description
Price

1

Harness, Main

2460940

Unavailable

2

Kit, Circuit Breaker, Fan

2201795

$68.79

3

Taillight w/Brake Light

2432034

$55.99

4

Lens, Taillight

4032046

$32.37

5

Screw, Taillight

4032029

$4.79

6

Bulb, Taillight

4030043

$6.46

7

Gasket, Taillight

4032045

$4.03

8

Backing, Taillight/Brake Light

4032064

$83.99

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

Clip, Rosebud

4020149

$6.39

10

Clip, Rosebud

4020149

$6.39

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CLIP, ROUTING

7670109

$2.39

13

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

13

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

13

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

14

Screw

7512017

$4.79

15

Limiter, LR44-3

4010137

Unavailable

16

Nut, Nylok

7541925

$1.49

16

Nut, Nylok

7541925

$1.49

17

Washer

7571602

$4.79

18

Sink, Heat

5132214

$8.23

19

Trim, Edge

8360012-04

Unavailable

20

Rectifier, Regulator, LR35

4060191

Unavailable

21

Switch, Thermistor, LR62

4010590

Unavailable

22

BOLT

7512007

$3.99

23

Cable, Solenoid/Starter

4010093

$47.99

24

SWITCH, MAGNETIC [SEE MAGNETO PG. C14, REF. 10]

-------

Unavailable

25

Cable, Battery/Solenoid

4010094

Unavailable

26

Screw

7512027

$1.49

27

Battery

4140006

$99.99

28

Kit, Fusible Link

2202147

$79.99

29

PAD-BATTERY

5810290

$7.27

30

Clip, Silencer

7670102

$2.39

31

Tube, Battery Vent

5432077

Unavailable

32

Strap, Battery Holddown

5410424

Unavailable

33

Hook, Battery Strap

7010032

$1.59

34

Cable, Battery/Engine

4010095

Unavailable

35

Kit - Battery Bolt, Short

2200361

$3.99

36

Cover, Battery

5431769

$14.39
