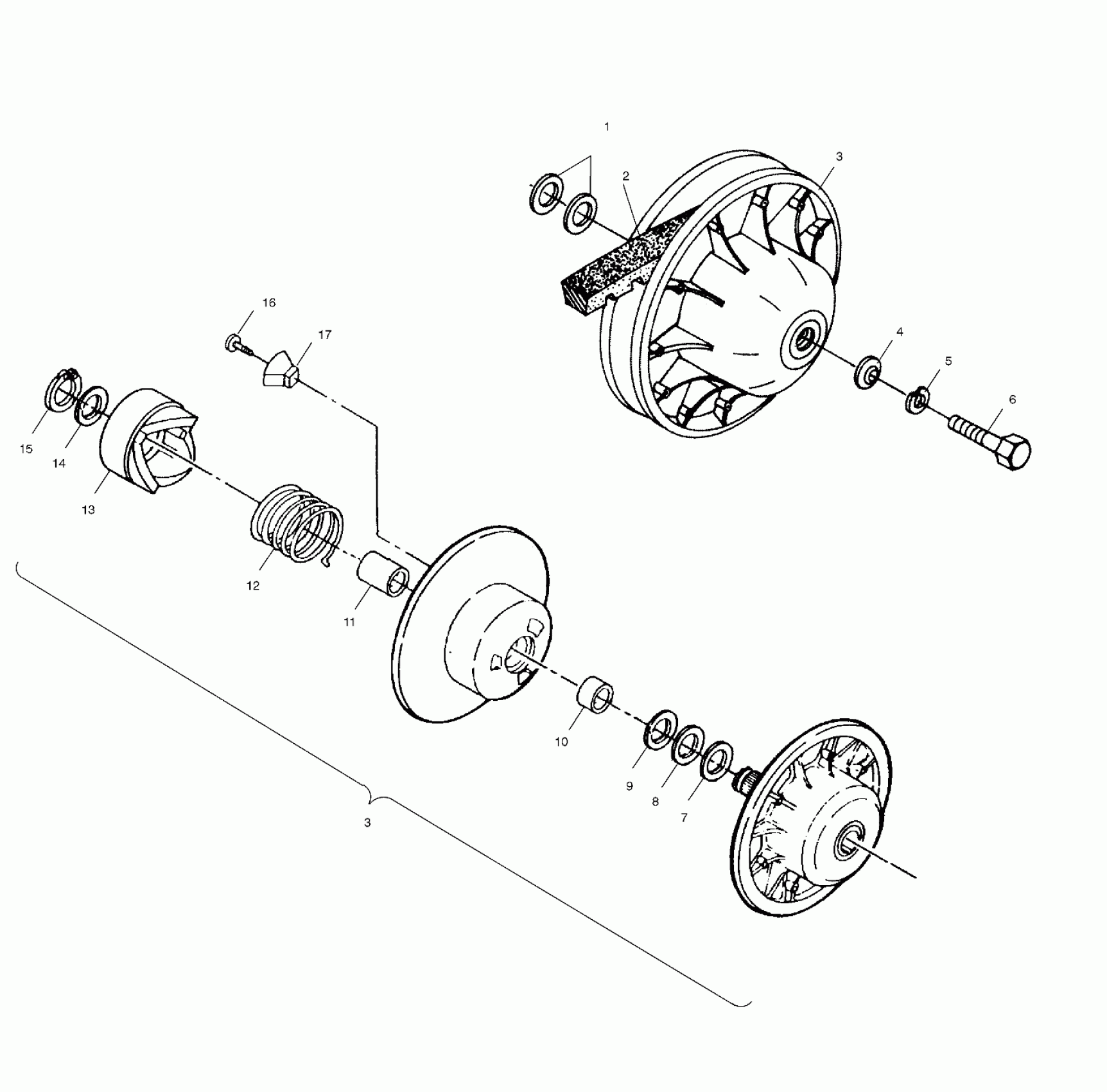

Polaris TRAIL BOSS - A02CA32AA/AB DRIVEN CLUTCH - A02CA32AA/AB (4969816981B14) Diagram

#

Description
Price

1

BUSHING

7556120

Unavailable

2

BELT, DRIVE

3211077

$63.99

3

Asm., Driven Clutch [Incl. 7-17]

1321848

$452.39

3

Asm., Driven Clutch [Incl. 7-17]

1321848

$452.39

4

Washer, Domed

5220646

$2.39

5

WASHER, SPRING LOCK

7552901

$1.49

6

Bolt

7515384

Unavailable

7

Washer

7555898

Unavailable

8

Washer

7556076

Unavailable

9

Washer

7556804

Unavailable

10

BEARING, MOVEABLE, 1/2 INCH

3576504

$23.99

11

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

12

Spring, Clutch, Black

7041782

$56.65

13

RAMP, STATIONARY

5131446

$87.99

14

Spacer

5210752

$1.59

15

Ring, Retaining

7710448

$3.19

16

Bolt

7511854

$1.49

17

Button, Ramp

5430766

Unavailable
