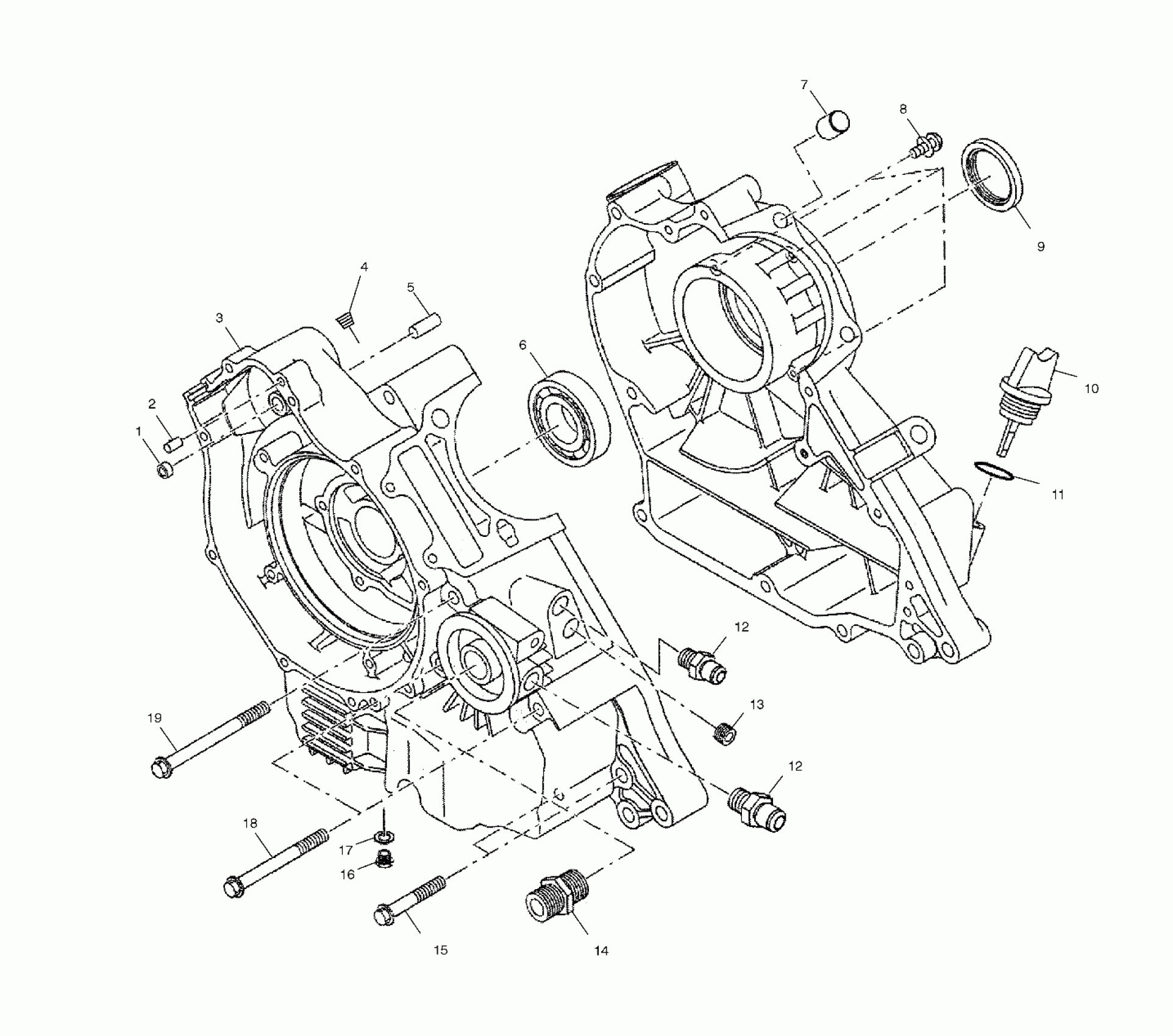

Polaris TRAIL BOSS - A02CA32AA/AB CRANKCASE - A02CA32AA/AB (4969816981C06) Diagram

#

Description
Price

1

BUSHING, STARTER

3083669

Unavailable

2

Pin, Dowel

3086741

$7.14

3

Asm., Crankcase [Incl. 1-5,9,13,15,18,19]

3087125

$824.99

4

Plug, Blind

3087157

Unavailable

5

Pin, Dowel

3087116

$1.19

6

Bearing, Ball

3086395

Unavailable

7

Pin, Straight

3084838

Unavailable

8

Screw and Washer

3084205

$3.97

9

SEAL, OIL

3084839

$28.32

10

Gauge, Oil

3087128

Unavailable

11

O-Ring

3087065

$6.46

12

Union

3087066

$44.51

12

Union

3087066

$44.51

13

Plug

3087155

$5.56

14

Union, Oil Pump

3084849

Unavailable

15

Bolt, Flange

3087156

Unavailable

16

PLUG

3086749

Unavailable

17

GASKET

3082956

$4.84

18

Bolt, Flange

3087117

Unavailable

19

Bolt, Flange

3086399

$9.52
