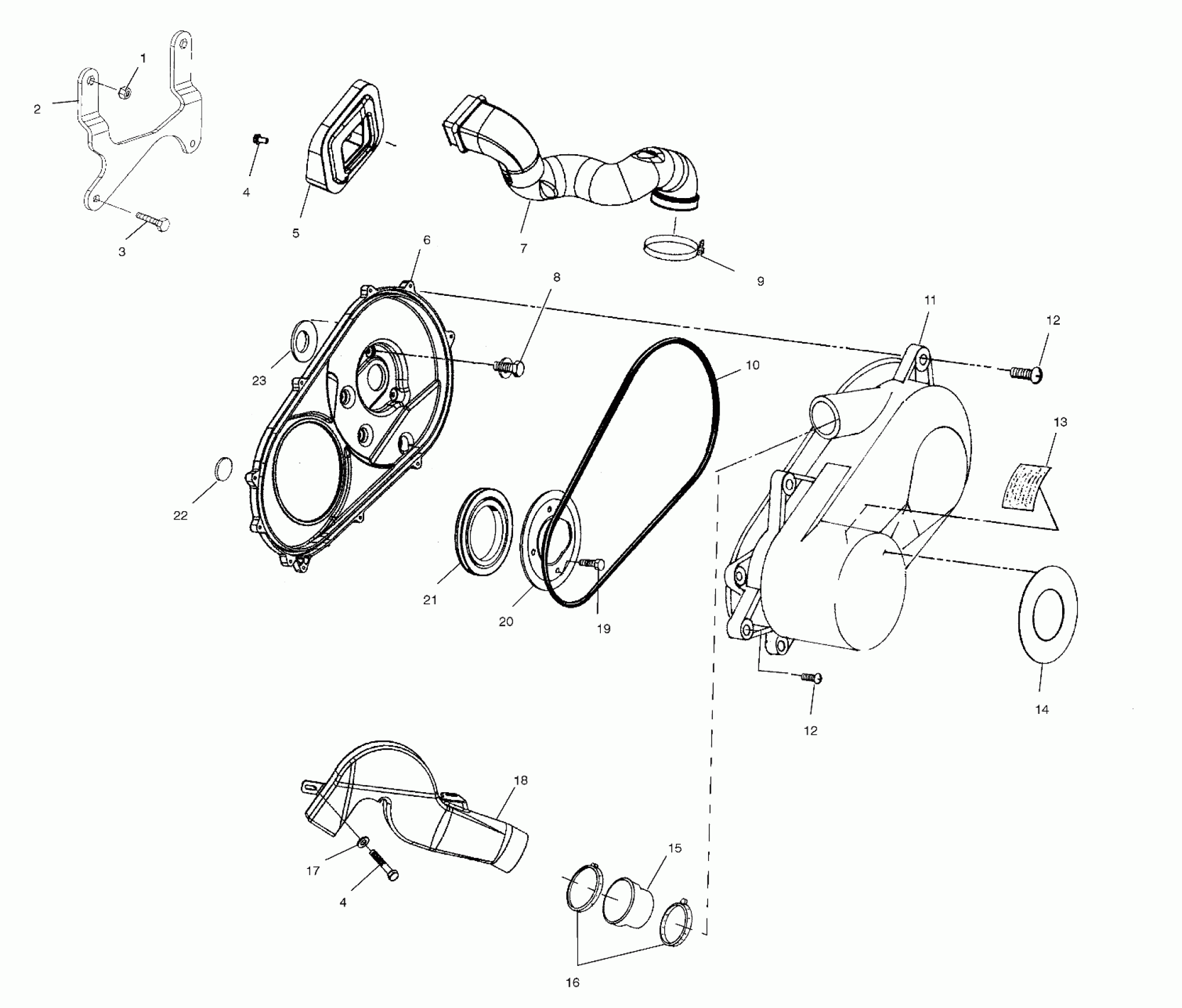

Polaris TRAIL BOSS - A02CA32AA/AB CLUTCH COVER - A02CA32AA/AB (4969816981B12) Diagram

#

Description
Price

1

Nutsert

7547067

$6.23

2

Bracket, Clutch Cover

5242208-067

Unavailable

3

SCREW

7512232

$1.49

4

Screw

7517916

$6.39

4

Screw

7517916

$6.39

5

Asm., Shield

2632474

$26.39

6

Kit, Clutch Cover, Inner

2201851

$125.46

7

Duct, Inlet

5434401

Unavailable

8

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

9

CLAMP, NARROW BAND

7080909

$7.99

10

Seal, Clutch Cover

5521301

$30.88

11

Cover, Clutch, Outer

5433451-070

$178.08

12

SCREW

7512094

$1.59

12

SCREW

7512094

$1.59

13

Decal, Warning, Clutch Cover

7078689

Unavailable

14

Decal, "Automatic Transmission"

7074782

Unavailable

15

Boot, Duct

5411489

Unavailable

16

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

17

Washer, Flat

7558301

$1.49

18

Duct, Air Outlet

5434213

Unavailable

19

SCREW AND WASHER [SEE CRANKCASE PG. C6, REF. 8]

-------

Unavailable

20

Bracket, Clutch Seal

5242046-067

$34.74

21

Seal, Cover Case

5410575

Unavailable

22

Stopper, Inner Clutch Cover

5411795

Unavailable

23

Seal, Clutch Cover

5411901

Unavailable
