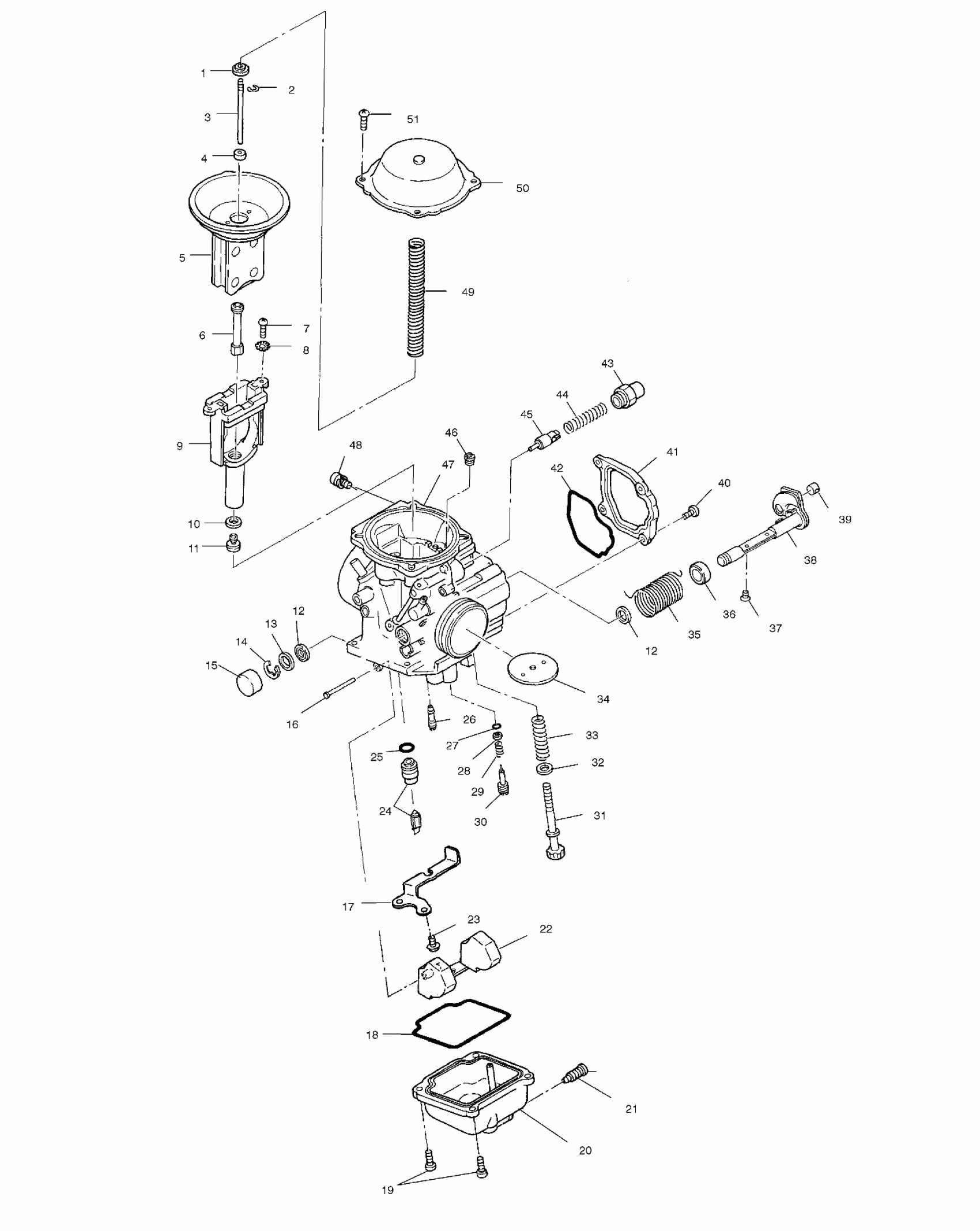

Polaris TRAIL BOSS - A02CA32AA/AB CARBURETOR - A02CA32AA/AB (4969816981C09) Diagram

#

Description
Price

1

RING

3130507

$5.59

2

E-RING

3130508

$6.46

3

Needle, Jet

3130730

Unavailable

4

RING

3130752

$5.59

5

Diaphragm

3130732

$123.99

6

Jet, Needle

3131329

Unavailable

7

SCREW

3130541

$11.19

8

WASHER, SPRING

3130540

$4.79

9

Asm., Jet Block

3131128

Unavailable

10

WASHER

3130014

$1.59

11

Jet, Main [#120]

3131328

Unavailable

12

SEAL

3130515

$11.99

12

SEAL

3130515

$11.99

13

PACKING

-------

Unavailable

14

E-RING

3130518

$1.59

15

CAP

3130519

$10.39

16

PIN, FLOAT

3130361

$8.89

17

PLATE

3130594

$27.99

18

O-RING

3130532

$31.99

19

SCREW

3130520

$1.59

20

Asm., Float Body

3130590

$103.99

21

SCREW

3130521

$10.39

22

ASM., FLOAT

3130529

$79.99

23

SCREW

3130591

$3.99

24

Valve, Needle [1.5]

3131360

$47.99

25

O-RING

3130533

$5.59

26

Jet, Pilot [#50]

3131327

$24.27

27

O-Ring

3130522

$5.65

28

Washer

3130523

$2.39

29

Spring

3130525

$4.79

30

Adjuster

3131131

$12.99

31

Screw, Adjust

3130546

$13.59

32

Ring

3130545

$12.13

33

Spring

3130544

$9.59

34

Valve, Throttle [120]

3131126

Unavailable

35

SPRING

3130589

$23.99

36

Ring

3130514

$7.19

37

SCREW

3130501

$3.99

38

Asm., Throttle Shaft

3130513

$79.99

39

GUIDE, CABLE

3130543

$27.99

40

SCREW

3130535

$7.19

41

COVER

3130511

$43.99

42

O-Ring

3130512

$39.99

43

Holder, Guide

3130199

$28.32

44

SPRING

3130538

$4.79

45

Asm., Plunger

3130593

$34.74

46

Jet, Air [#175]

3131133

Unavailable

47

Asm., Carburetor [Incl. 1-38,43-51]

3131383

Unavailable

48

Screw and Washer

3084205

$3.99

49

Spring

3131129

$27.99

50

Asm., Cover

3131127

Unavailable

51

SCREW-MIKUNI C2=0408

3130592

Unavailable
