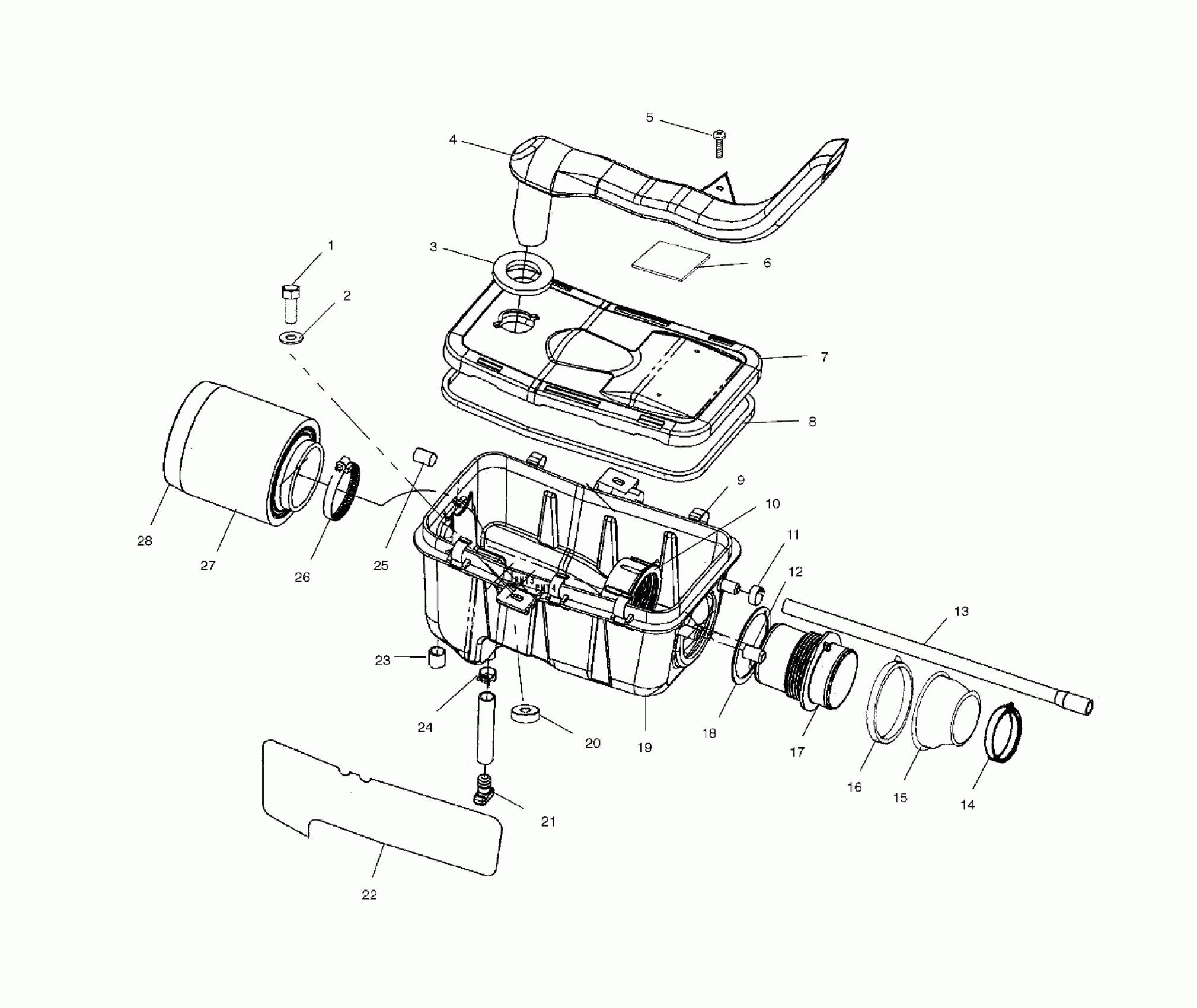

Polaris TRAIL BOSS - A02CA32AA/AB AIR BOX - A02CA32AA/AB (4969816981A11) Diagram

#

Description
Price

1

Screw

7515180

Unavailable

2

Washer, Flat

7555859

$1.19

3

Seal, Intake

5812023

$6.59

4

Duct, Inlet

5433767

$121.02

5

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

6

Pad, Fuel Tank Bracket

5810317

Unavailable

7

Cover, Air Box

5433769

Unavailable

8

Seal, Air Box Cover

5811482

$28.32

9

CLIP-AIR BOX

5242044

$9.52

10

Collar, Carb Inlet

5432601

$12.94

11

Clamp, Hose

7080699

$1.59

12

CAP, RUBBER

5412101

$5.65

13

Hose, Breather

5411866

$11.51

14

Clamp, Narrow Band

7080511

$4.76

15

Boot, Carburetor

5411588

Unavailable

16

Clamp, Narrow Band

7080413

$3.17

17

Duct, Carb Inlet

5433180

$36.41

18

Gasket, Carb Inlet

5830128

Unavailable

19

Box, Air Intake, 4 Stroke

5433919

Unavailable

20

Washer, Nylon

7555932

$2.38

21

Plug, Trap

5432377

Unavailable

22

Foil, Air Box, RH

5812111

Unavailable

23

Cap, Rubber

5412099

$2.74

24

Clamp, Hose

7080650

$3.97

25

Cap, Rubber

5412099

$2.74

26

Clamp, Narrow Band

7080413

$3.17

27

Precleaner

5811660

$6.10

28

Asm., Filter [Incl. 27]

1253372

$27.78
