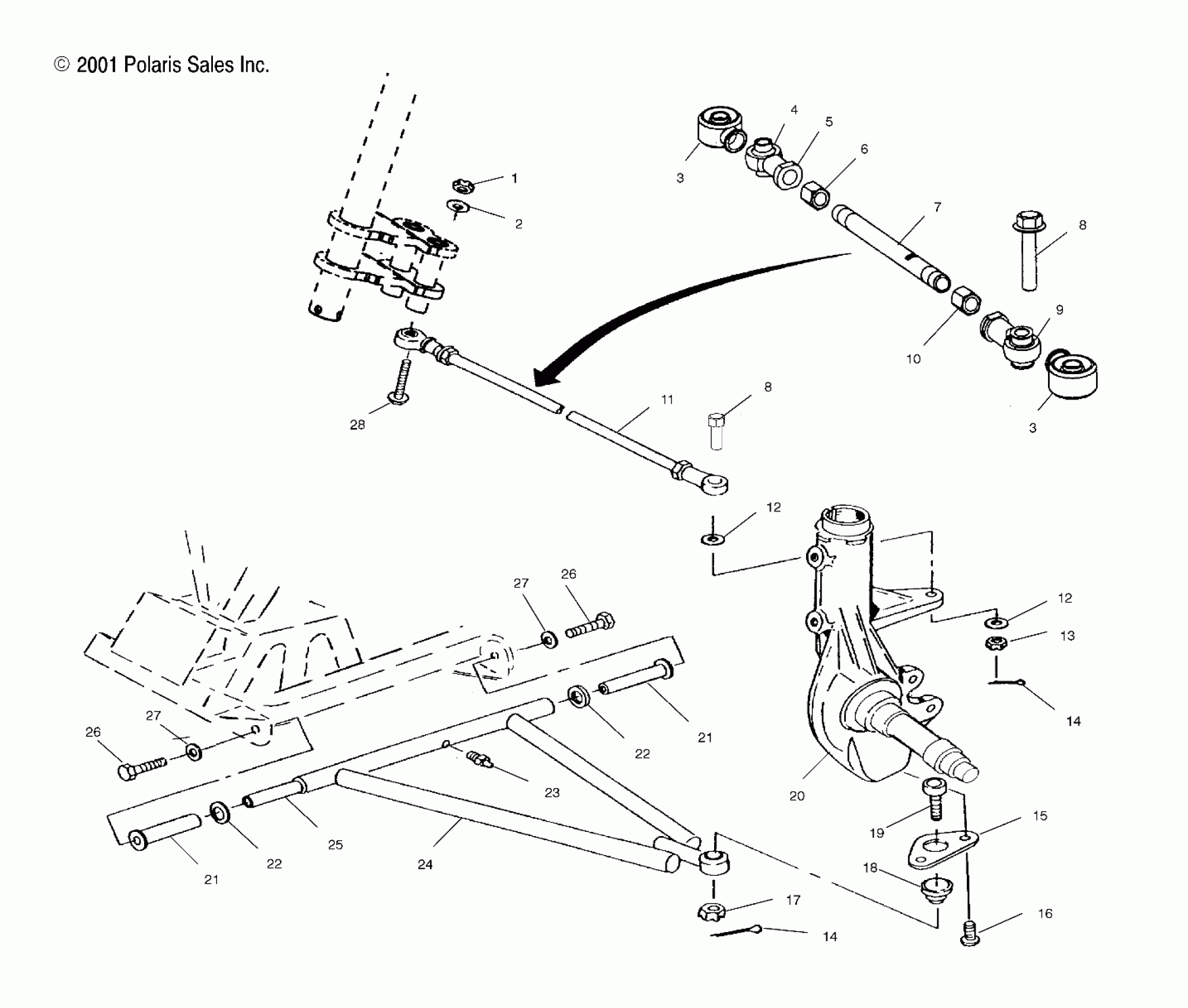

Polaris TRAIL BOSS - A02CA32AA/AB A-ARM/STRUT MOUNTING - A02CA32AA/AB (4969816981B07) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

2

Washer

7558403

$4.79

3

Boot, Seal

5411920

Unavailable

3

Boot, Seal

5411920

Unavailable

4

Boot, Seal, Rod End

5411291

Unavailable

5

Rod End, RH

7061034

$54.04

6

Nut

7542711

$2.39

7

Tie Rod

5020927

$39.99

8

Screw

7517674

Unavailable

8

Screw

7517674

Unavailable

9

Rod End, LH

7061054

Unavailable

10

Nut, Jam, LH

7547028

$2.39

11

Asm., Tie Rod [Incl. 4-9]

1820806

Unavailable

12

Washer, Flat

7556099

$1.59

12

Washer, Flat

7556099

$1.59

13

Nut

7546904

$4.79

14

Pin, Cotter

7661203

$1.49

14

Pin, Cotter

7661203

$1.49

15

Bracket, Ball Joint

5240717

Unavailable

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

17

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

18

Boot, Rubber

5410548

Unavailable

19

Joint, Ball

7080927

$76.89

20

SUPPORT, STRUT/SPINDLE [See Strut Pg. A13, Ref. 16]

-------

Unavailable

21

Bushing, A-Arm, Long

5433066

$5.01

21

Bushing, A-Arm, Long

5433066

$5.01

22

Bushing

5020677

$10.39

22

Bushing

5020677

$10.39

23

Fitting, Lubrication

7080433

$1.49

24

Kit, A-Frame, LH [Incl. 21-23,26,27]

2201605

Unavailable

24

Kit, A-Frame, RH [Incl. 21-23,26,27]

2201606

Unavailable

25

Shaft, A-Arm

5020681

Unavailable

26

Screw

7512492

$1.49

26

Screw

7512492

$1.49

27

Washer, Spring Lock

7552603

$1.49

27

Washer, Spring Lock

7552603

$1.49

28

Screw

7517930

Unavailable
