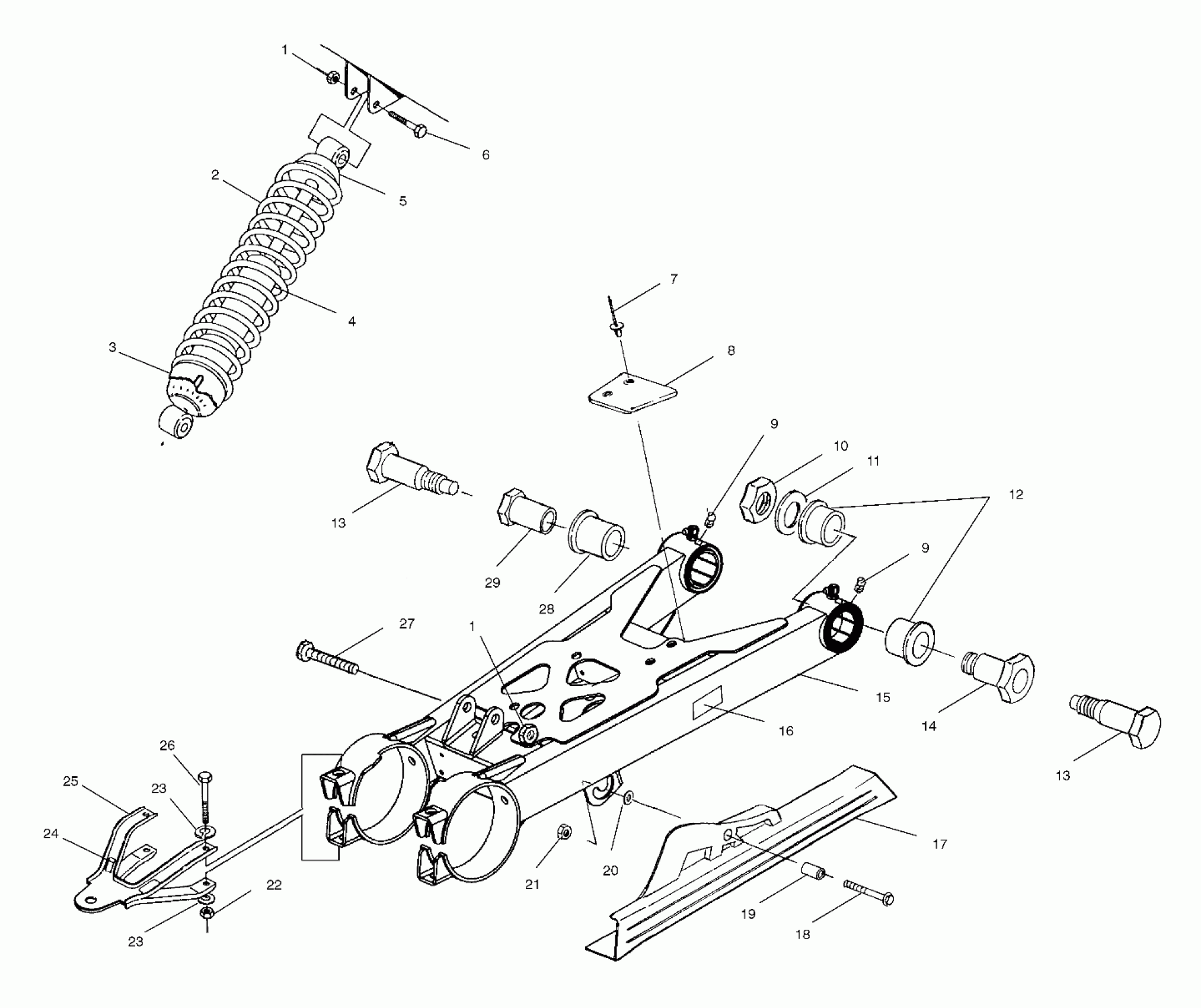

Polaris TRAIL BOSS - A01AA32AB SWING ARM/SHOCK MOUNTING - A01AA32AA (4963816381B011) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.49

1

NUT-LOCK(10)

7542439

$1.49

2

SPRING-COMP,130/165,13.8LG (If built after 3/01/01)

7041986-067

$55.99

2

SPRING,COMP,RR,BLK (If built before 3/01/01)

7041518-067

Unavailable

3

CAM,ADJUST,SPRING

5630551

$31.99

4

SHOCK-RR,CDS (If built after 3/01/01)

7041960

Unavailable

4

SHOCK-REAR,1 3/8,ATV (If built before 3/01/01)

7041817

Unavailable

5

RETAINER,SPRING

5630885

$10.03

6

BOLT(10)

7515415

$1.49

7

RIVET-POP,3/16(.376-.500)(50)

7661046

$3.99

8

GUIDE,CHAIN PAD

5432727

$31.99

9

FITTING, ZERK(10)

7080510

$5.59

9

FITTING, ZERK(10)

7080510

$5.59

10

NUT,HEX,JAM

7547082

$31.99

11

WASHER,FLAT(10)

7556035

Unavailable

12

BUSHING,SWNGARM,RHHYBRID

5433412

$8.48

13

BOLT,SWINGARM PIVOT

5131697

$35.99

13

BOLT,SWINGARM PIVOT

5131697

$35.99

14

BUSHING-SWING ARM PIVOT,RH

5133167

$35.99

15

ARM ASM,SWING (Incl. 9,12,28)

1580111

Unavailable

16

DECAL-"CHAIN FREEPLAY",HYBRID

7078572

Unavailable

17

GUARD,CHAIN,R.AXLE

5432854

$35.99

18

SCREW-FLANGED(10)

7515304

$5.59

19

Bushing

5332828

$9.59

20

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

21

NUT LOCK(10)

7542321

$1.49

22

NUT-7/16-20,NYLOK,Y

7547066

$1.59

23

WASHER(10)

7555883

$3.99

23

WASHER(10)

7555883

$3.99

24

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

25

KIT, ATV HITCH Substituted by 2873036 (Incl. 22-26)

2200472

Unavailable

26

BOLT(10)

7512576

$7.99

27

BOLT(10)

7515438

$4.79

28

BUSHING,SWNGARM,LHHYBRID

5433411

$8.48

29

Bushing, Swing Arm Pivot, LH

5133166

$31.99
