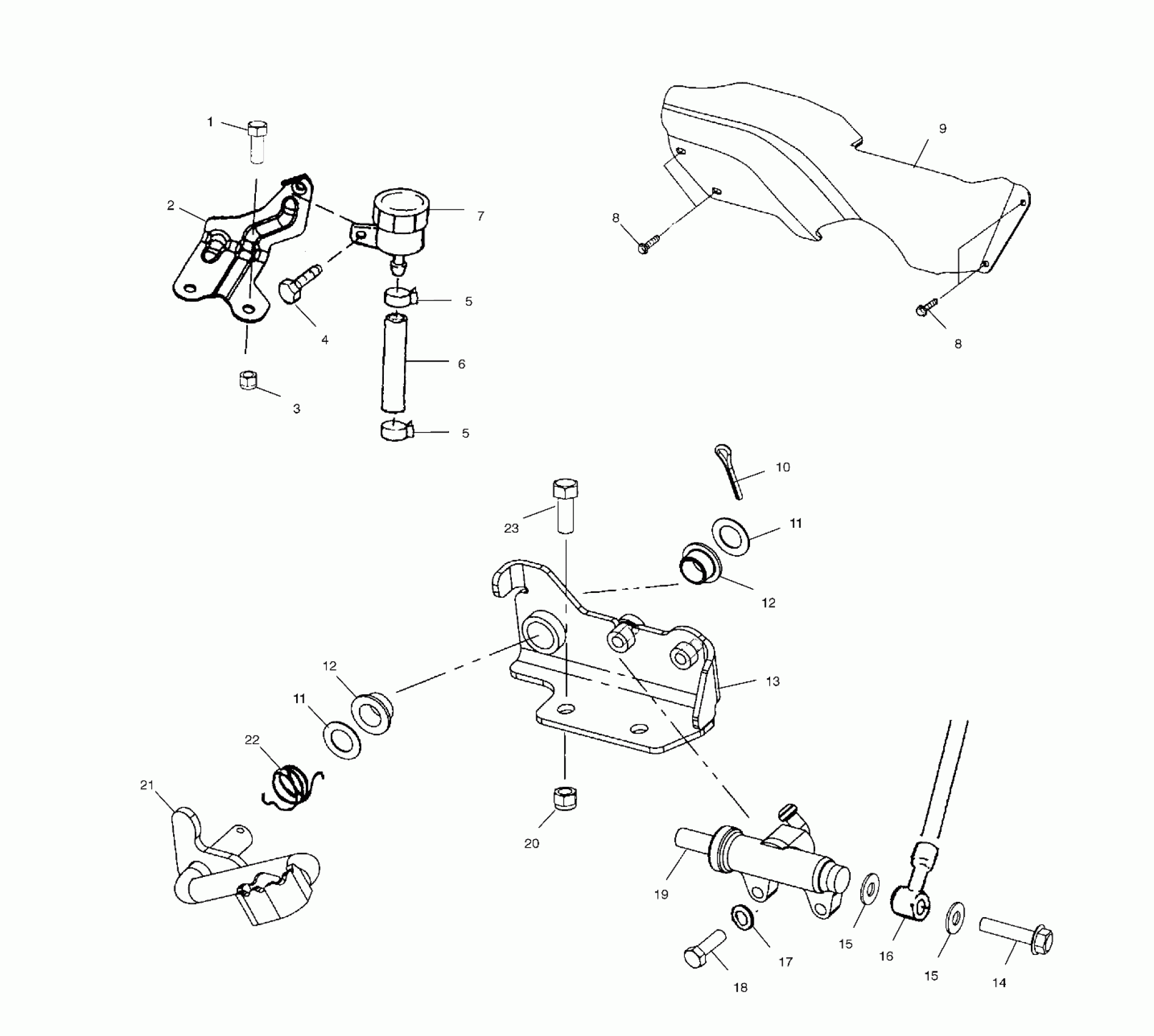

Polaris TRAIL BOSS - A01AA32AB REAR BRAKE MASTER CYLINDER - A01AA32AA (4963816381B013) Diagram

#

Description
Price

1

SCREW(10)

7512113

$3.97

2

BRKT,RESERVOIR MNT,BLK

5244091-067

$5.71

3

NUT-LOCK(10)

7542122

$1.19

4

SCREW(10)

7512208

$2.74

5

HOSE CLAMP, RED

7080003

$1.19

5

HOSE CLAMP, RED

7080003

$1.19

6

HOSE,RES.,1/4 ID,5.78 LG

1910438

$8.08

7

RESERVOIR ASM,R.BRAKE

1930854

$36.41

8

SCR-1/4-20X3/4-TR/TX/TAP-M(10)

7517916

$6.35

8

SCR-1/4-20X3/4-TR/TX/TAP-M(10)

7517916

$6.35

9

GUARD,PROP SHAFT,SIDE

5433457

$94.44

10

COTTER PIN(10)

7661401

$0.79

11

WASHER(10)

7555919

$4.99

11

WASHER(10)

7555919

$4.99

12

BUSHING-PEDAL PIVOT

5431107

$8.73

12

BUSHING-PEDAL PIVOT

5431107

$8.73

13

MOUNT,BRAKE,CDS,BLK

1910375-067

Unavailable

14

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

15

Seal

5410988

$4.84

15

Seal

5410988

$4.84

16

Line, Foot Brake, Rear (See Rear Caliper Mounting Pg. B12, Ref. 6)

----

Unavailable

17

LOCK WASHER(10)

7552801

$1.59

18

SCREW(10)

7515179

$2.38

19

BRAKE MSTR CYL,FOOT,BANJO

1910311

$174.03

20

NUT-5/16-18 NYLOK-Y

7542324

$0.79

21

BRAKE ROD,CDS,GEN 3,BLK

1910377-067

Unavailable

22

SPRING-TORSION,BRAKE

7041750

$8.89

23

BOLT(10)

7515321

Unavailable
