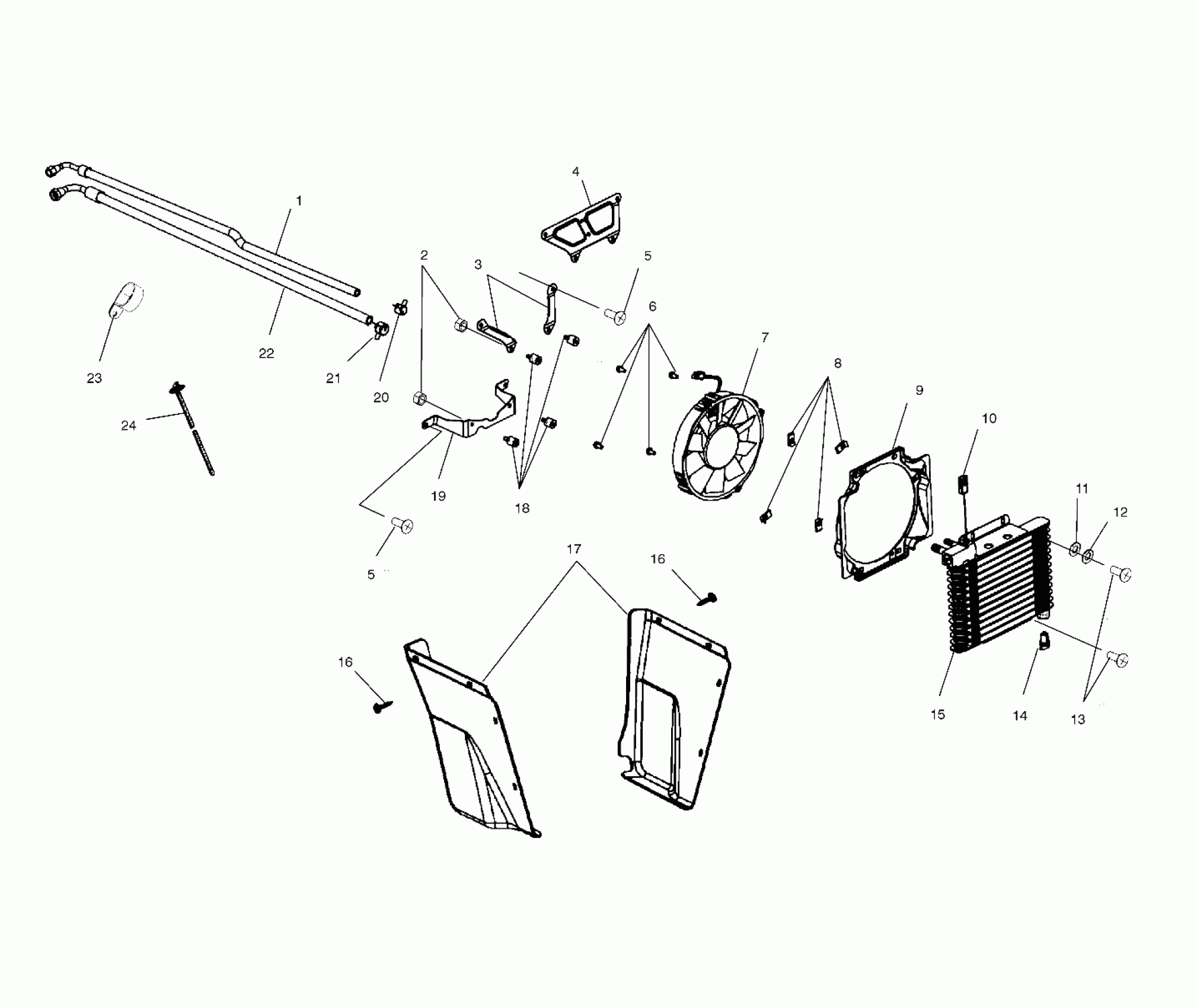

Polaris TRAIL BOSS - A01AA32AB OIL COOLING - A01AA32AA (4963816381B014) Diagram

#

Description
Price

-

KIT-OIL HOSE,INTEGRATED VALVE (Incl. 1,22)

2873649

$197.99

1

HOSE-COOLER 9/16" 90� SWIVEL

5412039

$63.99

2

NUT-LOCK(10)

7542122

$1.49

3

BRKT,COOLING FAN,BLK (If built before 9/20/00)

5242924-067

Unavailable

4

BRKT,OIL COOLER,TOP,BLK (If built after 9/20/00)

5243783-067

$48.99

5

SCREW(10)

7515133

$3.99

5

SCREW(10)

7515133

$3.99

6

Screw

7517659

$3.99

7

FAN,MOTOR

2410157

Unavailable

8

CLIP,U,ZY

7670111

Unavailable

9

SHROUD-FAN,ATV

5433353

$70.39

10

Thermister

4010274

$124.99

11

WASHER(10)

7558301

$1.49

12

LOCK WASHER(10)

7552801

$1.59

13

SCREW [No Longer Available]

7512241

Unavailable

14

VALVE-PLASTIC RAD/COOLER DRAIN

7052296

Unavailable

15

COOLER-OIL TO AIR (If built before 1/24/01)

1240064

Unavailable

16

RIVET,PLASTI-LOC.(50)

7621509

$1.49

16

RIVET,PLASTI-LOC.(50)

7621509

$1.49

17

SHROUD,OIL COOLER,RH (If built before 9/01/00)

5433790

Unavailable

17

SHROUD,OIL COOLER,LH (If built before 9/01/00)

5433789

Unavailable

17

SHROUD-OIL COOLER,LH (If built after 9/01/00)

5434034

$6.63

17

SHROUD-OIL COOLER,RH (If built after 9/01/00)

5434035

$6.63

18

MOUNT,RUBBER

5411548

$27.99

19

BRKT,LOWER,OIL COOLER ASM.

1013302

$26.39

20

CLAMP-HOSE MUBEA

7080862

Unavailable

21

CLAMP-HOSE MUBEA 1/2"

7080866

$7.19

22

HOSE-COOLER 3/4" 90� SWIVEL (If built before 1/24/01)

5412038

Unavailable

22

HOSE-COOLER,OIL Substituted by 5412039 (If built after 1/24/01)

5412110

$61.85

23

CLAMP-P,CUSHIONED,1.25" I.D.

7080869

$11.19

24

TIE-CABLE,PRESS MNT,BLK

7080999

$9.59
