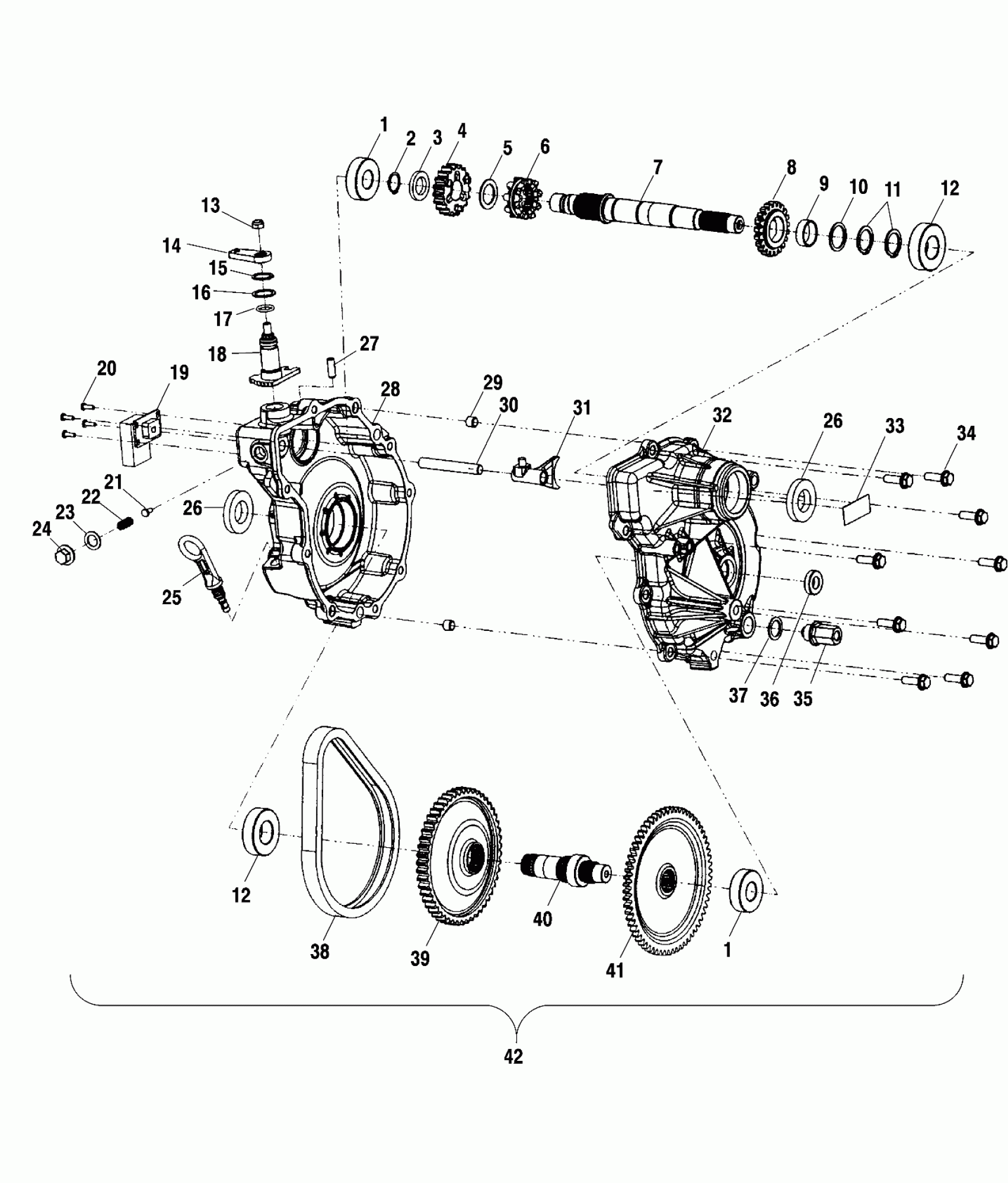

Polaris TRAIL BOSS - A01AA32AB GEARCASE - A01AA32AA (4963816381C007) Diagram

#

Description
Price

1

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

1

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

2

Ring, Retaining

3233177

$6.46

3

Washer, Thrust

3233673

$13.75

4

Sprocket, 19T

3233674

$99.74

5

Washer, Thrust

3233010

Unavailable

6

Dog, Engagement, High/Reverse

3233675

$219.99

7

Shaft, Input

3233676

Unavailable

8

Gear, 21T

3233677

$198.32

9

Bushing

3233678

$39.99

10

Washer

3233105

$7.14

11

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

12

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

12

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

13

NUT

3233961

$3.32

14

Bellcrank

3233547

$56.99

15

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

16

Washer

3233040

$9.52

17

O-Ring

3233548

$33.24

18

Shaft, Shift

3233679

$175.74

19

Switch, 3 Position

3234002

$174.99

20

SCREW

3233749

$5.65

21

Bullet, Shifting

3233680

$28.32

22

Spring, Compression

3233681

$34.99

23

Washer, Nylon

3233872

$9.52

24

Plug, Detent, Extension

3233682

$40.46

25

Dipstick

3233478

$28.32

26

Seal, Triple Lip

3233788

$32.37

26

Seal, Triple Lip

3233788

$32.37

27

TUBE, VENT

3233524

$9.99

28

Gearcase, RH

3233683

Unavailable

29

Pipe, Knock

3233529

$10.99

30

Shaft, Shift

3233684

Unavailable

31

Fork, Shift

3233685

Unavailable

32

Gearcase, LH

3233686

$432.24

33

Decal - Switch

3233636

Unavailable

34

Screw

3233252

$5.69

35

Plug, Drain

3233687

Unavailable

36

Bushing, Pivot

3233527

$39.99

37

Washer

3233035

Unavailable

38

Chain, Silent, 60P, 11W

3233111

$90.24

39

Sprocket, 51T

3233688

Unavailable

40

Shaft, Output

3233689

$198.32

41

Gear, 64T

3233690

Unavailable

42

Asm., Gearcase [Incl. 1-41]

1341306

Unavailable
