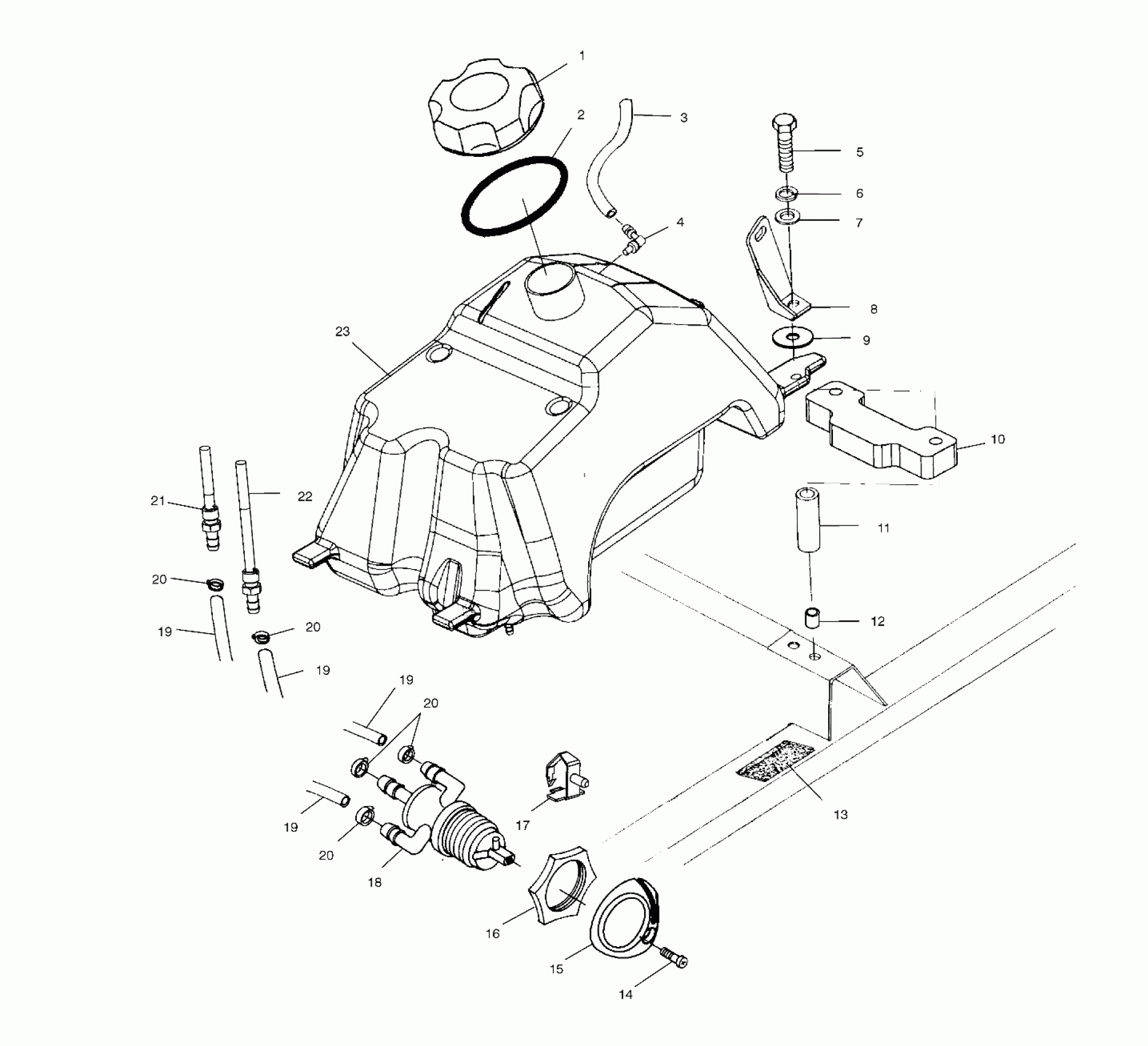

Polaris TRAIL BOSS - A01AA32AB FUEL TANK - A01AA32AA (4963816381A011) Diagram

#

Description
Price

1

CAP,GAS TANK (Incl. 2)

5433687

$20.22

2

GASKET,GAS CAP

5812123

$5.65

3

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

4

Vent, Tank

5431053

$19.99

5

BOLT(10)

7512249

Unavailable

6

LOCK WASHER(10)

7552801

$1.59

7

WASHER, FLAT(10)

7555859

$1.49

8

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

8

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

9

WASHER,(10)

7555959

$4.99

10

SEAL,FOAM 2" THK

5811951

$32.37

11

Tube

5333809

Unavailable

12

NUTSERT,HEX(10)

7547069

$3.99

13

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

14

SCREW(10)

7517505

$1.59

15

KNOB,FUEL VALVE CONTOURED,ATV

5433431

Unavailable

16

NUT,FUELVALVE,ATV

5432733

Unavailable

17

CLIP-ROUTING

7670109

$2.39

18

VALVE,3-WAY,HORIZ PORTS

7052154

$39.99

19

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

19

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

19

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

19

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

20

HOSE CLAMP, RED

7080003

$1.49

20

HOSE CLAMP, RED

7080003

$1.49

20

HOSE CLAMP, RED

7080003

$1.49

20

HOSE CLAMP, RED

7080003

$1.49

21

FITTING,FUEL OUT,RES.,Z

7052149

$23.99

22

FITTING,FUEL OUT,MAIN,Y

7052146

$27.99

23

ASM-FUEL TANK (Incl. 4,21,22)

2520233

Unavailable
