Description

Price

1

Support, Strut and Spindle (See Strut Pg. B2, Ref. 17)

-------

Unavailable

2

SEAL,FRONT HUB

3610020

Unavailable

3

BEARING,BALL

3513519

$19.30

3

BEARING,BALL

3513519

$19.30

4

DISC,BRAKE,7.21 OD,.150

5243675

Unavailable

5

HUB,WHEEL,2WD. Substituted by 1520453 (If built before 9/18/00)

5130940

Unavailable

5

HUB-WHEEL 2WD,MACHINED (If built after 9/18/00)

5132627

Unavailable

6

TIRE,23X7-10,TITAN (23x7-10)

5411264

Unavailable

7

DESC NOT_AVAILABLE (AC)

1520175-067

Unavailable

7

RIM,FRT,(SILVER) (AA)(AB)

1520175-117

Unavailable

8

VALVE-RIM

1525017

$5.59

9

SPACER, HUB,FRONT

5010256

Unavailable

10

WASHER(10)

7555721

$1.49

11

NUT(10)

7542712

$9.59

12

COTTER PIN(10)

7661407

$4.79

13

SCREW(10) (If built after 9/18/00)

7511866

$4.79

14

CAP, HUB (If built before 9/18/00)

5431018

$14.39

14

CAP,HUB,2WD (If built after 9/18/00)

5433868

$7.43

15

O RING

5410470

$2.41

16

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

17

STUD(10)

7515523

$3.19

18

BOLT(10)

7512325

$2.39

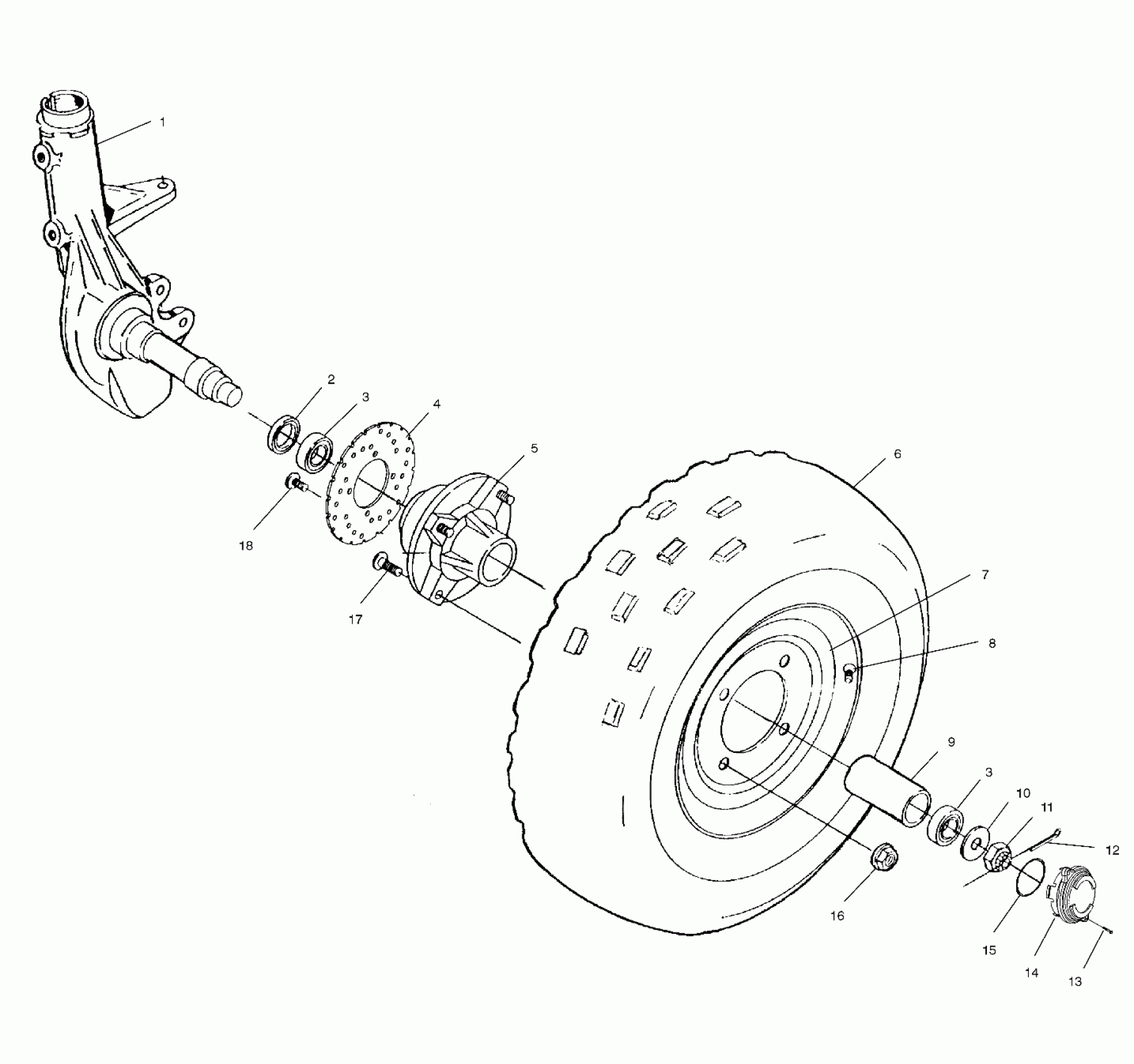

Polaris TRAIL BOSS - A01AA32AB FRONT WHEEL - A01AA32AA (4963816381B004) Diagram

Support, Strut and Spindle (See Strut Pg. B2, Ref. 17)

SEAL,FRONT HUB

BEARING,BALL

BEARING,BALL

DISC,BRAKE,7.21 OD,.150

HUB,WHEEL,2WD. Substituted by 1520453 (If built before 9/18/00)

HUB-WHEEL 2WD,MACHINED (If built after 9/18/00)

TIRE,23X7-10,TITAN (23x7-10)

DESC NOT_AVAILABLE (AC)

RIM,FRT,(SILVER) (AA)(AB)

VALVE-RIM

SPACER, HUB,FRONT

WASHER(10)

NUT(10)

COTTER PIN(10)

SCREW(10) (If built after 9/18/00)

CAP, HUB (If built before 9/18/00)

CAP,HUB,2WD (If built after 9/18/00)

O RING

NUT-HXFL-3/8-24 B ZTB P-A

STUD(10)

BOLT(10)
