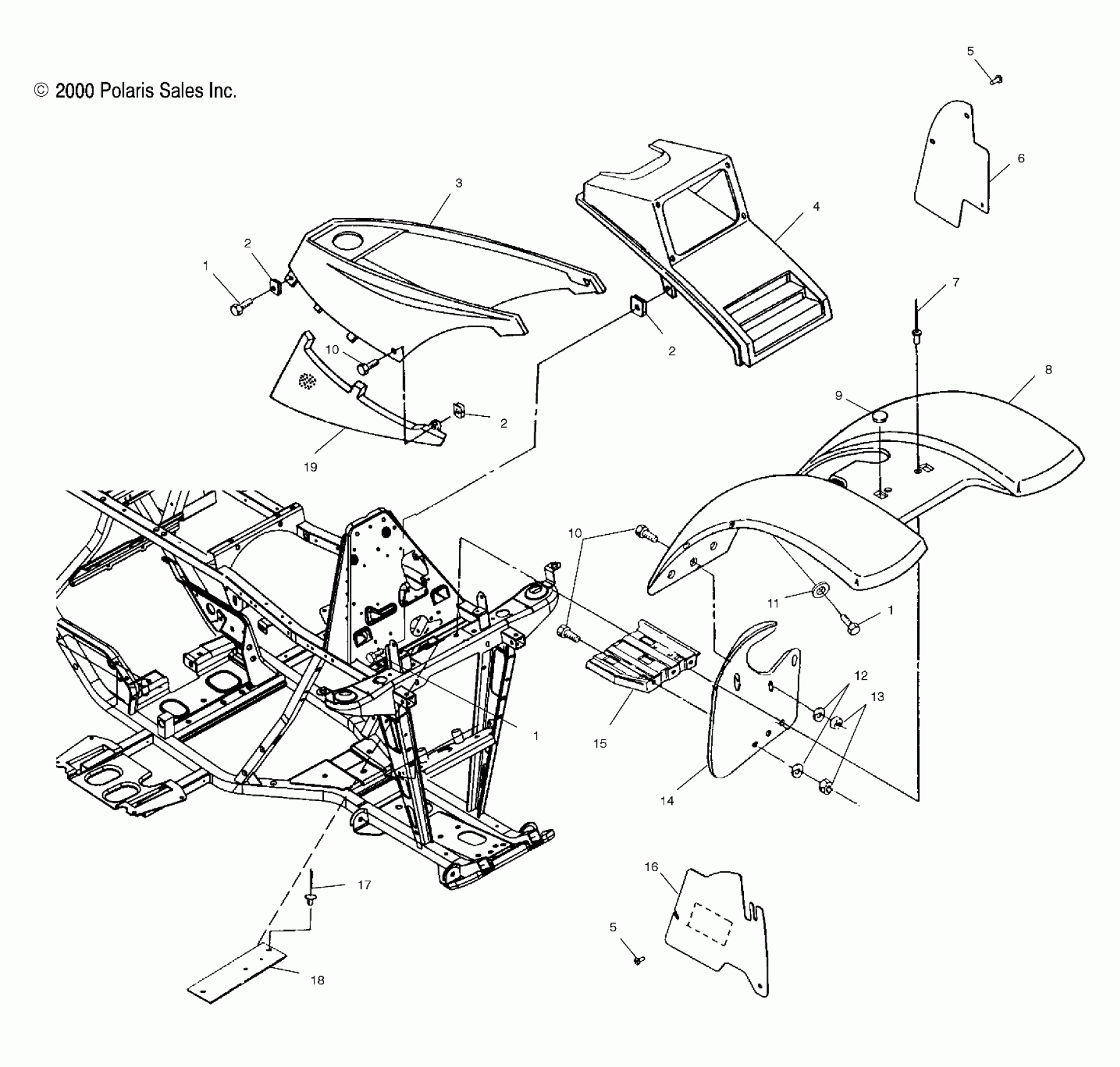

Polaris TRAIL BOSS - A01AA32AB FRONT CAB - A01AA32AA (4963816381A003) Diagram

#

Description
Price

1

BOLT(10)

7512232

$1.19

1

BOLT(10)

7512232

$1.19

1

BOLT(10)

7512232

$1.19

2

NUT, SPEED(10)

7670060

$3.97

2

NUT, SPEED(10)

7670060

$3.97

2

NUT, SPEED(10)

7670060

$3.97

3

COVER,FUEL TANK,WHITE (AA)(AB)

5431197-133

Unavailable

3

COVER-FUEL TANK,MED YLW (AC)

5431197-053

Unavailable

4

Cover, Headlamp, Red (See Headlight Pg. A10, Ref. 5)

----

Unavailable

5

CLIP-PLASTIC DART, NYLON

7670088

$1.59

5

CLIP-PLASTIC DART, NYLON

7670088

$1.59

6

SHIELD-SPLASH,GEN 2,LH

5434110

Unavailable

7

RIVET(50)

7621460

$1.19

8

CAB,FRONT,SVC,WHITE (Incl. Warning Decals)(AA)(AB)

2632310-133

$246.03

8

CAB,FRONT,SVC,MED YLW (Incl. Warning Decals (AC)

2632310-053

$229.37

9

PLUG, RACK HOLE

5430887

Unavailable

10

BOLT, BLACK(10)

7512282

Unavailable

10

BOLT, BLACK(10)

7512282

Unavailable

11

WASHER(10)

7558301

$1.19

12

WASHER, FLAT(10)

7555859

$1.19

13

NUT-LOCK(10)

7542122

$1.19

14

MUDFLAP-FRONT,TRAIL BOSS,LH

5850155

$38.41

14

MUDFLAP-FRONT,TRAILBOSS,RH

5812205

Unavailable

15

Footpad (See Bumper and Rack Mounting Pg. A5, Ref. 28)

----

Unavailable

16

TAPE-FOIL,3"X5"

5812246

$7.99

16

SHIELD,SPLASH,XPLORER 250

5433855

$25.40

17

RIVET,3/16X.402(50)

7621432

$1.19

18

STRAP,MTG,FUELPUMP

5211547-067

Unavailable

19

COVER-SIDE PANEL,GEN 2,LH,PRED (AA)(AB)

5433578-136

Unavailable

19

COVER-SIDE RH W/VENT,RED (AA)(AB)

5433403-136

Unavailable

19

COVER-SIDE PANEL,GEN 2,LH,MYLW (AC)

5433578-053

Unavailable

19

COVER-SIDE,RH,W/VENT,MED YLW (AC)

5433403-053

Unavailable
