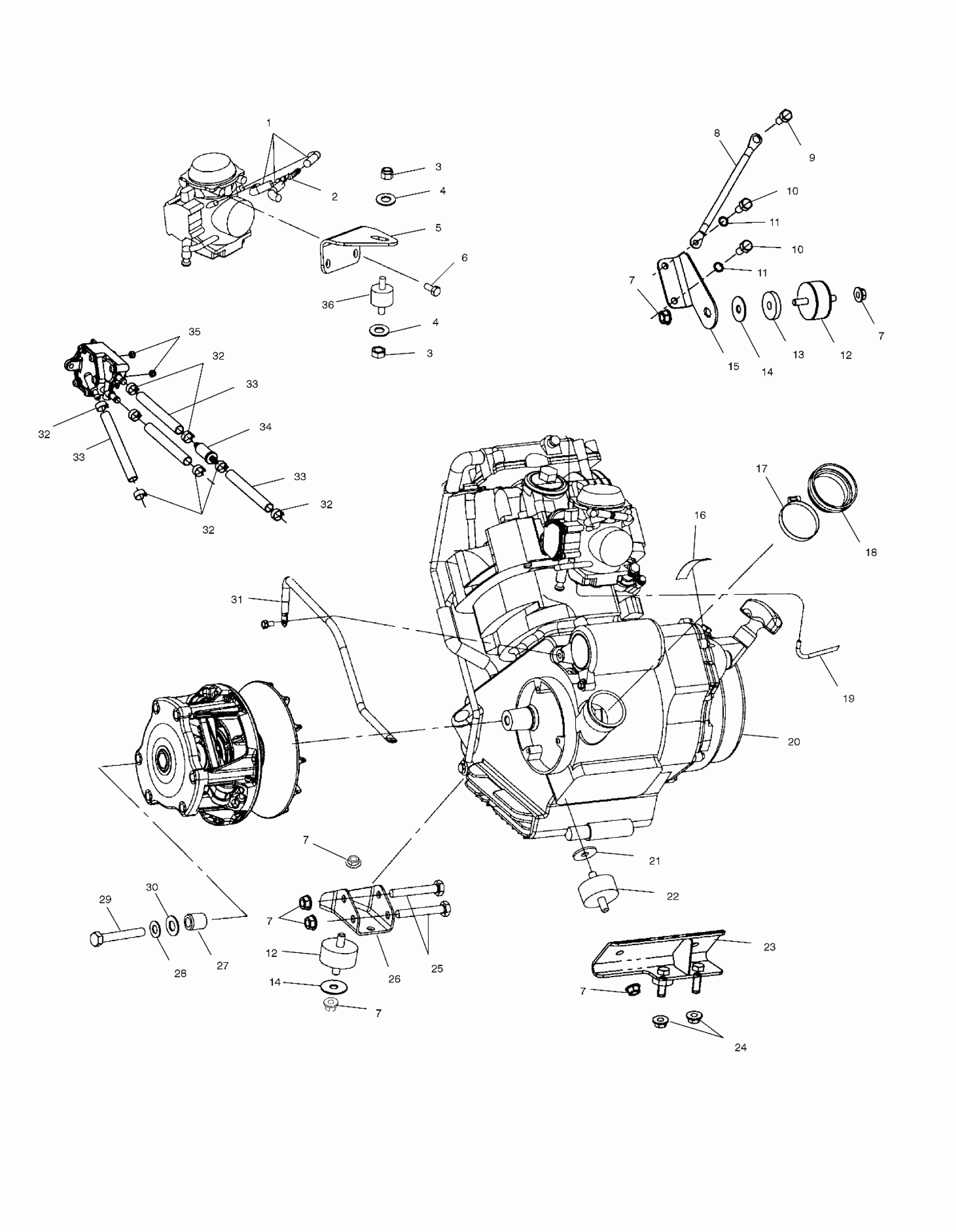

Polaris TRAIL BOSS - A01AA32AB ENGINE MOUNTING - A01AA32AA (4963816381A007) Diagram

#

Description
Price

1

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

2

FITTING, TEE

7052075

$9.59

3

NUT-LOCK(10)

7542122

$1.49

3

NUT-LOCK(10)

7542122

$1.49

4

WASHER(10)

7558301

$1.49

4

WASHER(10)

7558301

$1.49

5

BRKT,CARB,MOUNT,BLK

5243747-067

Unavailable

6

SCREW & WASHER(10)

3084205

$3.99

7

NUT

7547108

$4.79

7

NUT

7547108

$4.79

7

NUT

7547108

$4.79

7

NUT

7547108

$4.79

7

NUT

7547108

$4.79

7

NUT

7547108

$4.79

8

CABLE,GND-ENGINE

4010132

Unavailable

9

BOLT(10)

7512232

$1.49

10

BOLT(10)

7512315

$4.79

10

BOLT(10)

7512315

$4.79

11

LOCK WASHER(10)

7552901

$1.49

11

LOCK WASHER(10)

7552901

$1.49

12

MOUNT,RUBBER,ENGINE,45 DURO

3021181

Unavailable

12

MOUNT,RUBBER,ENGINE,45 DURO

3021181

Unavailable

13

INSULATOR,MOTOR MT.

5430802

$27.99

14

WASHER(10)

7555823

$3.99

14

WASHER(10)

7555823

$3.99

15

BRKT,ENGINE MOUNT,TOP,325,BLK

5243307-067

Unavailable

16

DECAL,DRAIN RECOIL

7078577

Unavailable

17

CLAMP, NARROW BAND(10)

7080511

$4.79

18

BOOT-CLUTCH INTAKE

5411721

Unavailable

19

DESC NOT_AVAILABLE

8360009-100

Unavailable

20

ENG.ES32PFE06 Substituted by 1211728 (ES32PFE06/07)(If built before 12/04/00)NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and cranks

3087021

Unavailable

20

ENGINE-ES32PFE07,SB Substituted by 1211713 (ES32PFE08)(If built after 12/04/00) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and cr

3087074

Unavailable

21

WASHER, FLAT(10)

7555815

$3.99

22

MOUNT,RUBBER,FRONT

3110046

Unavailable

23

MOUNT,ENGINE,REAR,BLK

1013413-067

Unavailable

24

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

25

BOLT(10)

7515417

$4.79

26

MOUNT-LOWER FRONT 325,BLK

5243288-067

Unavailable

27

BUSHING-.437 X.770 X.50

5430261

$7.19

28

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

29

BOLT(10)

7512566

$30.79

30

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

31

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

32

HOSE CLAMP, RED

7080003

$1.49

32

HOSE CLAMP, RED

7080003

$1.49

32

HOSE CLAMP, RED

7080003

$1.49

32

HOSE CLAMP, RED

7080003

$1.49

33

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

33

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

33

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

34

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

35

NUT-M5X.8,HX NYL-Y

7546601

$1.49

36

MOUNT,CARB.

3110050

$12.99
