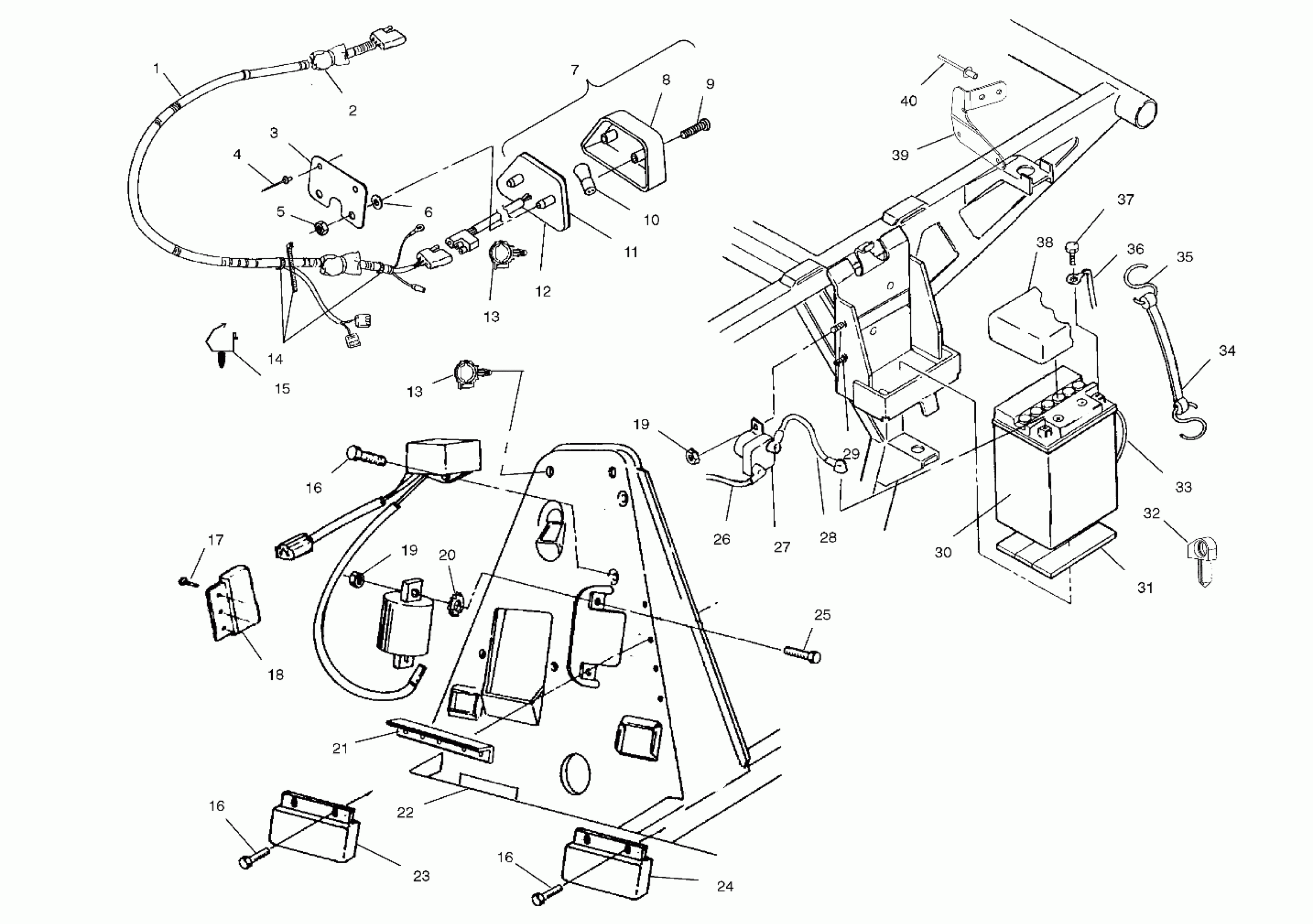

Polaris TRAIL BOSS - A01AA32AB ELECTRICAL/TAILLIGHT - A01AA32AA (4963816381C004) Diagram

#

Description
Price

1

HARNESS-MAIN,2001 T.BOSS 325

2460858

$307.99

2

KIT-CIRCUT BREAKER,FAN

2201795

$68.79

3

ISOLATOR,TAILLIGHT

5211391-067

$13.39

4

RIVET(50)

7621470

$3.17

5

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

6

WASHER,NYLON(10)

7555916

$1.59

7

TAIL LIGHT ASM.

2432034

$55.99

8

LENS,TAILLIGHT

4032046

$32.37

9

Screw, Taillight

4032029

$4.79

10

BULB,TAILLIGHT

4030043

$6.46

11

GASKET,TAILLIGHT

4032045

$4.03

12

BACKING,TAILLIGHT

4032064

$83.99

13

CLIP,ROSEBUD

4020149

$6.39

13

CLIP,ROSEBUD

4020149

$6.39

14

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

CLIP-ROUTING

7670109

$2.39

16

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

16

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

16

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

17

SCREW(10)

7512017

$4.79

18

LIMITER,RPM,350 HZ,LR44-3

4010137

Unavailable

19

NUT(10)

7541925

$1.49

19

NUT(10)

7541925

$1.49

20

WASHER(10)

7571602

$4.79

21

SINK,HEAT

5132214

$8.23

22

EDGE TRIM-BLACK,04 CM

8360012-04

Unavailable

23

RECTIFIER/REGULATOR,LR-35

4060191

Unavailable

24

SWITCH-THERMISTER,LR-60

4010249

Unavailable

25

SCREW(10)

7512007

$3.99

26

CABLE,SOL/STARTER

4010093

$47.99

27

Switch, Magnetic (See Magneto Pg. D3, Ref. 10)

-------

Unavailable

28

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

29

SCREW(10)

7512027

$1.49

30

Battery

4140006

$99.99

31

PAD-BATTERY

5810290

$7.27

32

CLIP,SILENCER,(10)

7670102

$2.39

33

TUBE,BATTERY VENT

5432077

Unavailable

34

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

35

HOOK-BATT.H/D(10)

7010032

$1.59

36

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

37

BOLT,BATT,KIT(SHORT)

2200361

$3.99

38

COVER,BATTERY

5431769

$14.39

39

BRKT,MOUNT TAILLIGHT,RVTD,BLK

5244261-067

Unavailable

40

RIVET,INTERLOCK,B(50)

7661638

$1.49
