Description

Price

1

BUSHING, STARTER

3083669

Unavailable

2

PIN, DOWEL Substituted by 3086838

3080103

$7.14

3

ASM-CRANKCASE Substituted by 3087124 (Incl. 1-5,9,13,16,19,20)(AA)

3087063

Unavailable

3

ASM-CRANKCASE Substituted by 3087125 (Incl. 1-5,9,13,16,19,20)(AB)(AC)

3087127

Unavailable

4

PLUG, BLIND (AB)

3084862

Unavailable

5

Pin, Dowel

3084840

Unavailable

6

BEARING-BALL

3086395

Unavailable

7

PIN,STRAIGHT

3084838

Unavailable

8

SCREW & WASHER(10)

3084205

$3.99

9

SEAL, OIL

3084839

$27.99

10

GAUGE-OIL (AB)(AC)

3087128

Unavailable

10

GAUGE-OIL (AA)

3087064

Unavailable

11

O-Ring

3087065

$6.39

12

Union

3087066

$39.99

13

Plug

3086397

Unavailable

14

UNION (If built after 1/24/01)

3087066

$39.99

14

UNION (If built before 1/24/01)

3087067

$22.23

15

UNION,OIL PUMP

3084849

Unavailable

16

BOLT,FLANGE

3086398

Unavailable

17

PLUG Substituted by 3086749

3083453

Unavailable

18

GASKET

3082956

$4.84

19

BOLT,FLANGE

3084841

Unavailable

20

BOLT,FLANGE

3086399

$9.59

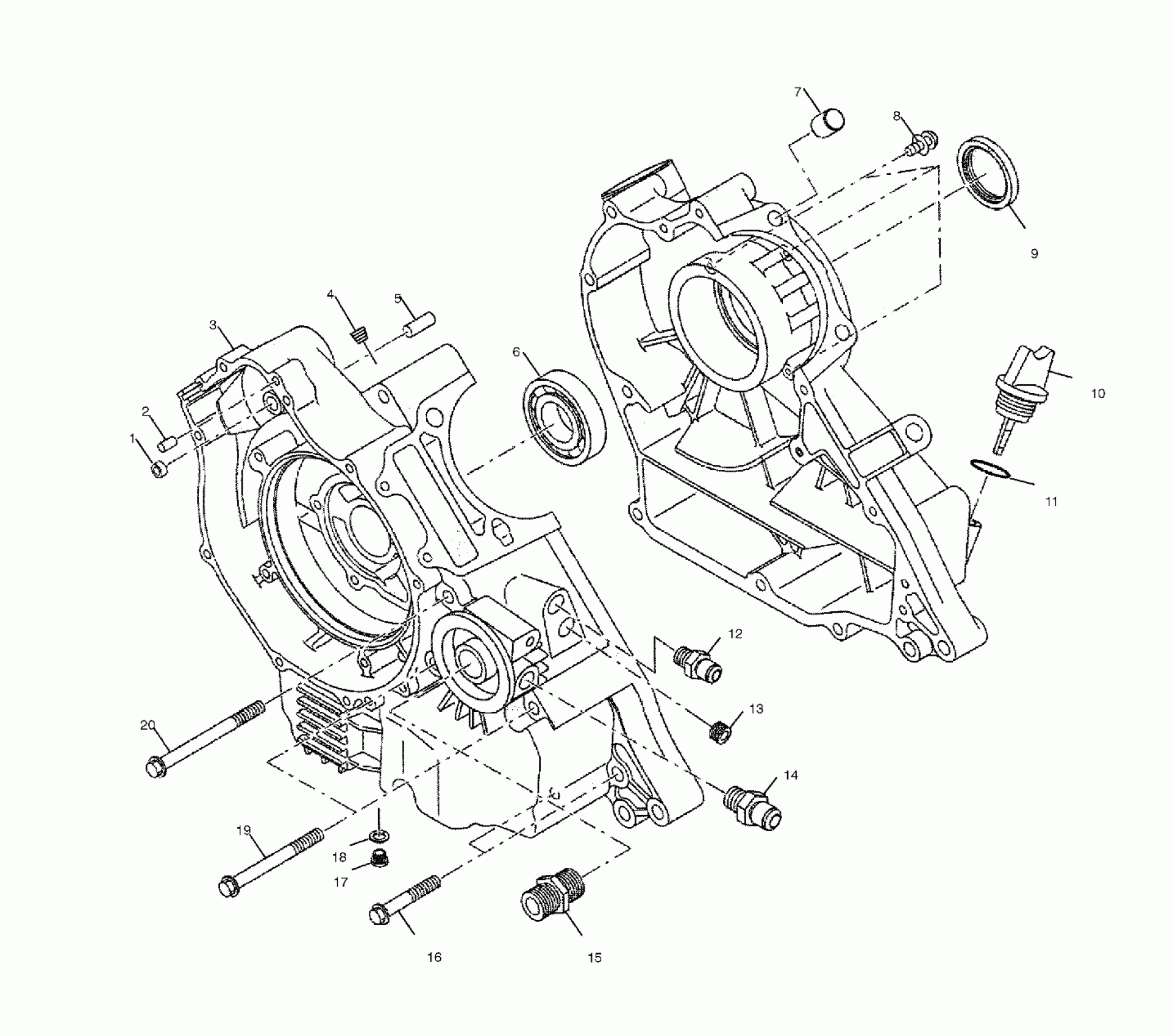

Polaris TRAIL BOSS - A01AA32AB CRANKCASE - A01AA32AA (4963816381C009) Diagram

BUSHING, STARTER

PIN, DOWEL Substituted by 3086838

ASM-CRANKCASE Substituted by 3087124 (Incl. 1-5,9,13,16,19,20)(AA)

ASM-CRANKCASE Substituted by 3087125 (Incl. 1-5,9,13,16,19,20)(AB)(AC)

PLUG, BLIND (AB)

Pin, Dowel

BEARING-BALL

PIN,STRAIGHT

SCREW & WASHER(10)

SEAL, OIL

GAUGE-OIL (AB)(AC)

GAUGE-OIL (AA)

O-Ring

Union

Plug

UNION (If built after 1/24/01)

UNION (If built before 1/24/01)

UNION,OIL PUMP

BOLT,FLANGE

PLUG Substituted by 3086749

GASKET

BOLT,FLANGE

BOLT,FLANGE
