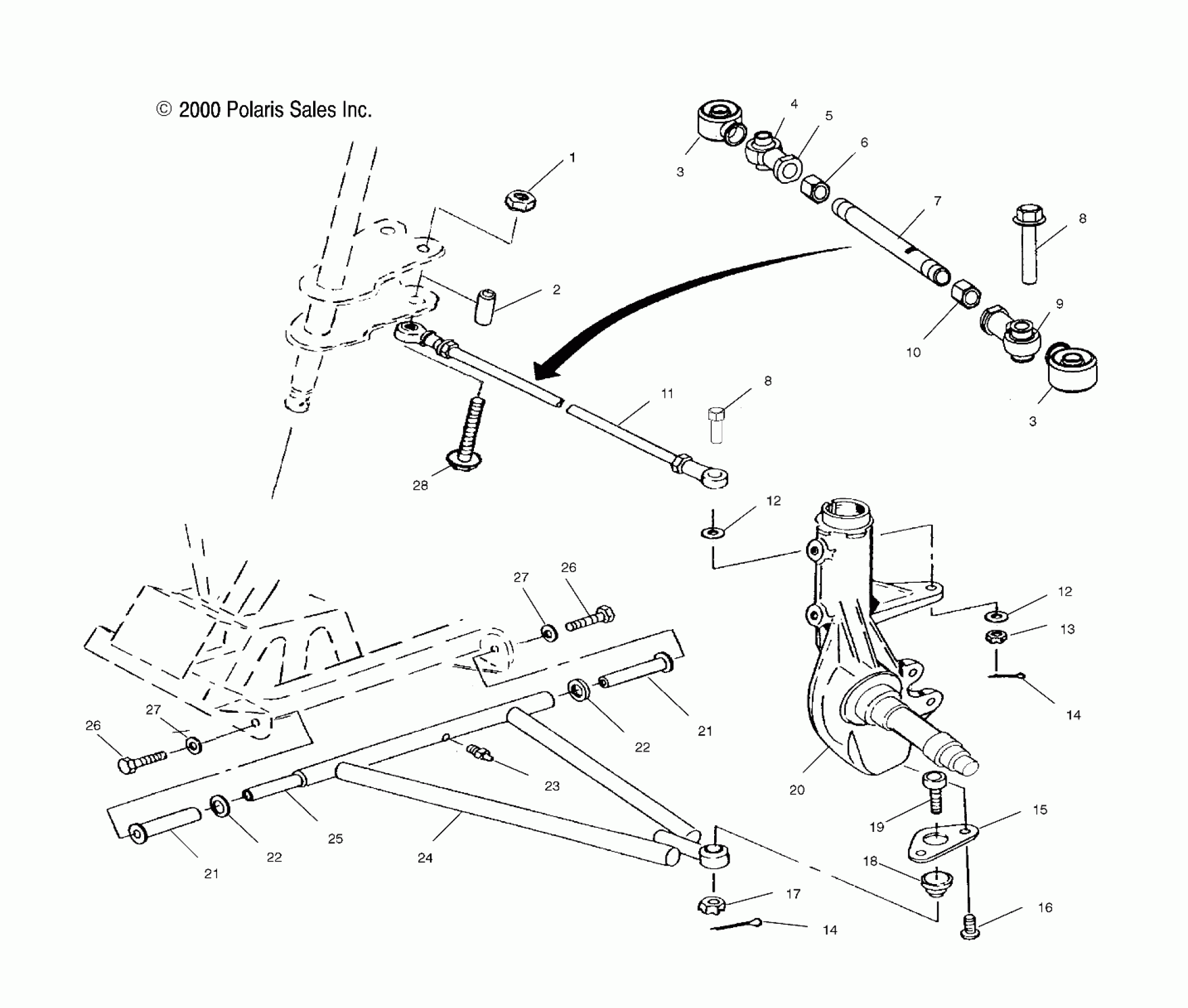

Polaris TRAIL BOSS - A01AA32AB A-ARM/STRUT MOUNTING - A01AA32AA (4963816381B003) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

$3.99

2

BUSHING

5333367

$6.63

3

BOOT,SEAL,ROD END,10MM

5411920

Unavailable

3

BOOT,SEAL,ROD END,10MM

5411920

Unavailable

4

SEAL,BOOT,ROD END,1/2 IN

5411291

Unavailable

5

ROD END,RH

7061034

$54.04

6

NUT-JAM(10)

7542711

$2.39

7

ROD,TIE

5020927

$39.99

8

BOLT-M10X1.25X57 HX WASH HD Substituted by 7517909

7517674

Unavailable

8

BOLT-M10X1.25X57 HX WASH HD Substituted by 7517909

7517674

Unavailable

9

ROD,END,10MM,1/2-20LH,42 DEG

7061054

Unavailable

10

NUT,LH,JAM(10)

7547028

$2.39

11

TIE,ROD,1/2-20X14.0,ASM. (Incl. 4-9)

1820806

Unavailable

12

Washer

7556099

$1.59

12

Washer

7556099

$1.59

13

NUT, CASTLE(10)

7546904

$4.79

14

PIN COTTER(10)

7661203

$1.49

14

PIN COTTER(10)

7661203

$1.49

15

BRACKET,BALLJOINT

5240717

Unavailable

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

17

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

18

Boot, Rubber

5410548

Unavailable

19

BALL-JOINT,52 DEG,ATV

7080927

$76.89

20

Support, Strut/Spindle (See Strut Pg. B2, Ref. 17)

-------

Unavailable

21

BUSHING,A ARM,LONG

5433066

$5.01

21

BUSHING,A ARM,LONG

5433066

$5.01

22

BUSHING,A-ARM SPACER(10)

5020677

$10.39

22

BUSHING,A-ARM SPACER(10)

5020677

$10.39

23

ZERK,FITTING,THREADED(10)

7080433

$1.49

24

A-FRAME,KIT,LH (1541442) (Incl. 21-23,26,27)

2201605

Unavailable

24

A-FRAME,KIT,RH (1541443) (Incl. 21-23,26,27)

2201606

Unavailable

25

Shaft, A-Arm

5020681

Unavailable

26

SCREW(10)

7512492

$1.49

26

SCREW(10)

7512492

$1.49

27

WASHER(10)

7552603

$1.49

27

WASHER(10)

7552603

$1.49

28

BOLT (10)

7517527

$29.99
