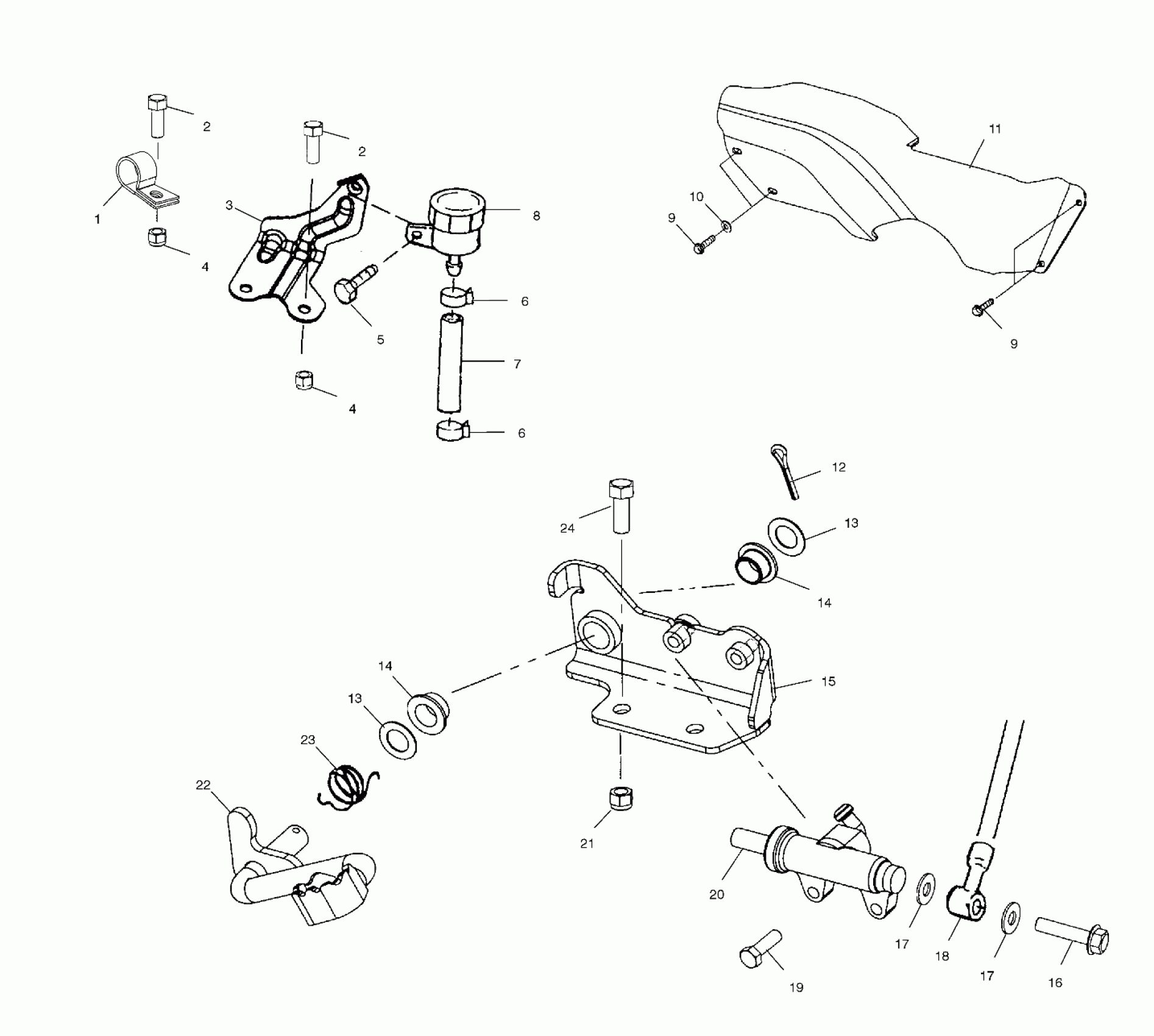

Polaris TRAIL BOSS - A00AA32AB REAR BRAKE MASTER CYLINDER - A00AA32AB (4960076007B013) Diagram

#

Description
Price

1

CLAMP-HOSE,.625 DIA VNL COATED

7080880

$5.56

2

SCREW(10)

7512113

$3.97

2

SCREW(10)

7512113

$3.97

3

BRKT,RESERVOIR MNT,BLK

5244091-067

$5.71

4

NUT-LOCK(10)

7542122

$1.19

4

NUT-LOCK(10)

7542122

$1.19

5

SCREW(10)

7512208

$2.74

6

HOSE CLAMP, RED

7080003

$1.19

6

HOSE CLAMP, RED

7080003

$1.19

7

HOSE,RES.,1/4 ID,5.78 LG

1910438

$8.08

8

RESERVOIR ASM,R.BRAKE

1930854

$36.41

9

BOLT(10)

7512232

$1.19

9

BOLT(10)

7512232

$1.19

10

WASHER(10)

7558301

$1.19

11

GUARD-PROPSHAFT,SIDE,T BOSS Substituted by 5433457

5433887

$94.44

12

COTTER PIN(10)

7661401

$0.79

13

WASHER(10)

7555919

$4.99

13

WASHER(10)

7555919

$4.99

14

BUSHING-PEDAL PIVOT

5431107

$8.73

14

BUSHING-PEDAL PIVOT

5431107

$8.73

15

MOUNT,BRAKE,CDS,BLK

1910375-067

Unavailable

16

BOLT,BANJO,BRAKE

1930674

Unavailable

17

Seal

5410988

$4.84

17

Seal

5410988

$4.84

18

Line, Foot Brake, Rear (See Rear Caliper Mounting Pg. B12, Ref. 5)

----

Unavailable

19

SCREW(10)

7515179

$2.38

20

BRAKE MSTR CYL,FOOT,BANJO

1910311

$174.03

21

NUT-5/16-18 NYLOK-Y

7542324

$0.79

22

BRAKE ROD,CDS,GEN 3,BLK

1910377-067

Unavailable

23

SPRING-TORSION,BRAKE

7041750

$8.89

24

BOLT(10)

7512383

$1.98
