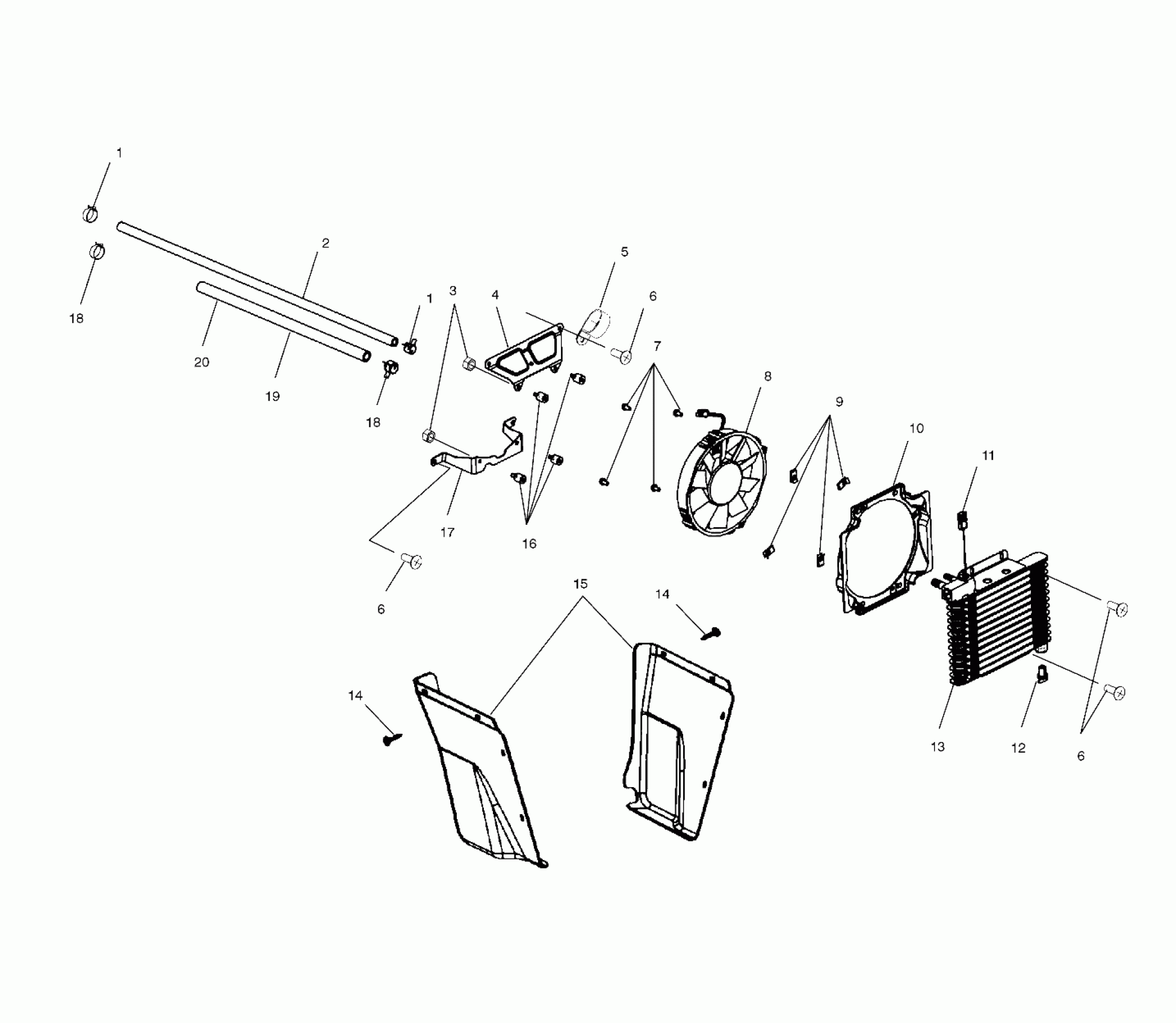

Polaris TRAIL BOSS - A00AA32AB OIL COOLING (If built after 1/1/00) - A00AA32AB (4960076007C001) Diagram

#

Description
Price

1

CLAMP-HOSE MUBEA

7080862

Unavailable

1

CLAMP-HOSE MUBEA

7080862

Unavailable

2

HOSE,COOLER INLET Substituted by 2873649

5411813

$196.01

3

NUT-LOCK(10)

7542122

$1.49

4

BRKT,OIL COOLER,TOP,BLK

5243783-067

$48.99

5

CLAMP-P,CUSHIONED,1.25" I.D.

7080869

$11.19

6

SCREW(10)

7515158

$4.79

6

SCREW(10)

7515158

$4.79

6

SCREW(10)

7515158

$4.79

7

Screw

7517659

$3.99

8

FAN,MOTOR

2410157

Unavailable

9

CLIP,U,ZY

7670111

Unavailable

10

SHROUD-FAN,ATV

5433353

$70.39

11

Thermister

4010274

$124.99

12

VALVE-PLASTIC DRAIN

7052244

Unavailable

13

COOLER-OIL TO AIR

1240064

Unavailable

14

RIVET,PLASTI-LOC.(50)

7621509

$1.49

14

RIVET,PLASTI-LOC.(50)

7621509

$1.49

15

SHROUD,OIL COOLER,RH

5433790

Unavailable

15

SHROUD,OIL COOLER,LH

5433789

Unavailable

16

MOUNT,RUBBER (If built after 2/18/00)

5411548

$27.99

16

MNT,RUBBER,CARB,DURO 55 (If built before 2/18/00)

3021186

$11.99

17

BRKT,OIL COOLER,LOWER,BLK

5244069-067

Unavailable

18

CLAMP-HOSE MUBEA 1/2"

7080866

$7.19

18

CLAMP-HOSE MUBEA 1/2"

7080866

$7.19

19

HOSE,OIL COOLER OUTLET Substituted by 2873649

5411768

$196.01

20

TUBING-CONVOLUTED,5/8 ID,7CM

8450086-07

Unavailable
