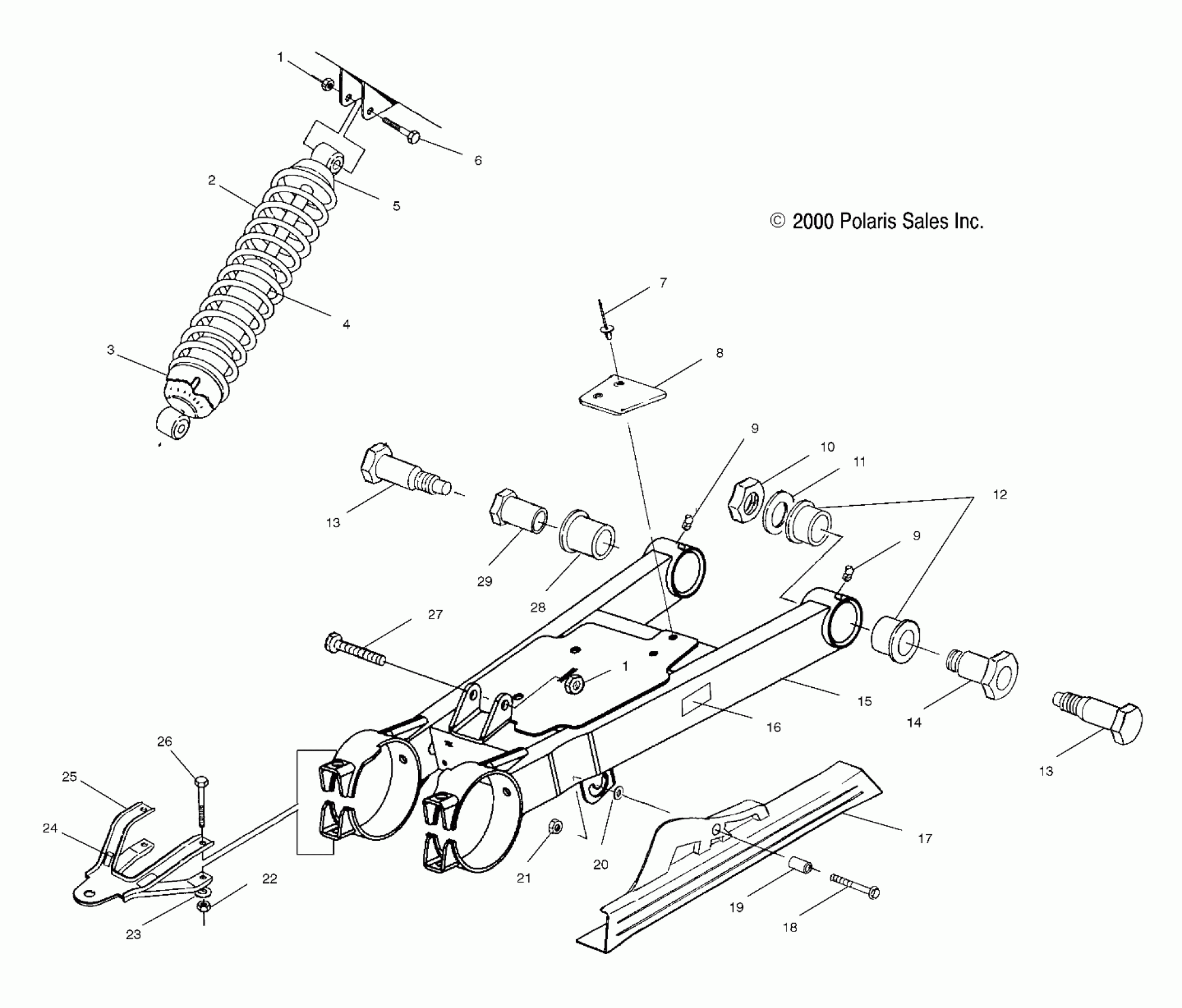

Polaris TRAIL BOSS - A00AA32AA SWING ARM/SHOCK MOUNTING - A00AA32AA (4949914991B011) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.49

1

NUT-LOCK(10)

7542439

$1.49

2

SPRING,COMP,RR,BLK

7041518-067

Unavailable

3

CAM,ADJUST,SPRING

5630551

$31.99

4

SHOCK-REAR,1 3/8,ATV

7041817

Unavailable

5

RETAINER,SPRING

5630885

$10.03

6

BOLT(10)

7515415

$1.49

7

RIVET-POP,3/16(.376-.500)(50)

7661046

$3.99

8

GUIDE,CHAIN PAD

5432727

$31.99

9

FITTING, ZERK(10)

7080510

$5.59

9

FITTING, ZERK(10)

7080510

$5.59

10

NUT,HEX,JAM

7547082

$31.99

11

WASHER,FLAT(10)

7556035

Unavailable

12

BUSHING,RH,SWINGARM,HYBRID Substituted by 5433412

5432637

Unavailable

13

BOLT,SWINGARM PIVOT

5131697

$35.99

13

BOLT,SWINGARM PIVOT

5131697

$35.99

14

BUSHING,RH,SWINGARM PIVOT

5131696

Unavailable

15

SWING ARM ASM.HYBRID 16.85" Substituted by 1541583 (Incl. 9,12,28)

1541383

$357.14

16

DECAL"CHAIN FREE PLAY",HYB. Substituted by 7078572

7077618

Unavailable

17

GUARD,CHAIN,R.AXLE

5432854

$35.99

18

SCREW-FLANGED(10)

7515304

$5.59

19

Bushing

5332828

$9.59

20

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

21

NUT LOCK(10)

7542321

$1.49

22

NUT, LOCK,(10)

7542503

$10.39

23

WASHER(10)

7555883

$3.99

24

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

25

KIT, ATV HITCH Substituted by 2873036 (Incl. 22-26)

2200472

Unavailable

26

BOLT(10)

7512576

$7.99

27

BOLT(10)

7515438

$4.79

28

BUSHING,LH,SWINGARM,HYBRID Substituted by 5433411

5432636

Unavailable

29

BUSHING,LH,SWINGARM PIVOT

5131695

Unavailable
