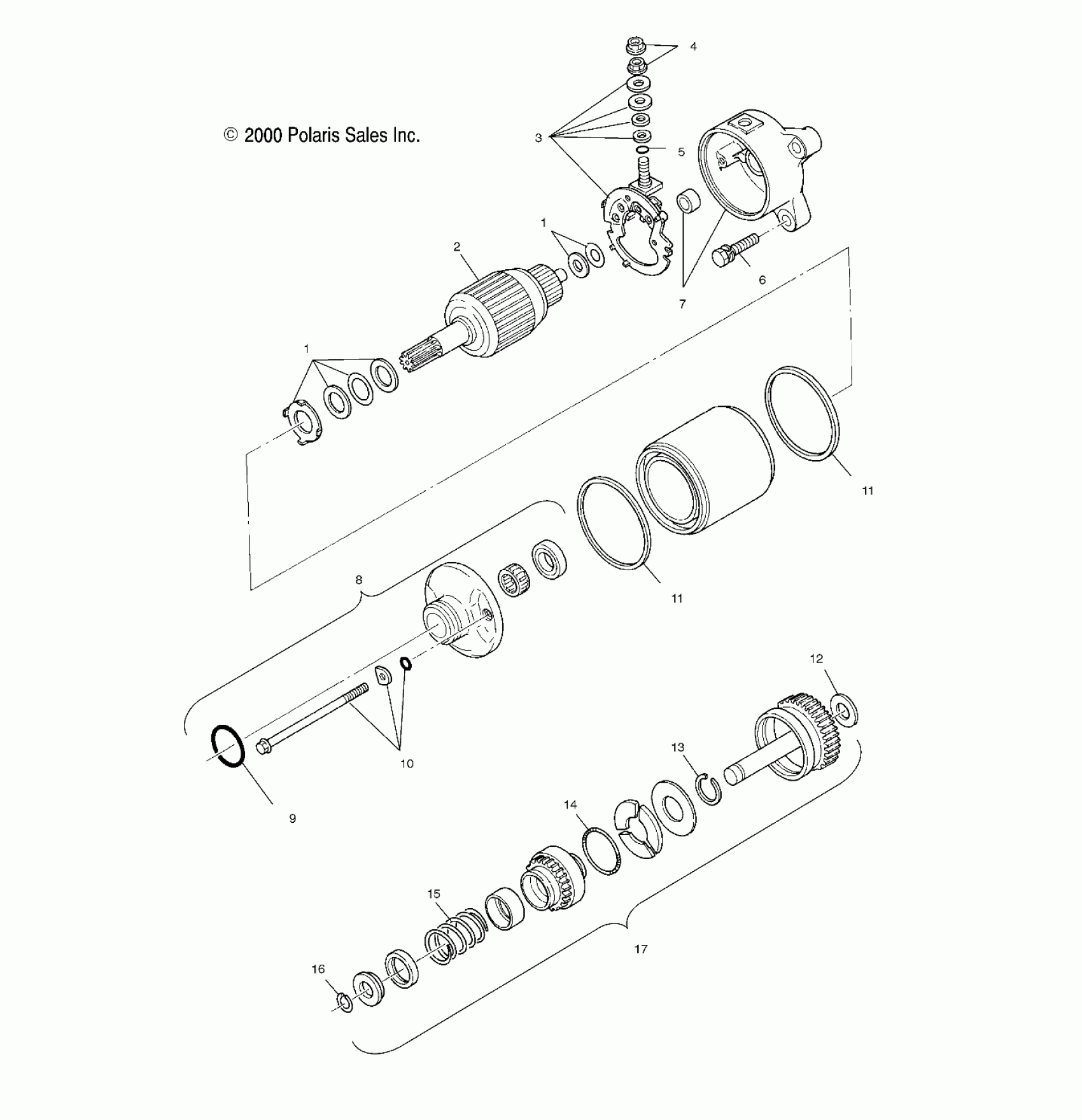

Polaris TRAIL BOSS - A00AA32AA STARTING MOTOR - A00AA32AA (4949914991D005) Diagram

#

Description
Price

-

MOTOR, STARTING * (Incl. 1-5,7-11)

3084981

$427.49

1

Washer Set

3084982

Unavailable

1

Washer Set

3084982

Unavailable

2

ARMATURE ASM.

3085353

Unavailable

3

BRUSH,COMPL.2-POLE *

3084406

$125.46

4

NUT, FLANGE(10)

3083649

$3.97

5

O-RING

3084408

Unavailable

6

BOLT&WASHER ASM.

3082038

$3.97

7

COVER,REAR,STARTER(MAGNUM)

3085034

$93.08

8

COVER,FRT,STARTER(MAGNUM) * (Incl. 9)

3085033

$145.70

9

O-Ring

3240114

$6.99

10

BOLT ASM, SET (Incl. 5)

3084983

$23.81

11

RING, RUBBER

3084405

Unavailable

11

RING, RUBBER

3084405

Unavailable

12

WASHER, GEARSHAFT Substituted by 7555908

3083737

$3.17

13

CLIP

3084412

$9.52

14

SPRING, WEIGHT

3084411

$15.56

15

SPRING, RETURN

3084410

Unavailable

16

CLIP

3084409

$7.14

17

SHAFT ASM,GEAR Substituted by 3087030 (Incl. 12-16)

3085394

$271.10
