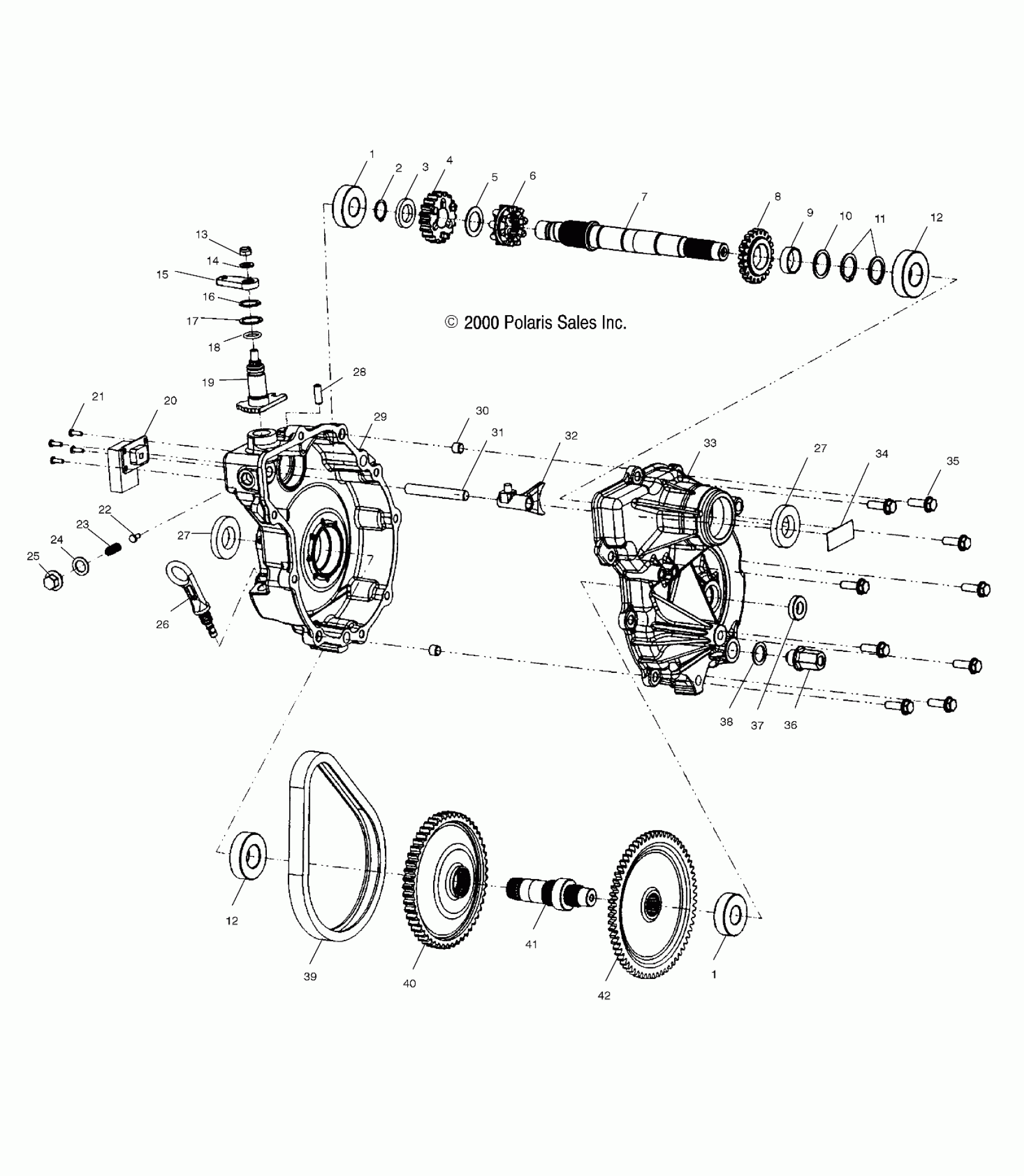

Polaris TRAIL BOSS - A00AA32AA GEARCASE - A00AA32AA (4949914991C007) Diagram

#

Description
Price

-

GEARCASE,HR,2X4,TRAIL BOSS (Incl. 1-42)

1341306

Unavailable

1

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

1

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

2

RING,RETAINING

3233177

$6.46

3

WASHER-THRUST

3233673

$13.75

4

SPROCKET-19T

3233674

$99.74

5

Washer

3233010

Unavailable

6

ENGAGEMENT DOG-HIGH/REV

3233675

$219.99

7

SHAFT INPUT,HYBRID

3233676

Unavailable

8

GEAR,21T

3233677

$198.32

9

Bushing

3233678

$39.99

10

Washer

3233105

$7.14

11

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

12

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

12

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

13

Nut

3233055

$3.32

14

Washer

3233054

$6.46

15

Bellcrank

3233547

$56.99

16

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

17

Washer

3233040

$9.52

18

O-Ring

3233548

$33.24

19

SHIFT-SHAFT

3233679

$175.74

20

SWITCH-H/R,ITW

3233635

$174.99

21

SCREW Substituted by 3233749

3233691

$5.65

22

BULLET-SHIFTING

3233680

$28.32

23

SPRING-COMPRESSION

3233681

$34.99

24

Washer

3233324

$8.54

25

PLUG,DETENT

3233682

$40.46

26

Dipstick

3233478

$28.32

27

Seal

3233248

$32.37

27

Seal

3233248

$32.37

28

TUBE,VENT

3233524

$9.99

29

GEARCASE-RH

3233683

Unavailable

30

PIPE,KNOCK

3233529

$10.99

31

SHAFT-SHIFT

3233684

Unavailable

32

SHIFT-FORK

3233685

Unavailable

33

GEARCASE-LH

3233686

$432.24

34

DECAL-SWITCH

3233636

Unavailable

35

Screw

3233252

$5.69

36

PLUG,TORQUE STOP

3233687

Unavailable

37

BUSHING,PIVOT

3233527

$39.99

38

Washer

3233035

Unavailable

39

CHAIN,SILENT,60P

3233111

$90.24

40

SPROCKET-51T

3233688

Unavailable

41

OUTPUT-SHAFT

3233689

$198.32

42

GEAR,64T

3233690

Unavailable
