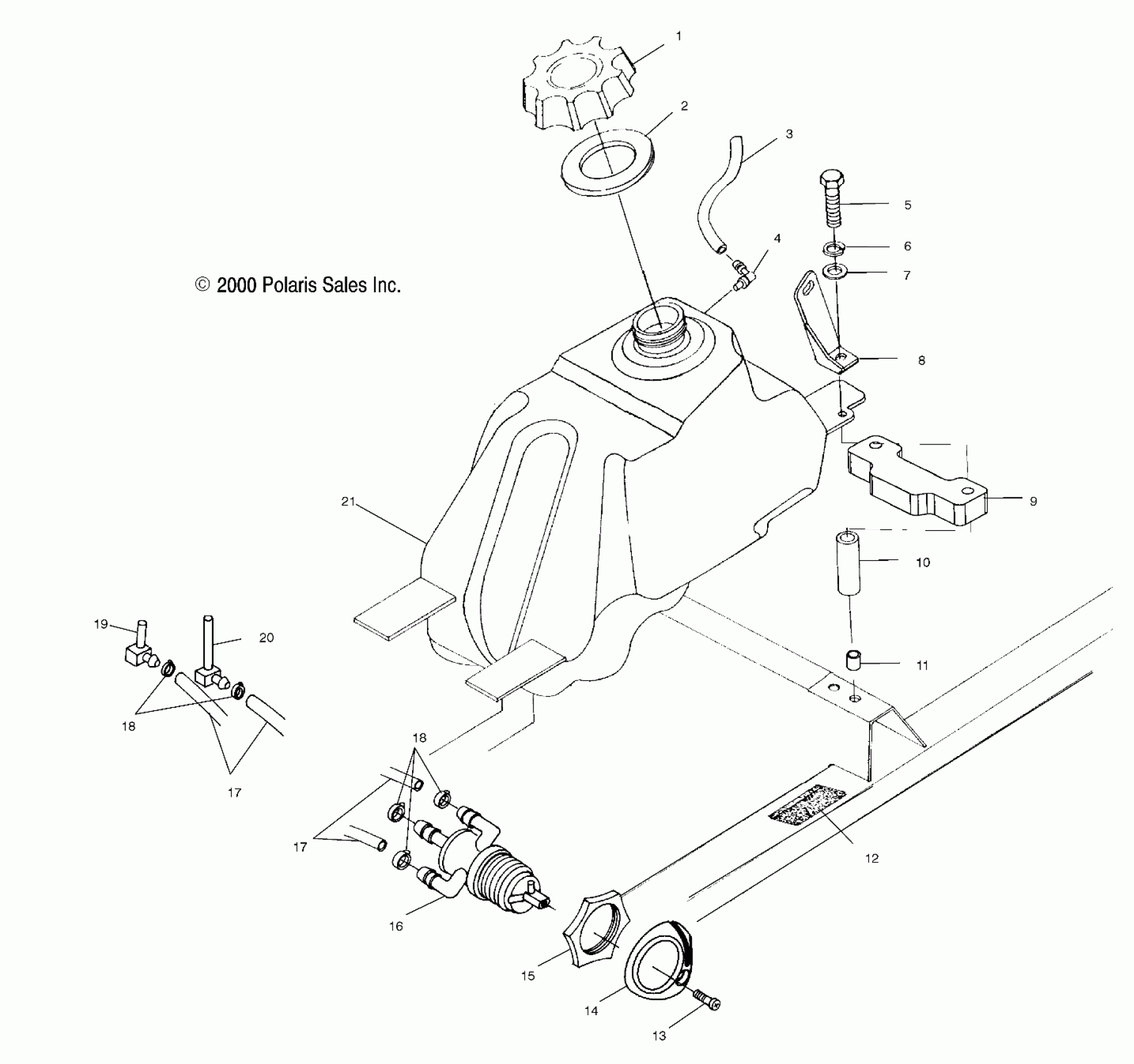

Polaris TRAIL BOSS - A00AA32AA FUEL TANK - A00AA32AA (4949914991A013) Diagram

#

Description
Price

1

CAP, GAS, (BLACK)

5430725

$24.27

2

GASKET-GAS CAP

5810144

$5.59

3

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

4

Vent, Tank

5431053

$19.99

5

BOLT(10)

7512249

Unavailable

6

LOCK WASHER(10)

7552801

$1.59

7

WASHER, FLAT(10)

7555859

$1.49

8

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

8

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

9

SEAL,FOAM 2" THK

5811951

$32.37

10

Tube

5333809

Unavailable

11

NUTSERT,HEX(10)

7547069

$3.99

12

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

13

SCREW(10)

7517505

$1.59

14

KNOB,FUEL VALVE CONTOURED,ATV

5433431

Unavailable

15

NUT,FUELVALVE,ATV

5432733

Unavailable

16

VALVE,3-WAY,HORIZ PORTS

7052154

$39.99

17

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

17

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

19

FITTING,FUEL OUT,90DEG,RES,Z

7052148

Unavailable

20

ELBOW, MAIN

7052147

Unavailable

21

TANK,FUEL ASM. Substituted by 2520233 (Incl. 4,19,20)

2520164

Unavailable
