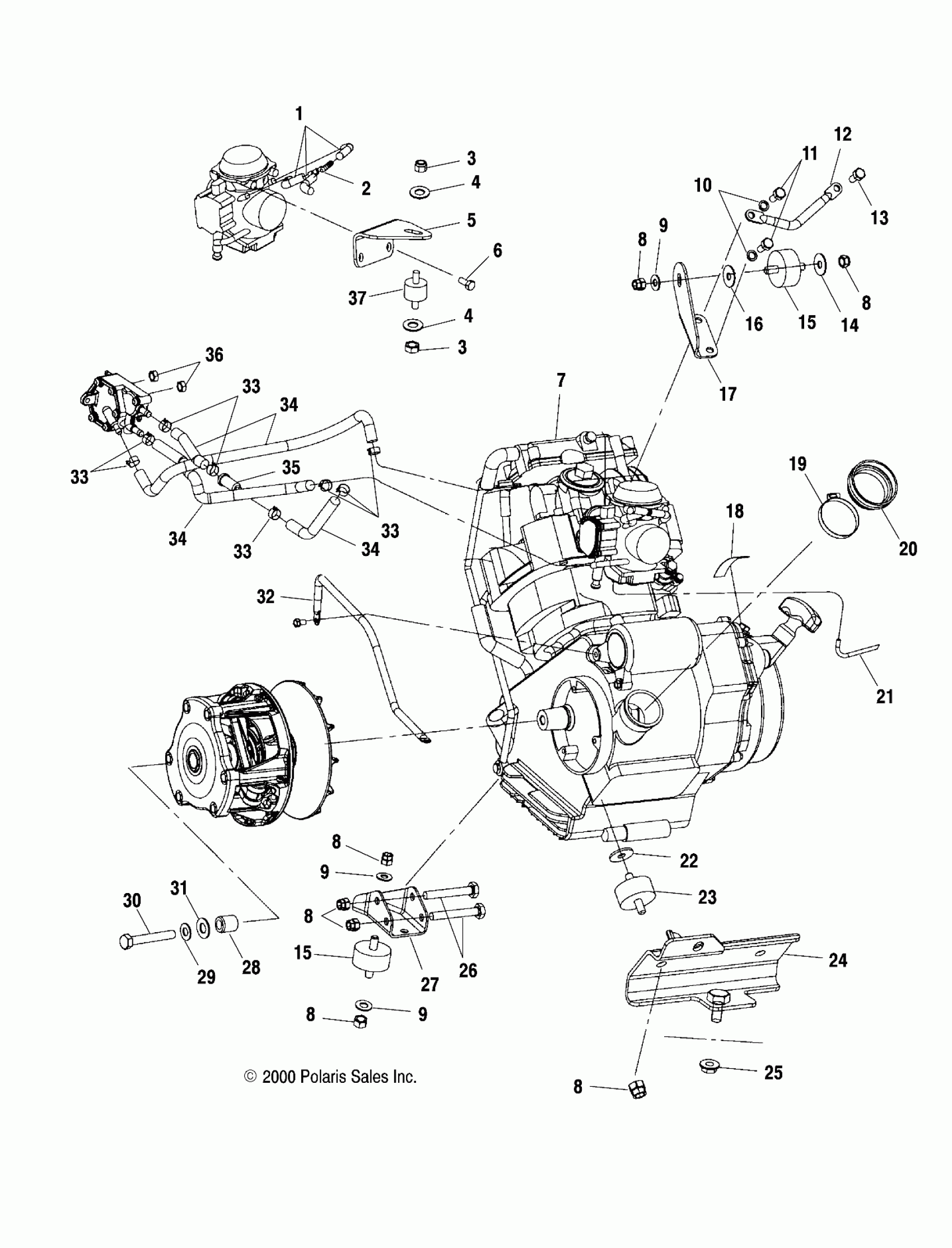

Polaris TRAIL BOSS - A00AA32AA ENGINE MOUNTING - A00AA32AA (4949914991A009) Diagram

#

Description
Price

1

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

2

FITTING, TEE

7052075

$9.59

3

NUT-LOCK(10)

7542122

$1.49

3

NUT-LOCK(10)

7542122

$1.49

4

WASHER(10)

7558301

$1.49

4

WASHER(10)

7558301

$1.49

5

BRKT,CARB,MOUNT,BLK

5243747-067

Unavailable

6

SCREW & WASHER(10)

3084205

$3.99

7

ENG.ES32PFE Substituted by 3087021 The Short Block assembly contains a crankcase asm., cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warran

3085823

Unavailable

8

NUT LOCK(10)

7542403

$3.99

8

NUT LOCK(10)

7542403

$3.99

8

NUT LOCK(10)

7542403

$3.99

8

NUT LOCK(10)

7542403

$3.99

8

NUT LOCK(10)

7542403

$3.99

8

NUT LOCK(10)

7542403

$3.99

9

WASHER(10)

7555806

$1.49

9

WASHER(10)

7555806

$1.49

9

WASHER(10)

7555806

$1.49

10

LOCK WASHER(10)

7552901

$1.49

11

BOLT(10)

7512315

$4.79

12

CABLE,GND-ENGINE

4010132

Unavailable

13

BOLT(10)

7512232

$1.49

14

WASHER(10)

7555823

$3.99

15

MOUNT,RUBBER,ENGINE,45 DURO

3021181

Unavailable

15

MOUNT,RUBBER,ENGINE,45 DURO

3021181

Unavailable

16

INSULATOR,MOTOR MT.

5430802

$27.99

17

BRKT,ENGINE MOUNT,TOP,325,BLK

5243307-067

Unavailable

18

DECAL,DRAIN RECOIL Substituted by 7078577

7075741

Unavailable

19

CLAMP, NARROW BAND(10)

7080511

$4.79

20

BOOT-CLUTCH INTAKE

5411721

Unavailable

21

DESC NOT_AVAILABLE

8360009-100

Unavailable

22

WASHER, FLAT(10)

7555815

$3.99

23

MOUNT,RUBBER,FRONT

3110046

Unavailable

24

MOUNT,ENGINE,REAR,325,BLK.

1012882-067

Unavailable

25

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

26

BOLT(10)

7515417

$4.79

27

MOUNT-LOWER FRONT 325,BLK

5243288-067

Unavailable

28

BUSHING-.437 X.770 X.50

5430261

$7.19

29

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

30

BOLT(10)

7512566

$30.79

31

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

32

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

33

HOSE CLAMP, RED

7080003

$1.49

33

HOSE CLAMP, RED

7080003

$1.49

33

HOSE CLAMP, RED

7080003

$1.49

33

HOSE CLAMP, RED

7080003

$1.49

34

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

34

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

34

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

35

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

36

NUT-M5X.8,HX NYL-Y

7546601

$1.49

37

MOUNT,CARB.

3110050

$12.99
