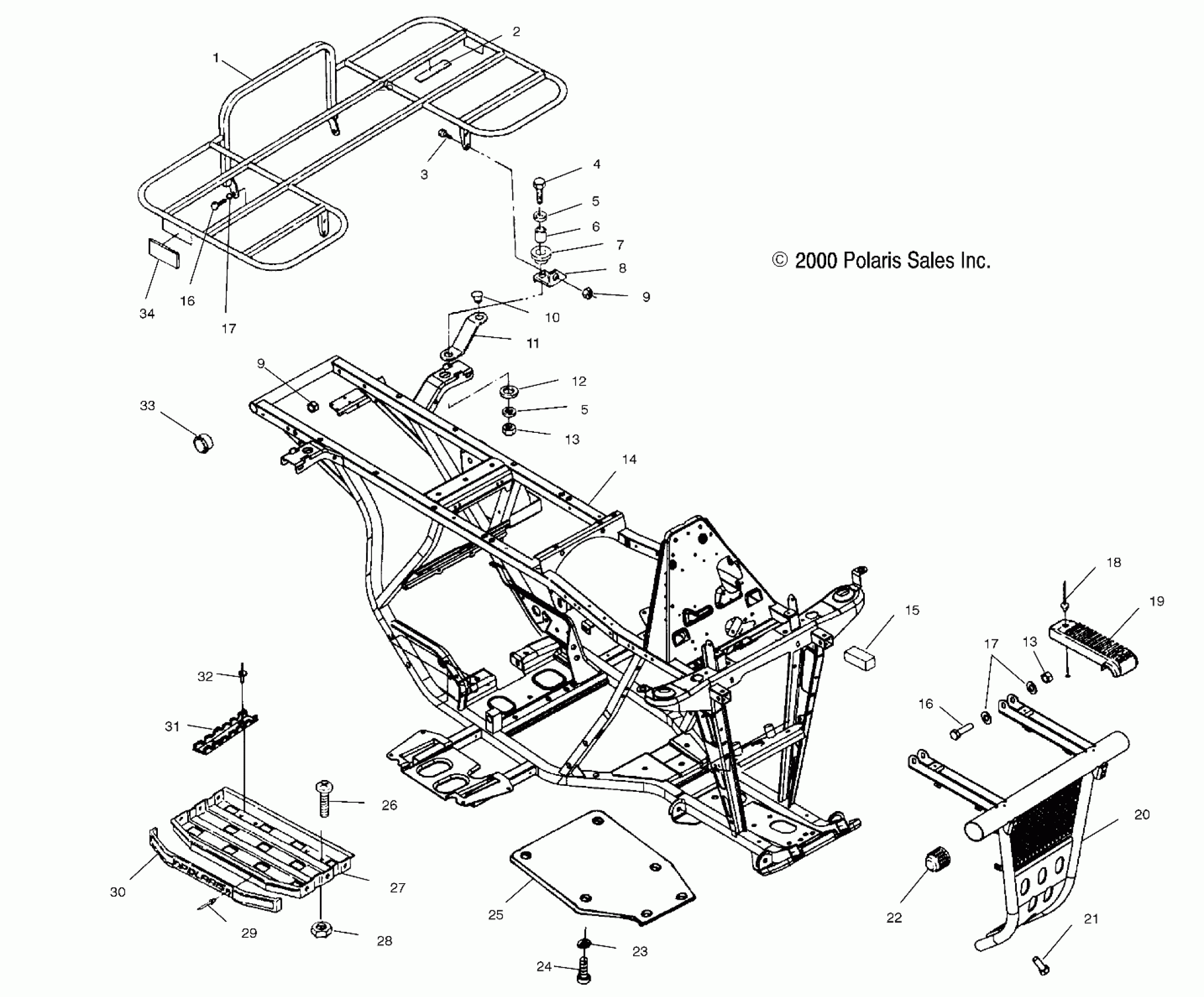

Polaris TRAIL BOSS - A00AA32AA BUMPER and RACK MOUNTING - A00AA32AA (4949914991A007) Diagram

#

Description
Price

1

RACK,REAR

1012876-067

Unavailable

2

PAD,RACK MOUNT

5810455

$3.22

3

BOLT,5/16-18X3/4

7512371

$4.76

4

SCREW-FLANGED(10)

7515304

$5.56

5

WASHER(10)

7555716

$1.59

5

WASHER(10)

7555716

$1.59

6

BUSHING-RES. MT.

5010192

$6.35

7

DAMPENER

5410241

$5.22

8

BRKT,SUPPORT RACK,RH,BLK

5243469-067

Unavailable

8

BRKT,SUPPORT RACK,LH,BLK

5243468-067

Unavailable

9

NUT LOCK(10)

7542321

$1.19

9

NUT LOCK(10)

7542321

$1.19

10

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

11

SUPPORT,R.FENDER

5220902-067

$48.40

12

WASHER,RUBBER

5410436

$1.59

13

NUT-5/16-18 NYLOK-Y

7542324

$0.79

13

NUT-5/16-18 NYLOK-Y

7542324

$0.79

14

FRAME,MAIN,T.BOSS 325

1013195-067

Unavailable

15

PLUG, FRAME

5810467

Unavailable

16

BOLT(10)

7512329

$3.97

16

BOLT(10)

7512329

$3.97

17

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

17

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

18

RIVET(50)

7621229

Unavailable

19

COVER,BRKT,BUMPER MT.

5431023

$10.63

20

BUMPER,GEN2,TBOSS,BLK

1012811-067

Unavailable

21

SCREW(10)

7515399

$1.19

22

CAP,BUMPER,FR,POR.RED

5431013-136

Unavailable

23

WASHER, FLAT(10)

7555859

$1.19

24

SCREW(10)

7515179

$2.38

25

GUARD,ROCK

5432763

$109.99

26

BOLT, BLACK(10)

7512282

Unavailable

27

FOOTPAD,CDS,STEEL,BLK

1013249-067

$63.79

28

NUT-LOCK(10)

7542122

$1.19

29

RIVET,(50)

7661825

$0.63

30

Trim, Footrest

5431484

Unavailable

31

BRKT,HEEL CLEAT,BLK

5242525-067

$16.35

32

RIVET(50)

7621472

$1.49

33

PLUG,ENDCAP,RIBBED

5432831

$5.65

34

REFLECTOR ASM,RED

2670133

$5.71
