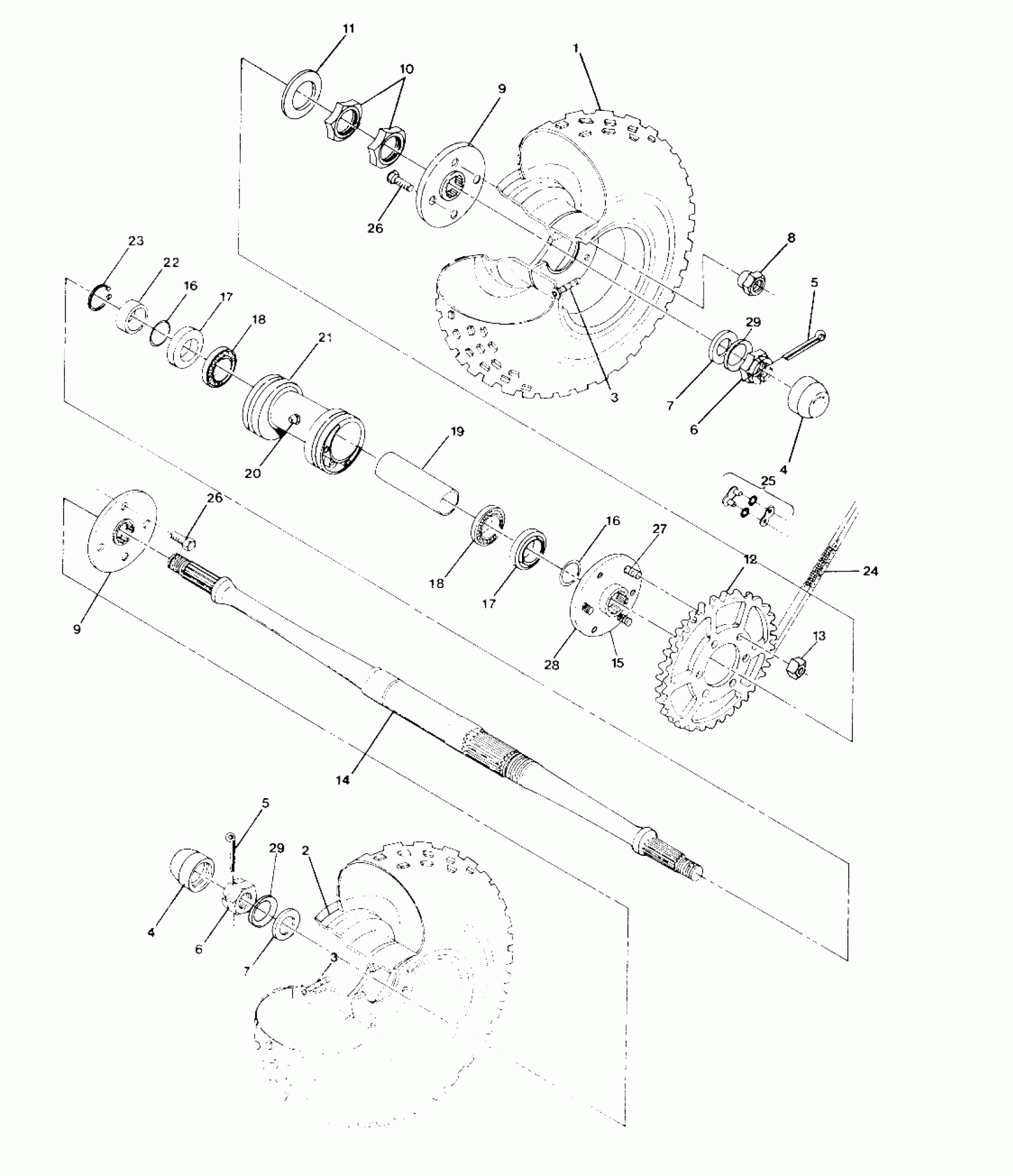

Polaris TRAIL BOSS 4X4 - W928127 REAR WHEEL DRIVE ASSEMBLY 250 4x4 / W928127 (4922872287B011) Diagram

#

Description
Price

1

TIRE,R(24X11-10)

5410479

Unavailable

2

RIM,REAR, WELD. (Silver)

1520114

Unavailable

3

VALVE-RIM

1525017

$6.46

3

VALVE-RIM

1525017

$6.46

4

COVER,DUST,HUB Substituted by 5411164

5410404

$28.32

4

COVER,DUST,HUB Substituted by 5411164

5410404

$28.32

5

PIN, COTTER(10)

7661404

$4.76

5

PIN, COTTER(10)

7661404

$4.76

6

NUT, CASTLE(10)

7543005

Unavailable

6

NUT, CASTLE(10)

7543005

Unavailable

7

WASHER(10)

7555745

Unavailable

7

WASHER(10)

7555745

Unavailable

8

NUT, WHEEL(10)

7542714

$1.59

9

HUB, WHEEL Substituted by 2200341

5130767

$93.08

9

HUB, WHEEL Substituted by 2200341

5130767

$93.08

10

Nut, Jam

5020468

Unavailable

11

WASHER(10)

7555764

Unavailable

12

SPROCKET, 42T Substituted by 3222070

3223009

Unavailable

13

NUT LOCK(10)

7542403

Unavailable

14

AXLE, REAR

5020504

$239.99

15

SPROCKET HUB ASM. (Incl. 27, 28)

1520170

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

17

SEAL, REAR AXLE

3610013

Unavailable

17

SEAL, REAR AXLE

3610013

Unavailable

18

Bearing, Ball

3515501

$27.78

18

Bearing, Ball

3515501

$27.78

19

TUBE,BEARING SPACER

5010204

Unavailable

20

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

21

HOUSING, AXLE

5130663

Unavailable

22

SPACER,BEARING

5010206

Unavailable

23

RING, SNAP(10)

7710405

$4.76

24

CHAIN,DRIVE, 88P Substituted by 3224056-088

3224042

$145.70

25

CONNECTOR LINK

3225024

$24.27

26

BOLT, WHEEL(10)

7512673

$3.17

26

BOLT, WHEEL(10)

7512673

$3.17

27

STUD(10)

7515513

$1.19

28

SPROCKET HUB ASM.

1520170

Unavailable

29

WASHER, CONE(10)

7555796

$7.94

29

WASHER, CONE(10)

7555796

$7.94
